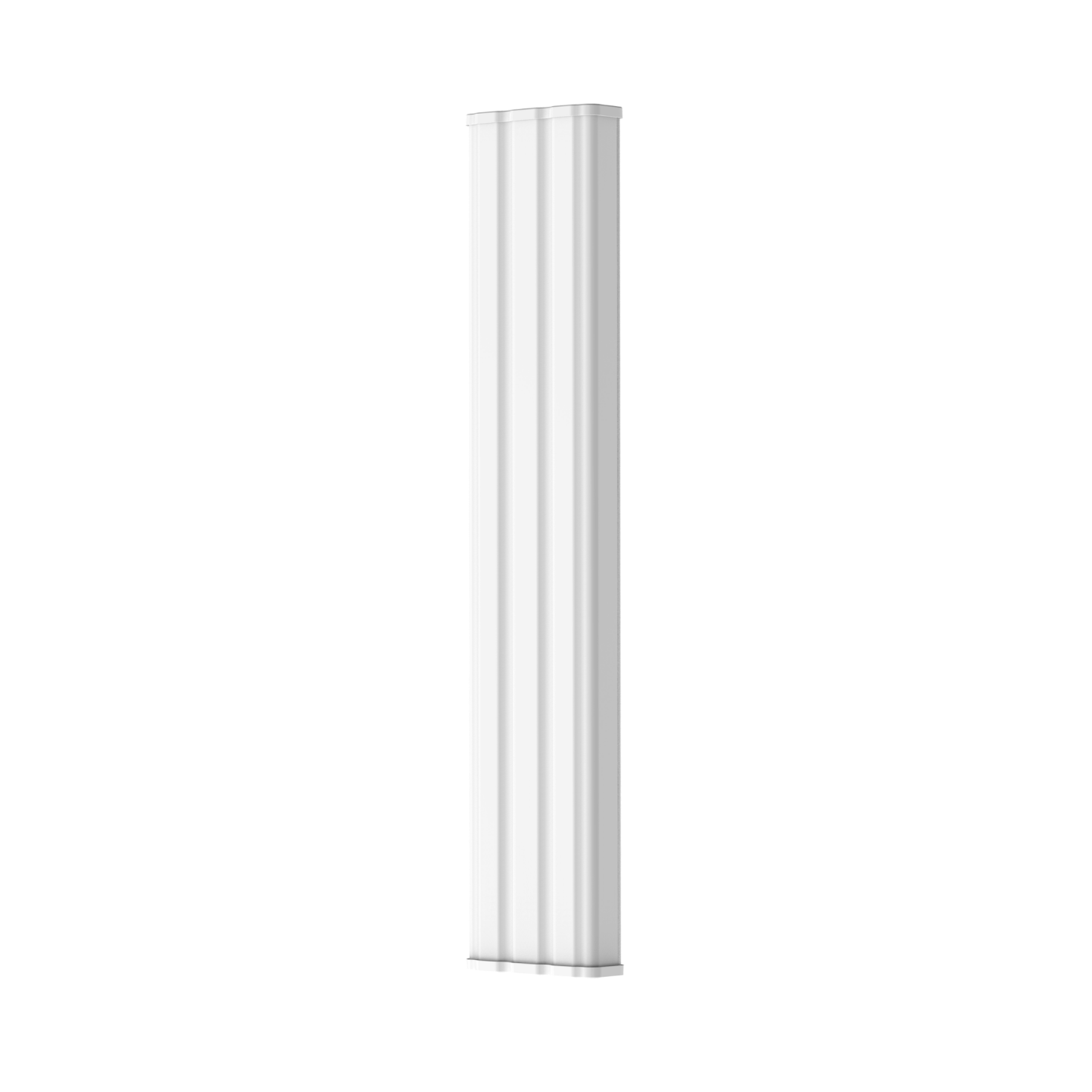

Ruijie Reyee RG-ANT20S-90, 90° Sector Antenna of RG-AirMetro Series Wireless Bridges

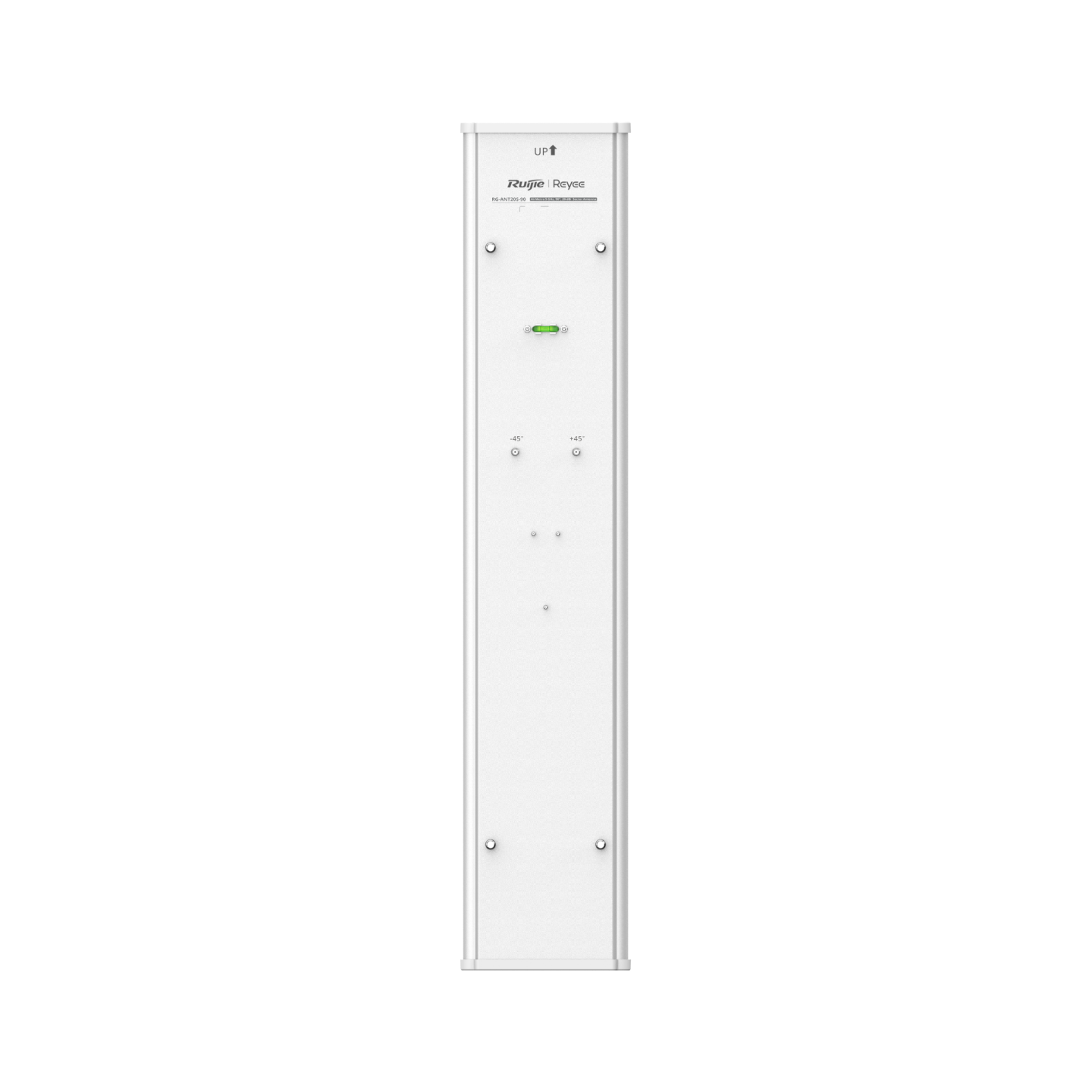

Ruijie Reyee RG-ANT20S-90, 90° Sector Antenna of RG-AirMetro Series Wireless Bridges - Image 2

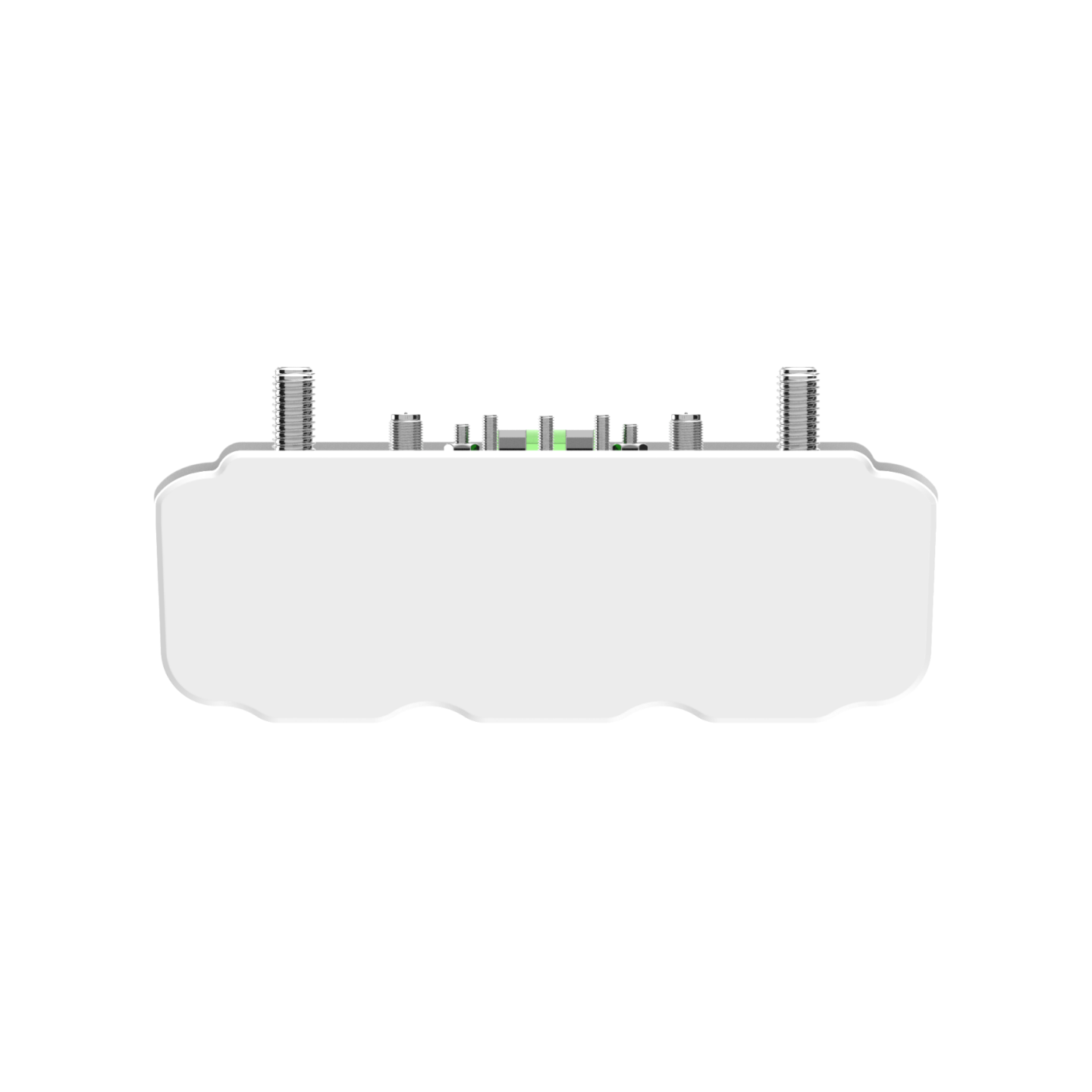

Ruijie Reyee RG-ANT20S-90, 90° Sector Antenna of RG-AirMetro Series Wireless Bridges - Image 3
, ,

Ruijie Reyee RG-ANT20S-90, 90° Sector Antenna of RG-AirMetro Series Wireless Bridges

Compare

A supporting Sector external antenna product for an outdoor wireless bridge base station, with 5GHz dual-stream 2×2 two-space stream technology, antenna gain is 20dBi, antenna horizontal angle is 90 °, vertical angle is 7°, it can be used with the bridge base station RG-AirMetro550G-B, recommended for PTMP scenarios with a distance of less than 10KM.

$125.00

Sector Antenna Hardware & Environmental Specifications

Specification Details
Model RG-ANT20S-90
Antenna Type 5 GHz 2×2 MIMO Sector Antenna
Antenna Gain 20 dBi
Horizontal Beamwidth 90°
Vertical Beamwidth 7°
Product Dimensions (W x D x H) 139.9 mm x 48.9 mm x 694 mm (5.51″ x 1.93″ x 27.32″) (excluding bracket)
Operating Temperature –40°C to +80°C (–40°F to +176°F)
Operating Humidity 5% RH to 95% RH (non-condensing)
IP Rating IP55 (Weatherproof outdoor enclosure)
MTBF 400,000 hours (~45 years)
Primary Application Long-range Point-to-Multipoint (PtMP) wireless coverage paired with RG-AirMetro550G-B base stations
SKU: RG-ANT20S-90 Categories: , ,
