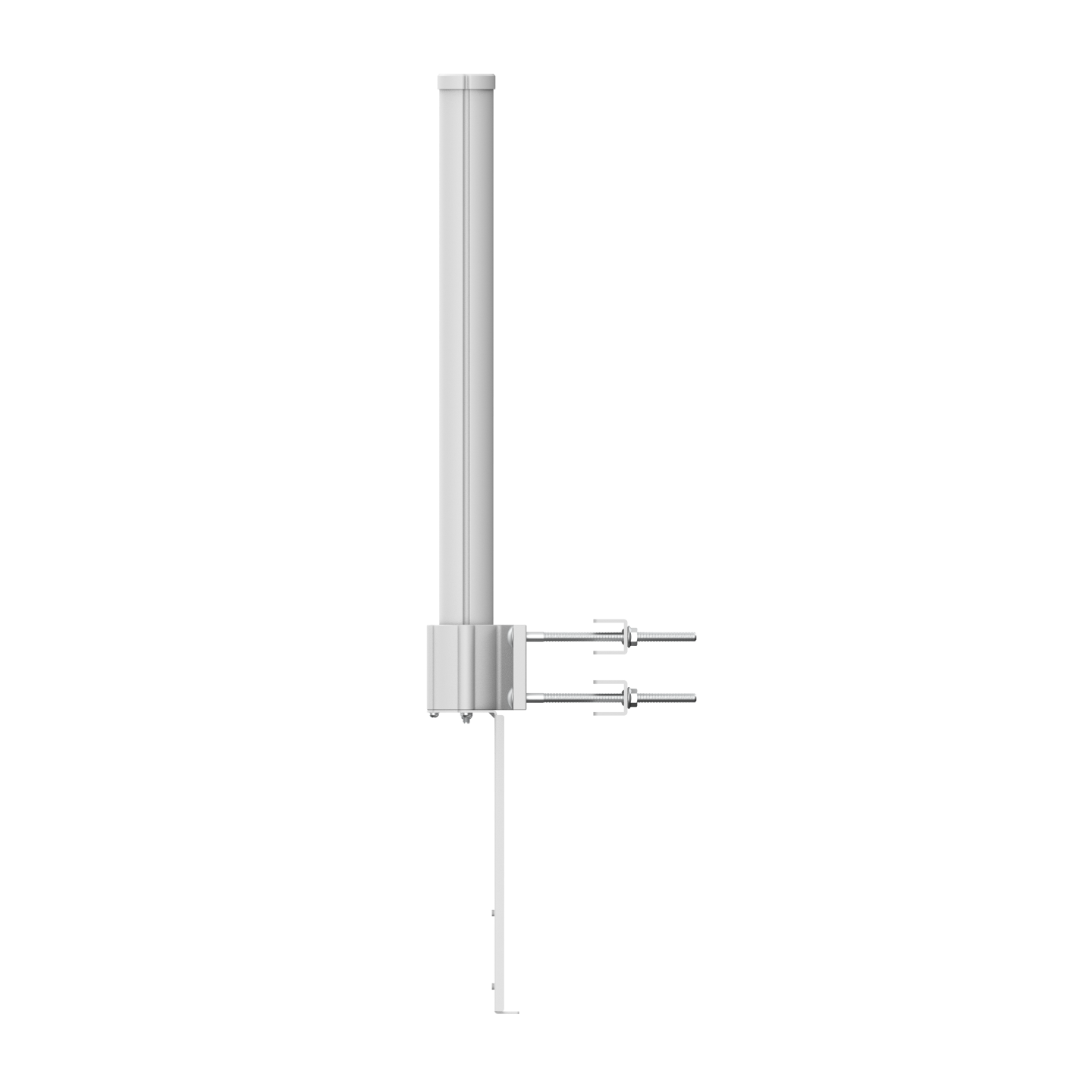

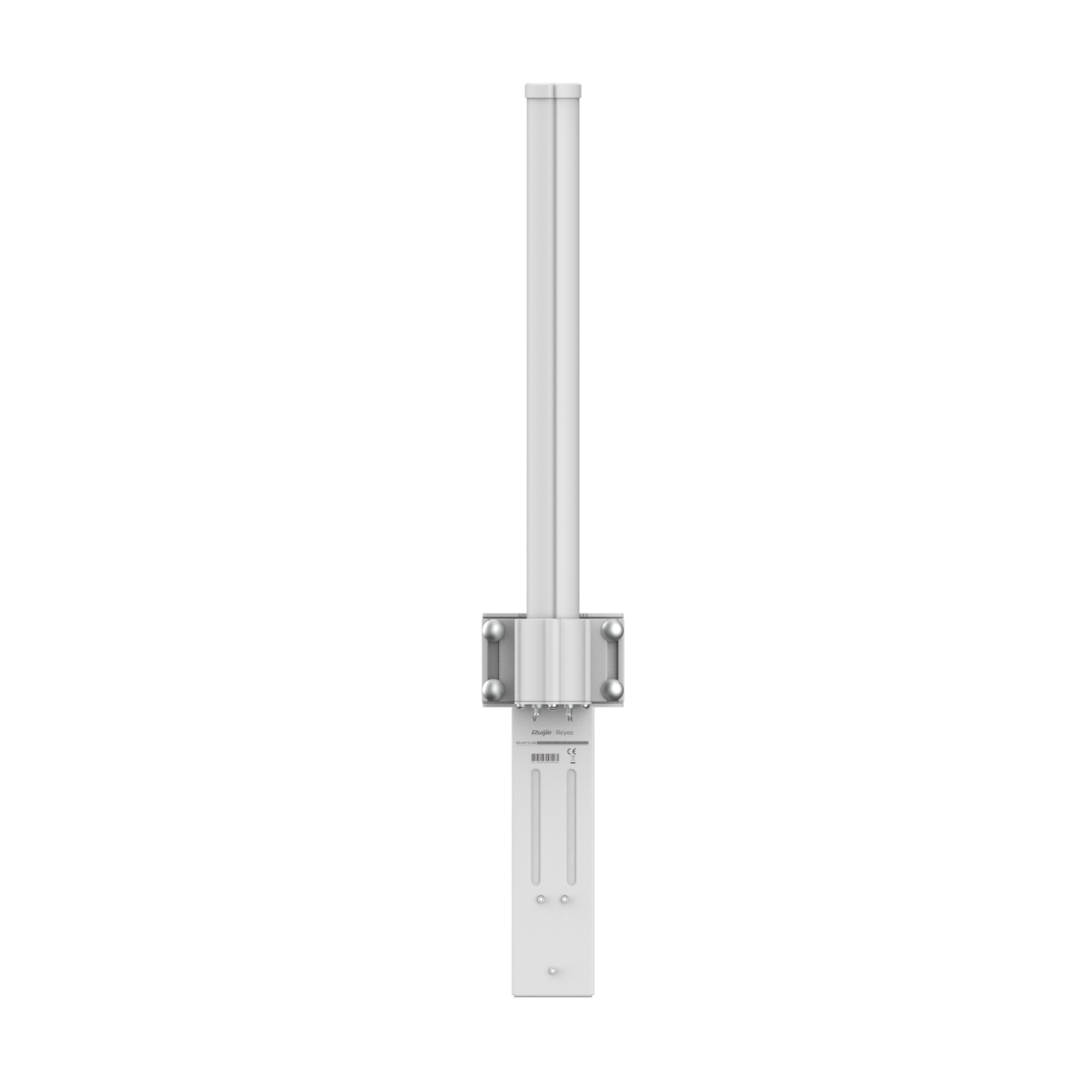

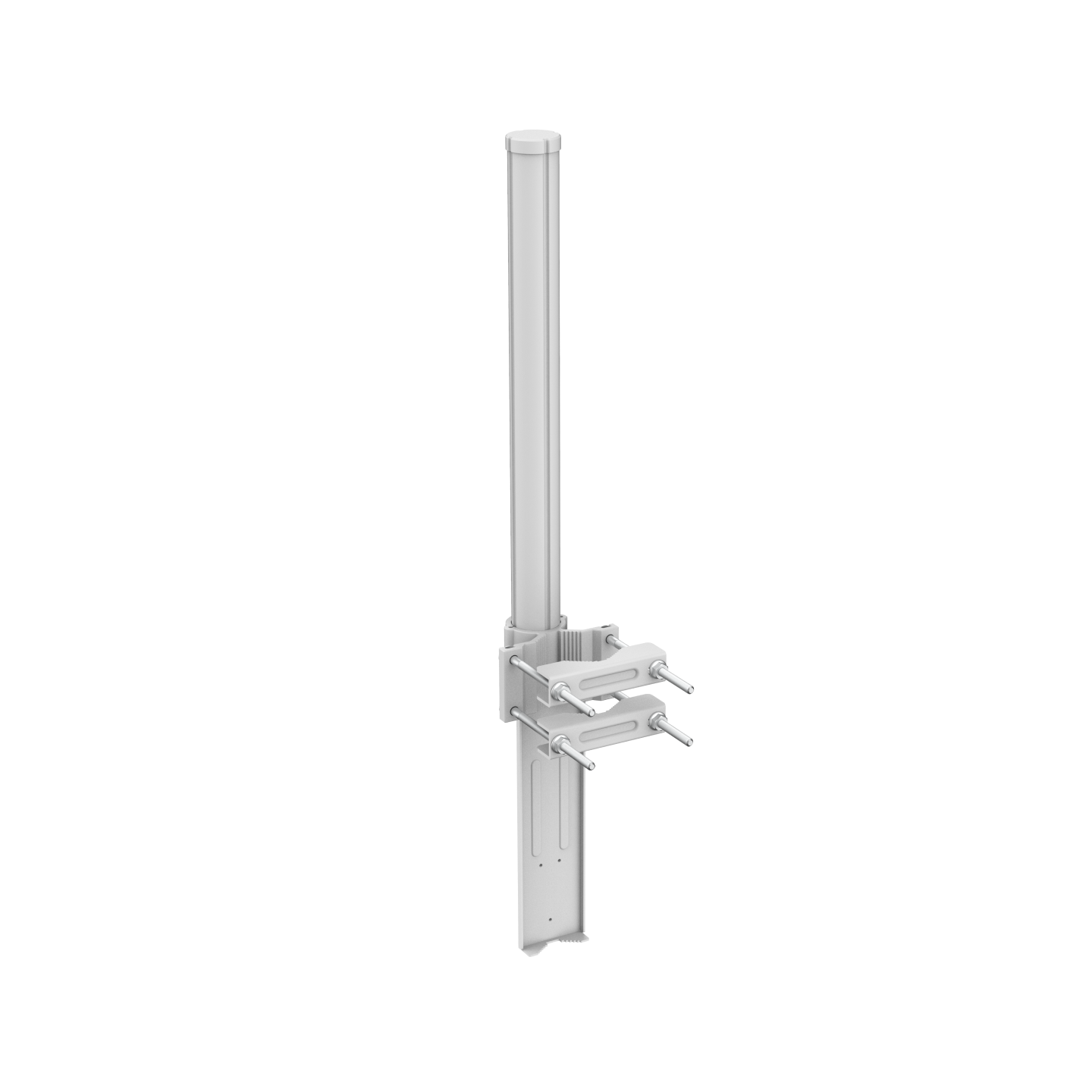

Ruijie Reyee RG-ANT13-360, 360° Omnidirectional Antenna of RG-AirMetro Series Wireless Bridges

Name: Ruijie Reyee RG-ANT13-360, 360° Omnidirectional Antenna of RG-AirMetro Series Wireless Bridges
SKU: RG-ANT13-360
Price: 175.00 USD
Availability: InStock

Compare

A supporting Omnidirectional external antenna product for an outdoor wireless bridge base station, with 5GHz dual-stream 2×2 two-space stream technology, antenna gain is 13dBi, antenna horizontal angle is 360 °, vertical angle is 7 °, it can be used with the bridge base station RG-AirMetro550G-B, recommended for PTMP scenarios with a distance of less than 2KM.

$175.00

Description

Antenna Hardware & Environmental Specifications

Specification	Details
Model	RG-ANT13-360
Antenna Type	5 GHz 2×2 Omnidirectional Antenna
Antenna Gain	13 dBi
Horizontal Orientation	360°
Vertical Orientation	7°
Product Dimensions (W x D x H)	120 mm x 82 mm x 769 mm (4.72″ x 3.23″ x 30.28″) (excluding bracket)
Operating Temperature	–40°C to +80°C (–40°F to +176°F)
Operating Humidity	5% RH to 95% RH (non-condensing)
IP Rating	IP55
MTBF	400,000 hours (~45 years)
