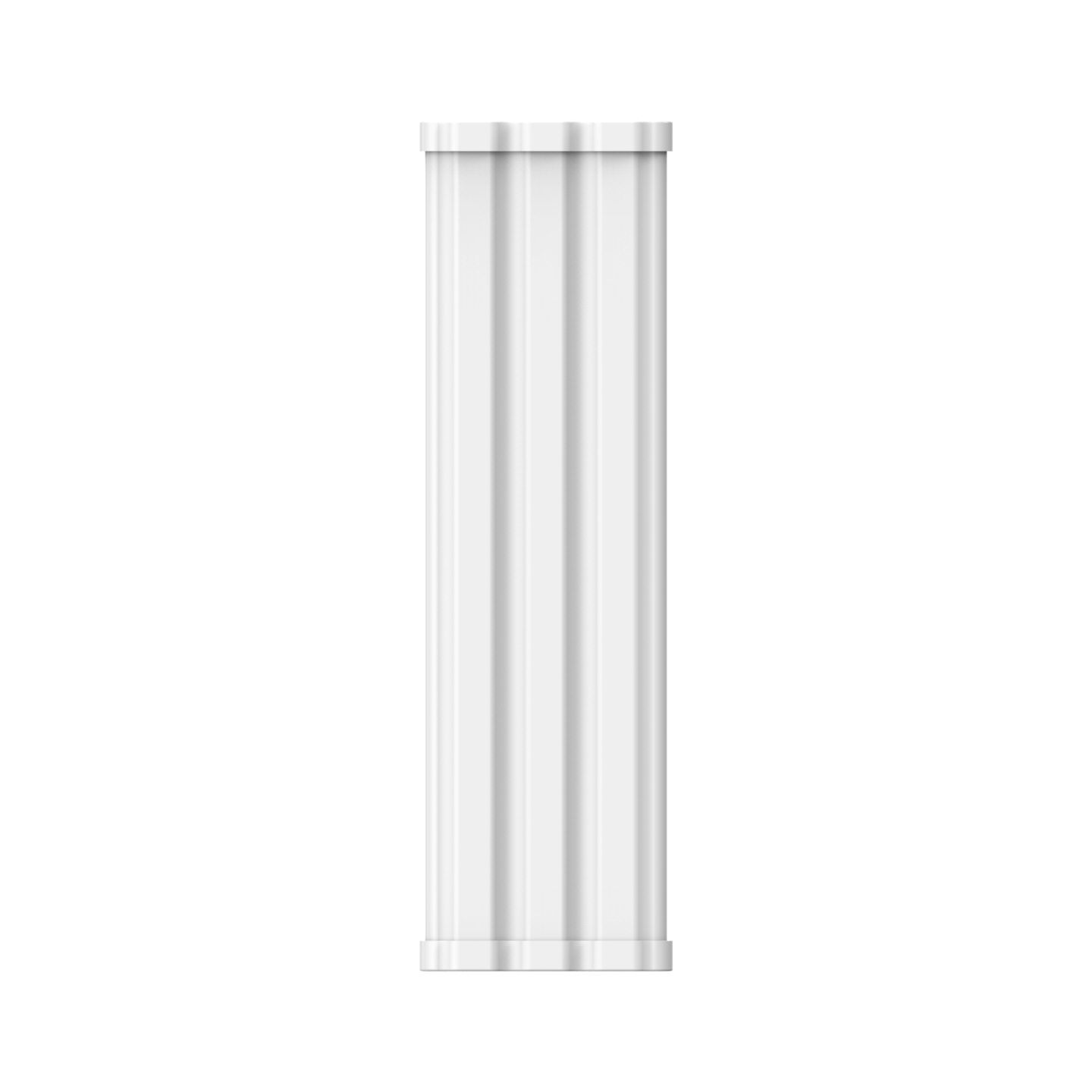

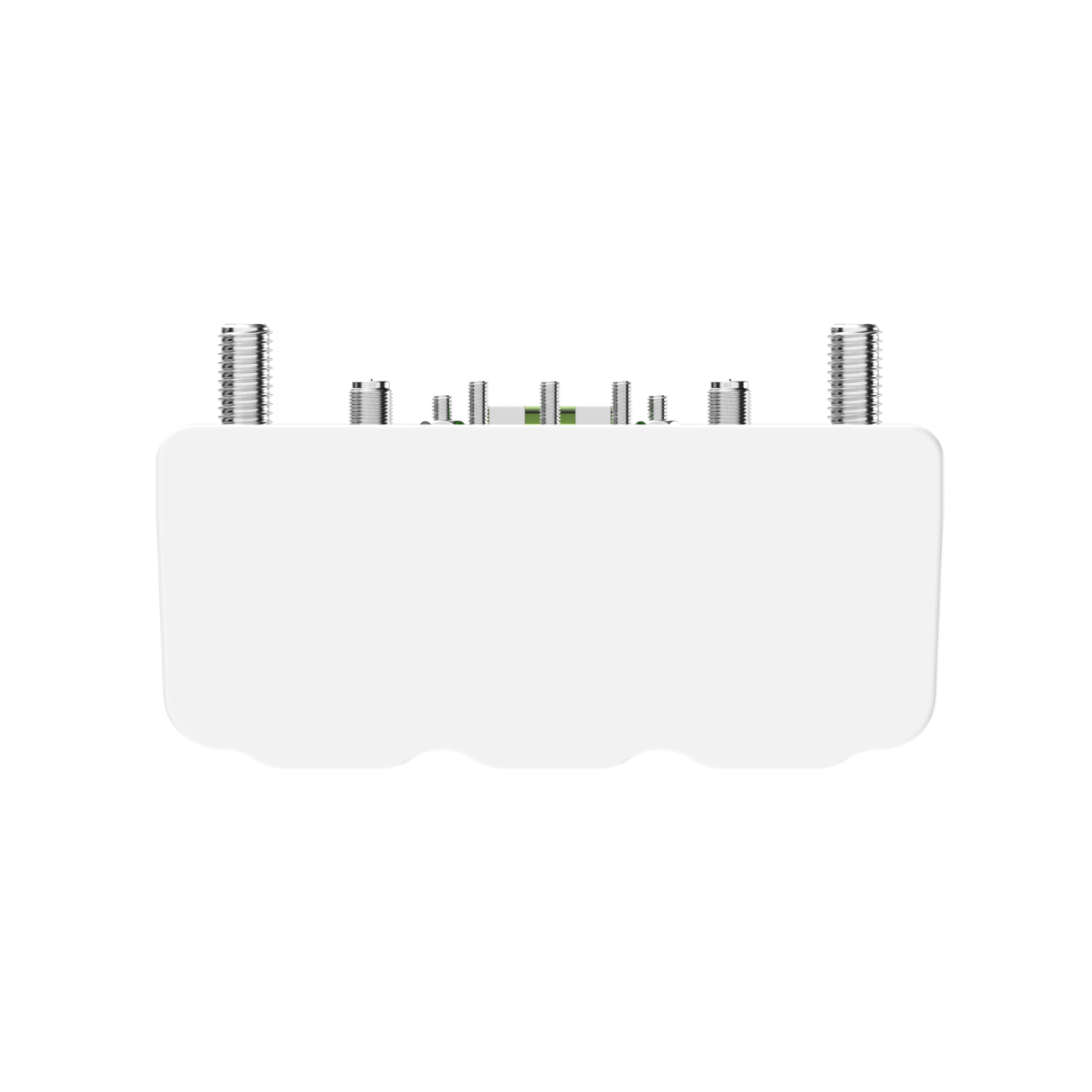

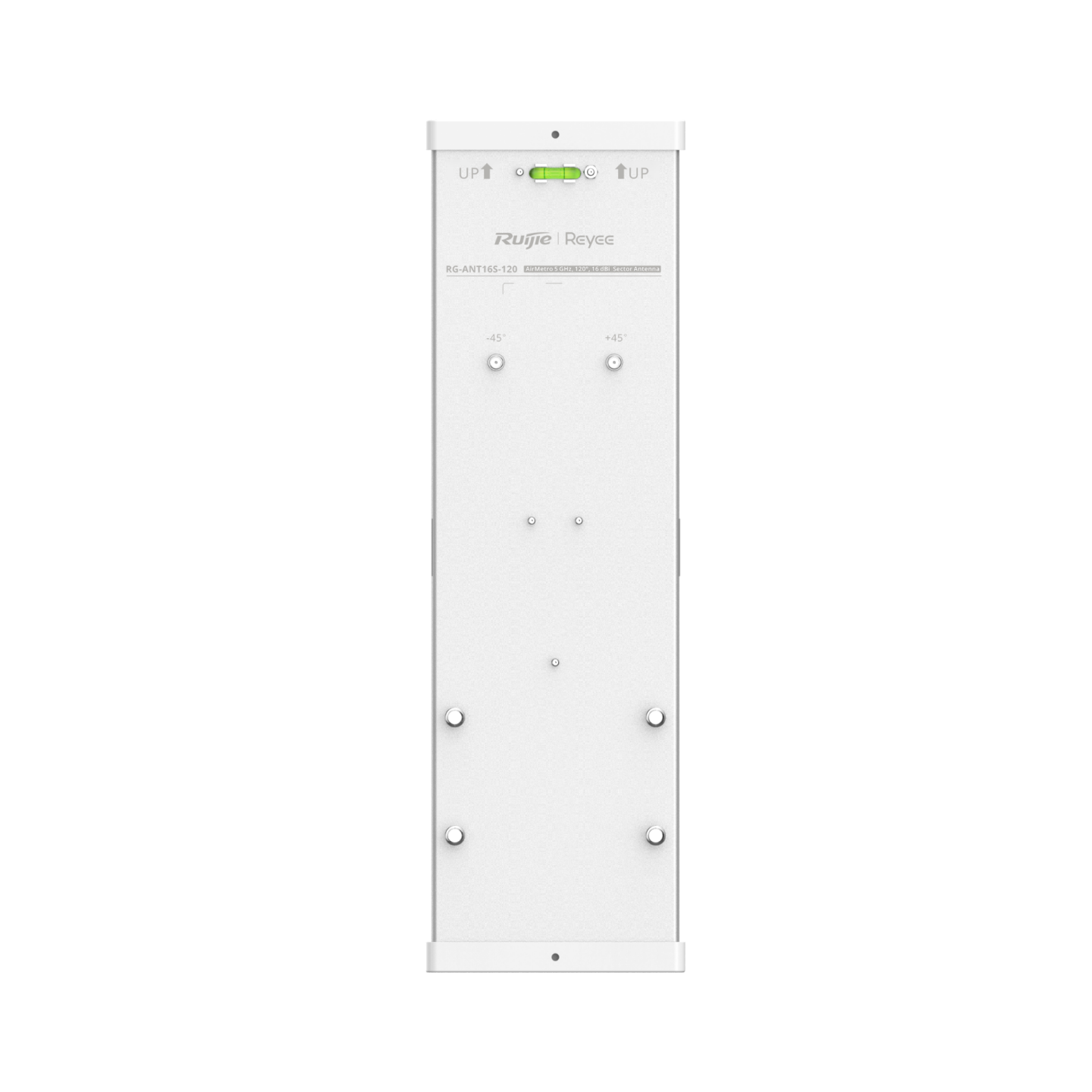

Ruijie Reyee RG-ANT16S-120, 120° Sector Antenna of RG-AirMetro Series Wireless Bridges
A supporting Sector external antenna product for an outdoor wireless bridge base station, with 5GHz dual-stream 2×2 two-space stream technology, antenna gain is 16dBi, antenna horizontal angle is 120 °, vertical angle is 10°, it can be used with the bridge base station RG-AirMetro550G-B, recommended for PTMP scenarios with a distance of less than 5KM.
$90.00
Sector Antenna Hardware & Environmental Specifications
| Specification | Details |
| Model | RG-ANT16S-120 |
| Antenna Type | 5 GHz 2×2 MIMO Sector Antenna |
| Antenna Gain | 16 dBi |
| Horizontal Beamwidth | 120° |
| Vertical Beamwidth | 10° |
| Product Dimensions (W x D x H) | 110 mm x 48.5 mm x 361 mm (4.33″ x 1.91″ x 14.21″) (excluding bracket) |
| Operating Temperature | –40°C to +80°C (–40°F to +176°F) |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
| IP Rating | IP55 (Weatherproof outdoor enclosure) |
| MTBF | 400,000 hours (~45 years) |
| Primary Application | Point-to-Multipoint (PtMP) deployments paired with RG-AirMetro550G-B base stations |
