Outdoor AP, Ruijie Reyees Products, SMB

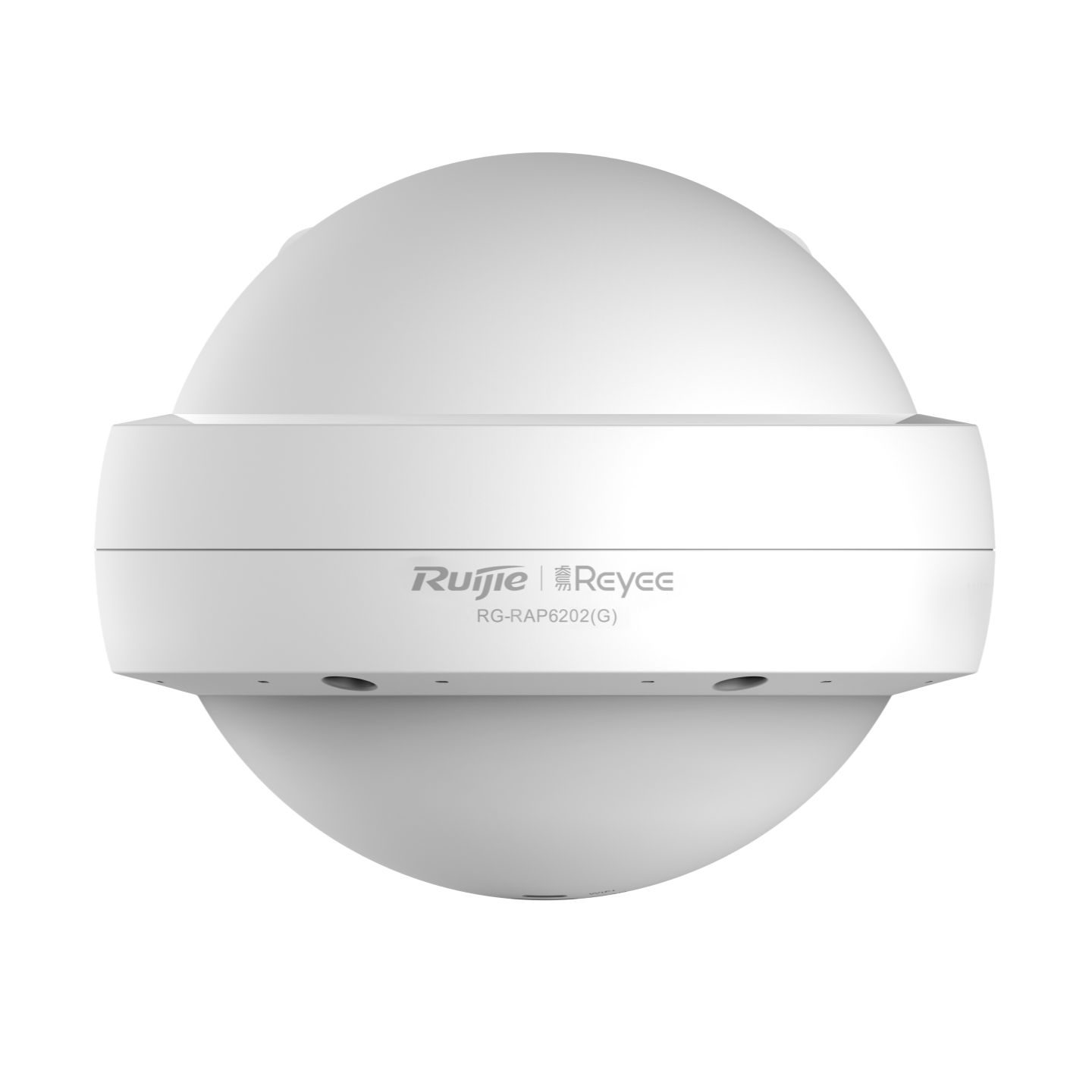

ruijie reyee RG-RAP6202(G) Wi-Fi 5 AC1300 Outdoor Omni-directional Access Point
AC1300 Dual Band Outdoor Access Point, IP68 waterproof, 867Mbps at 5GHz + 400Mbps at 2.4GHz, 2 10/100/1000base-t Ethernet uplink port, Internal omnidirectional antennas，support 802.11a/b/g/n/ac;802.3at/af PoE Local power supply, DC 12V/1.5A
$162.62
| Product Information | Details |
| Product Type | Outdoor AP |
| 📋 Hardware Specifications | |
| 📡 Wi-Fi Radio | |
| Radio design |
Dual-radio, 4 spatial streams ● 2.4 GHz: 2 x 2, MIMO ● 5 GHz: 2 x 2, MIMO |
| Maximum wireless data rate | 1266 Mbps |
| 6 GHz wireless data rate | No |
| 5 GHz wireless data rate | 866 Mbps |
| 2.4 GHz wireless data rate | 400 Mbps |
| 🗼 Antenna | |
| Antenna |
2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 2 built-in omnidirectional antennas |
| ⚖️ Dimensions and Weight | |
| Product dimensions | Ø200 mm x 166 mm (Ø7.87 in. x 6.54 in.) (spherical device, excluding mounting bracket) |
| Color | White |
| Weight | ≤ 1 kg (2.20 lbs.) (without packaging) |
| 🔌 Port Specifications | |
| Number of 10/100/1000BASE-T ports | 2 |
| 🔋 Power Supply and Consumption | |
| Power supply |
● DC power adapter ● PoE/PoE+ (Note: If both are available, DC is preferred) |
| Local power supply | Yes, one DC power connector (12 V, 1.5 A) |
| Dimensions of the DC connector |
Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Depth: 10 mm (0.39 in.) |
| PoE budget | No |
| Maximum power consumption | 12.95 W |
| 🌱 Environment and Reliability | |
| Operating temperature | –30°C to +65°C (–22°F to +149°F) |

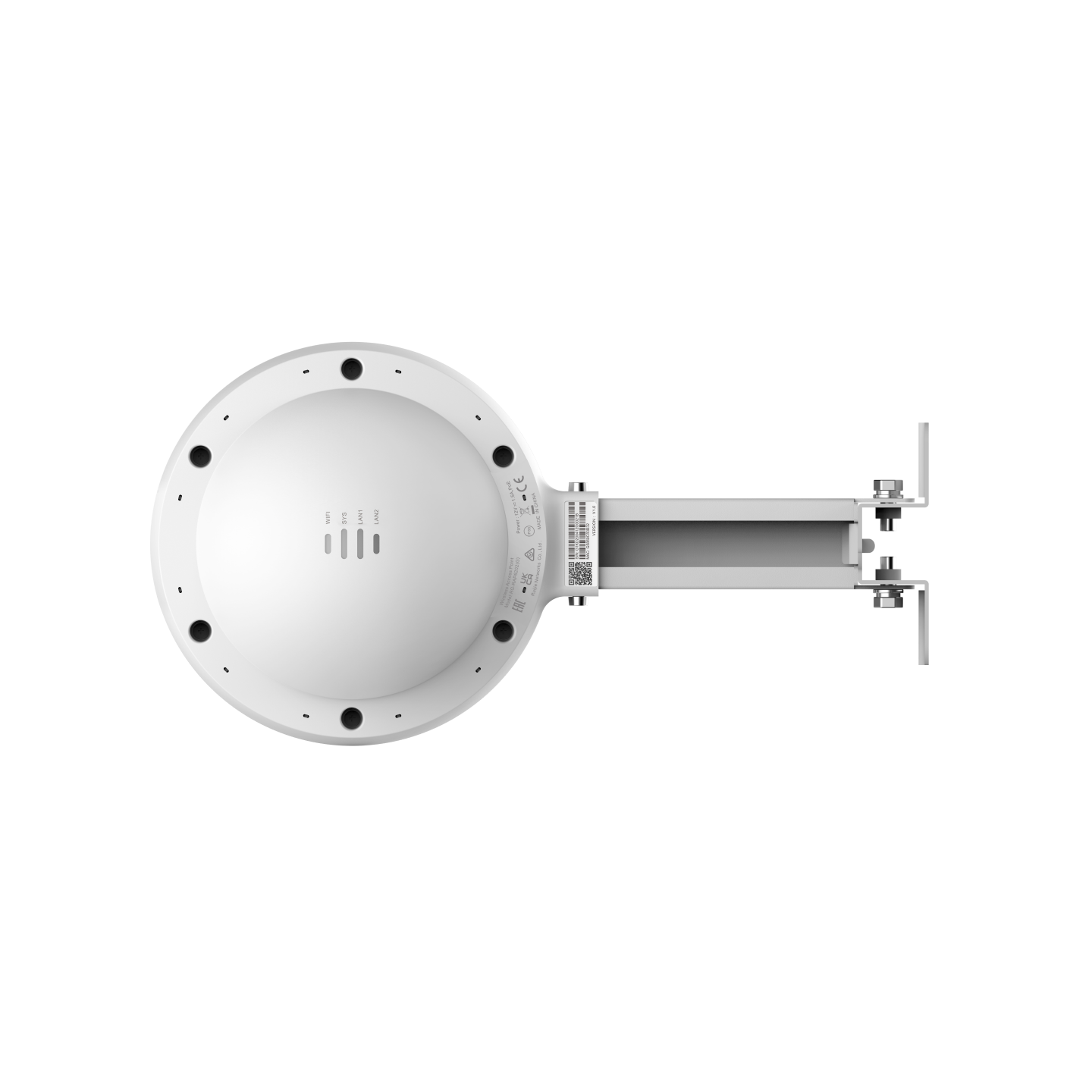

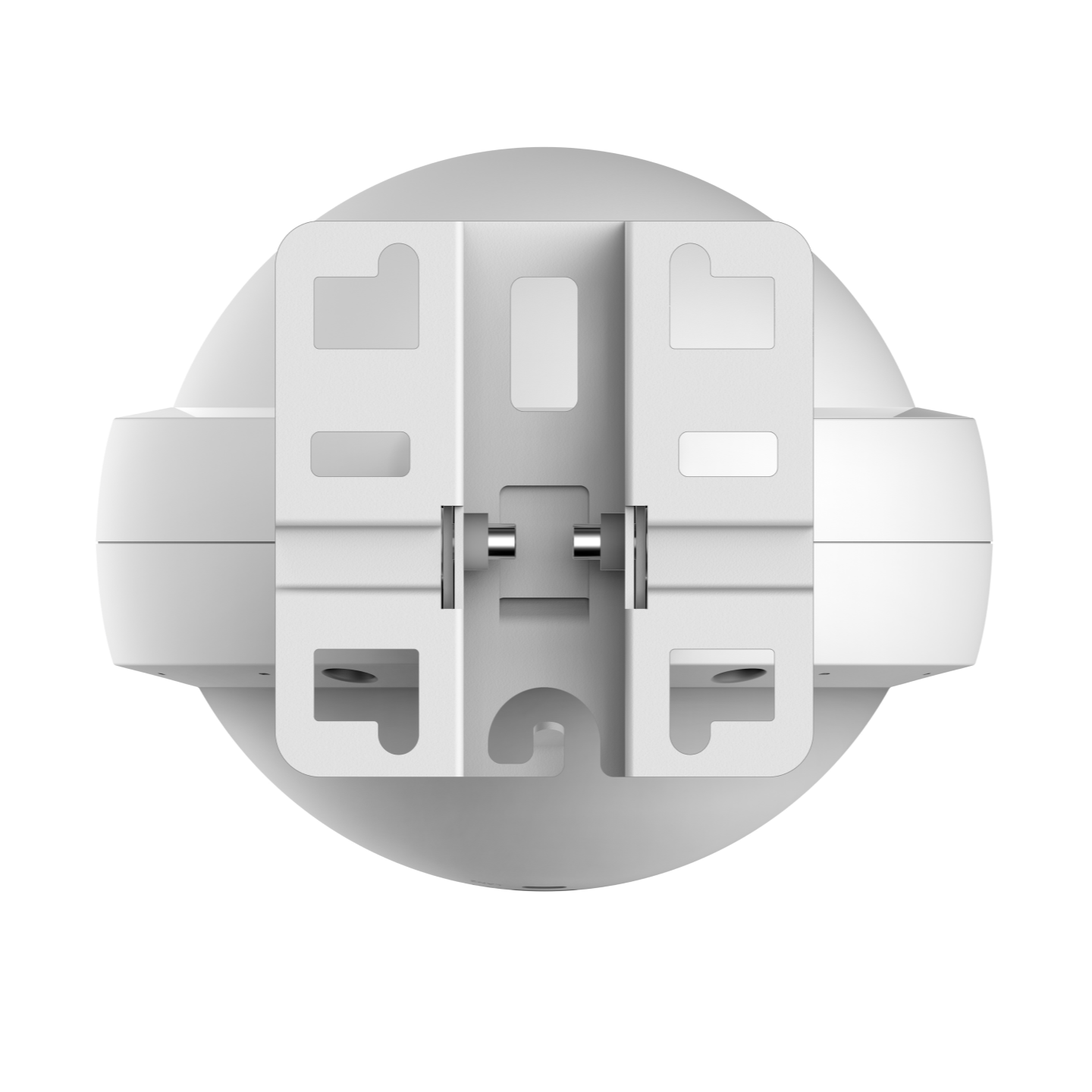

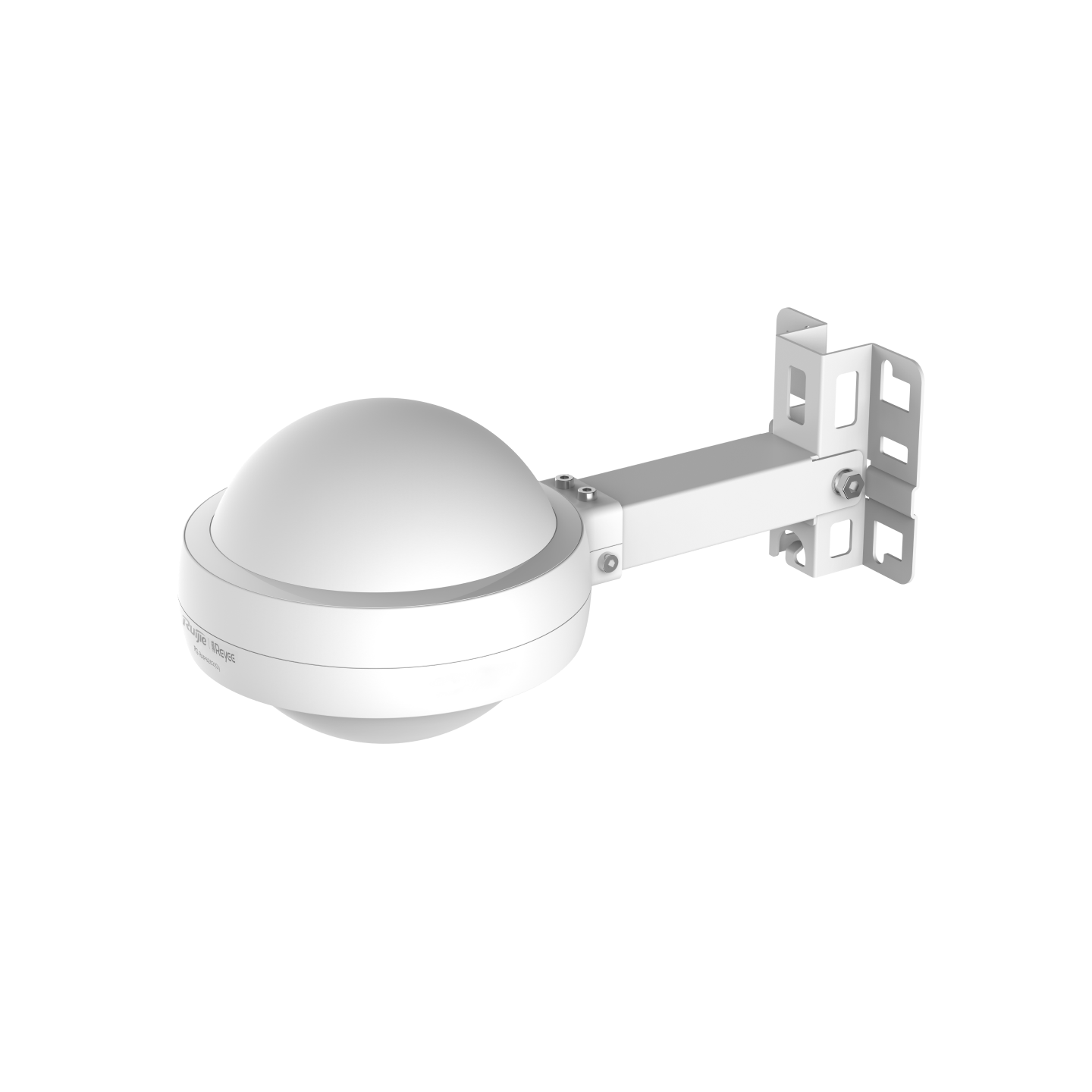

| Mounting options | Wall/Pole |
| IP rating | IP68 |
| ⚙️ Software Specifications | |
| 🌐 WLAN | |
| Max associated wireless clients |
64 (2.4 GHz) 110 (5 GHz) 110 (2.4 GHz and 5 GHz enabled) |
| Max managed devices | 300 |
| 🌐 IP Service | |
| IPv6 | No |
