Industrial Switch, Ruijie Reyees Products, SMB

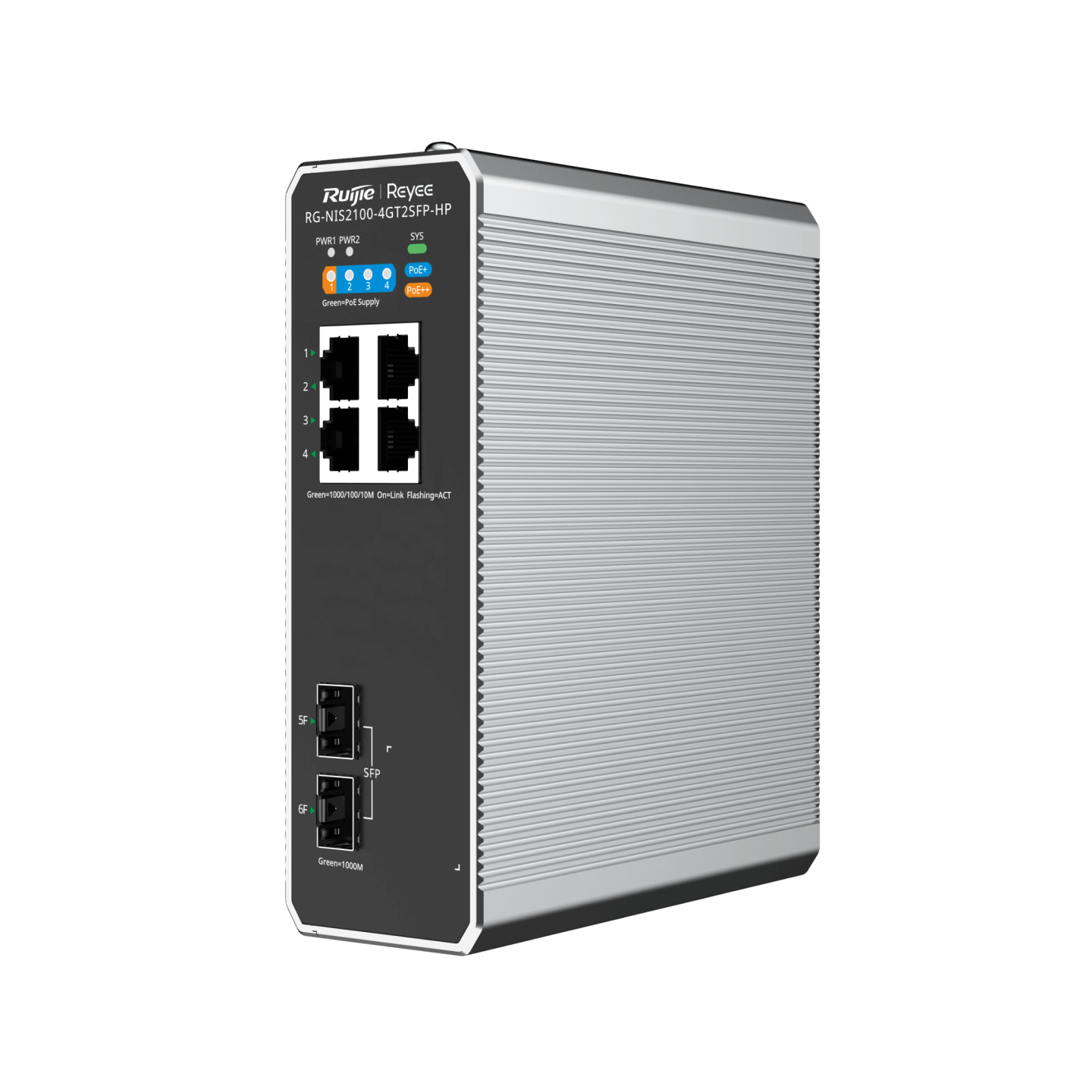

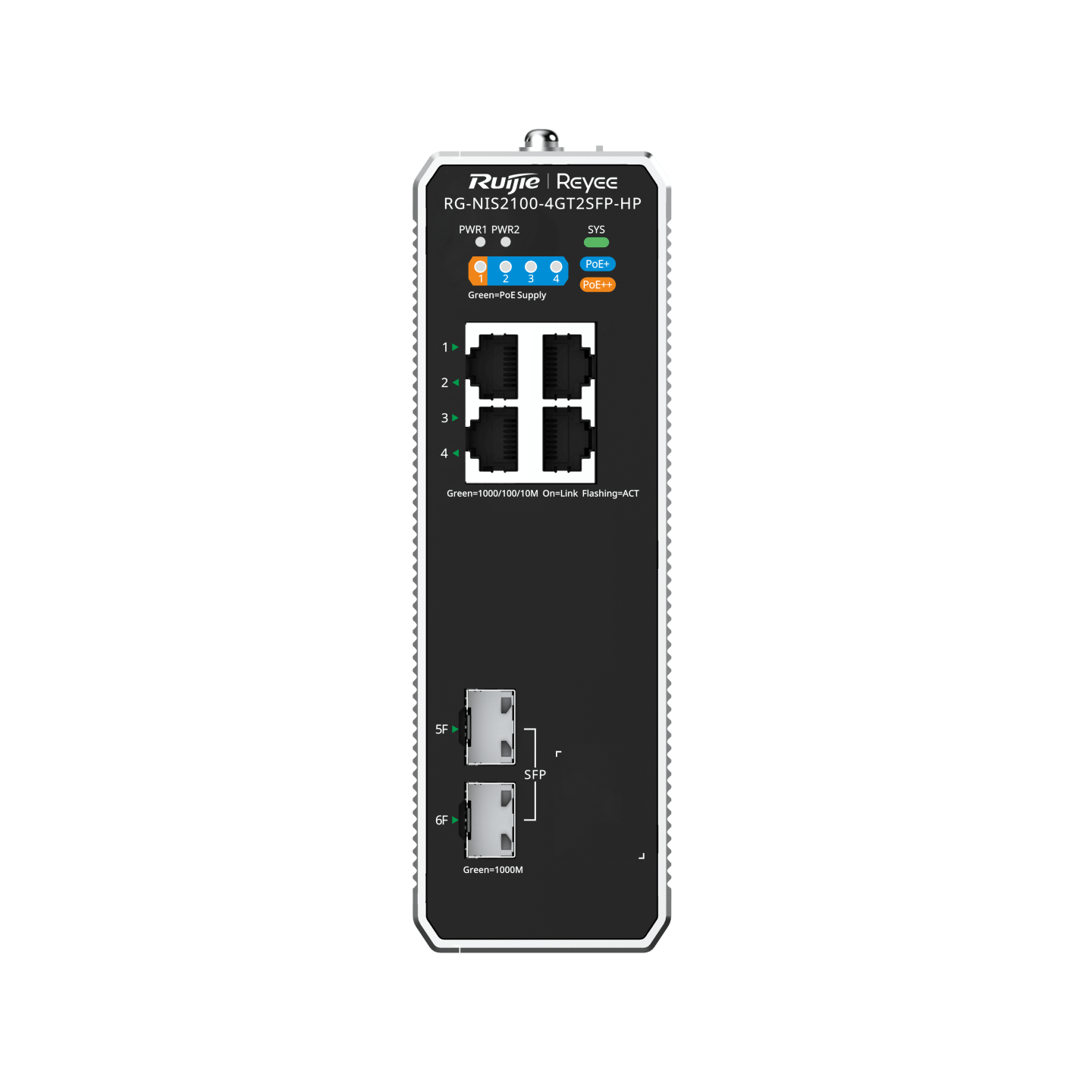

Ruijie Reyee RG-NIS2100-4GT2SFP-HP, 6-Port Cloud Managed Industrial Switch, with 1 x PoE++ Port, 3 x PoE+ Ports, and 2 x SFP Uplink Ports
4-Port RJ45 Gigabit and 2-Port SFP Cloud Managed Industrial Switch, with 3-Port PoE+ and 1-Port PoE++
$156.00
Smart Cloud-Managed Industrial PoE++ Switch Specifications Table
| Specification | Details |
| Model | RG-NIS2100-4GT2SFP-HP |
| Product Category | Layer 2 Industrial Smart Cloud-Managed Switch |
| Warranty | 1 year |
| Total Physical Ports | 6 Ports (4 x RJ45 + 2 x Optical SFP) |
| Network Interfaces |
4 x 10/100/1000BASE-T Gigabit RJ45 ports 2 x 1GE SFP optical uplink ports |
| PoE Capability |
1 x High-Power PoE++ Port (Port 1 up to 90W) 3 x PoE/PoE+ Ports (Ports 2–4 compliant with 802.3af/at) |
| PoE Power Budget |
Default: 108 W | MAX: 180 W (Dynamically adjustable via web/cloud interface depending on power supply entry) |
| PoE Power Pin Allocation |
Port 1 (PoE++): 1–2 (-), 3–6 (+), 4–5 (+), 7–8 (-) Ports 2–4 (PoE+): 1–2 (+), 3–6 (-) |
| Switching Capacity | 12 Gbps |
| Forwarding Rate | 8.9 Mpps |
| Operating Temperature |
-40°C to +75°C (-40°F to +167°F) (Ruggedized for harsh outdoor or industrial settings) |
| Hardware Enclosure | IP40 heavy-duty aluminum casing, built-in DIN-rail mount, and 6kV port surge protection |
| Intelligent Maintenance | Built-in PoE Watchdog (Auto-detects and power-cycles frozen cameras or industrial devices), ERPS industrial ring network mode support |
| Network Security | Hardware Port Isolation support |
