Ruijie Reyee RG-NIS-PA240-54 Industrial DIN Rail Power Supply | 240W | 54V DC 4.4A | Universal AC Input | Network & PoE Equipment

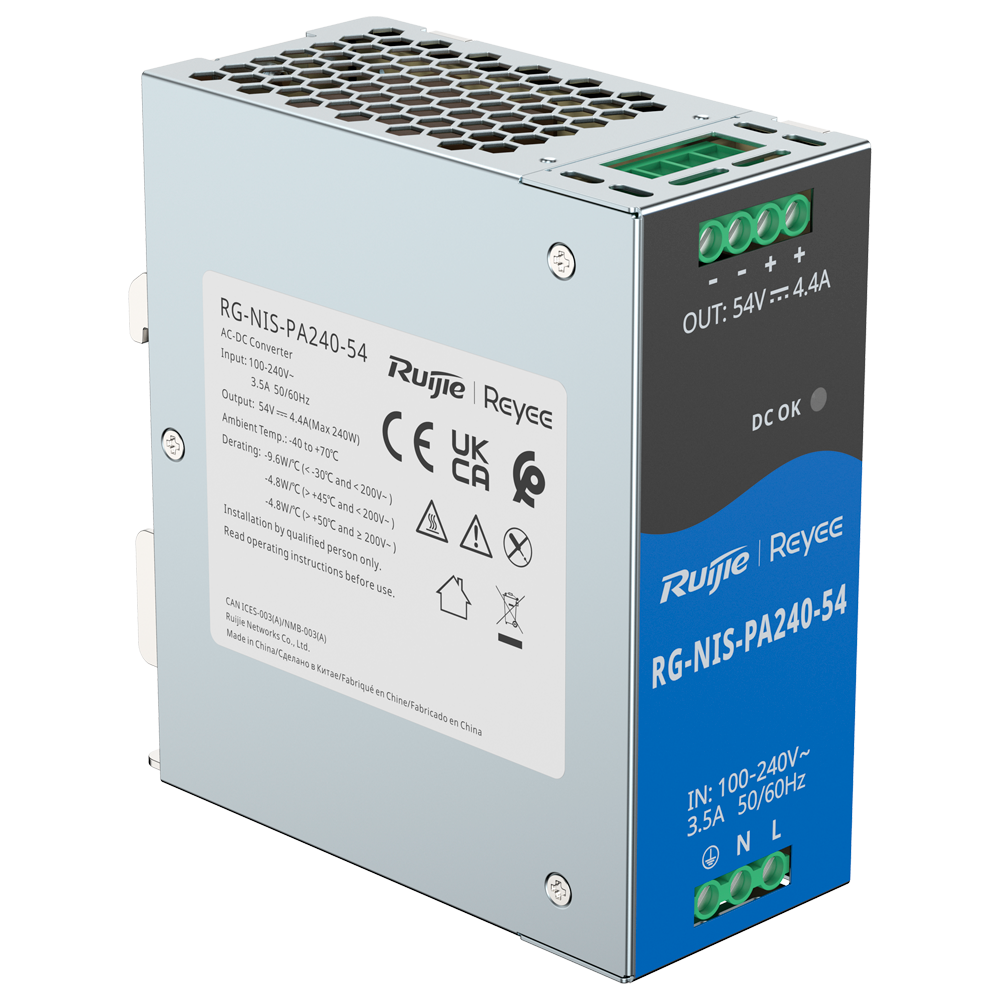

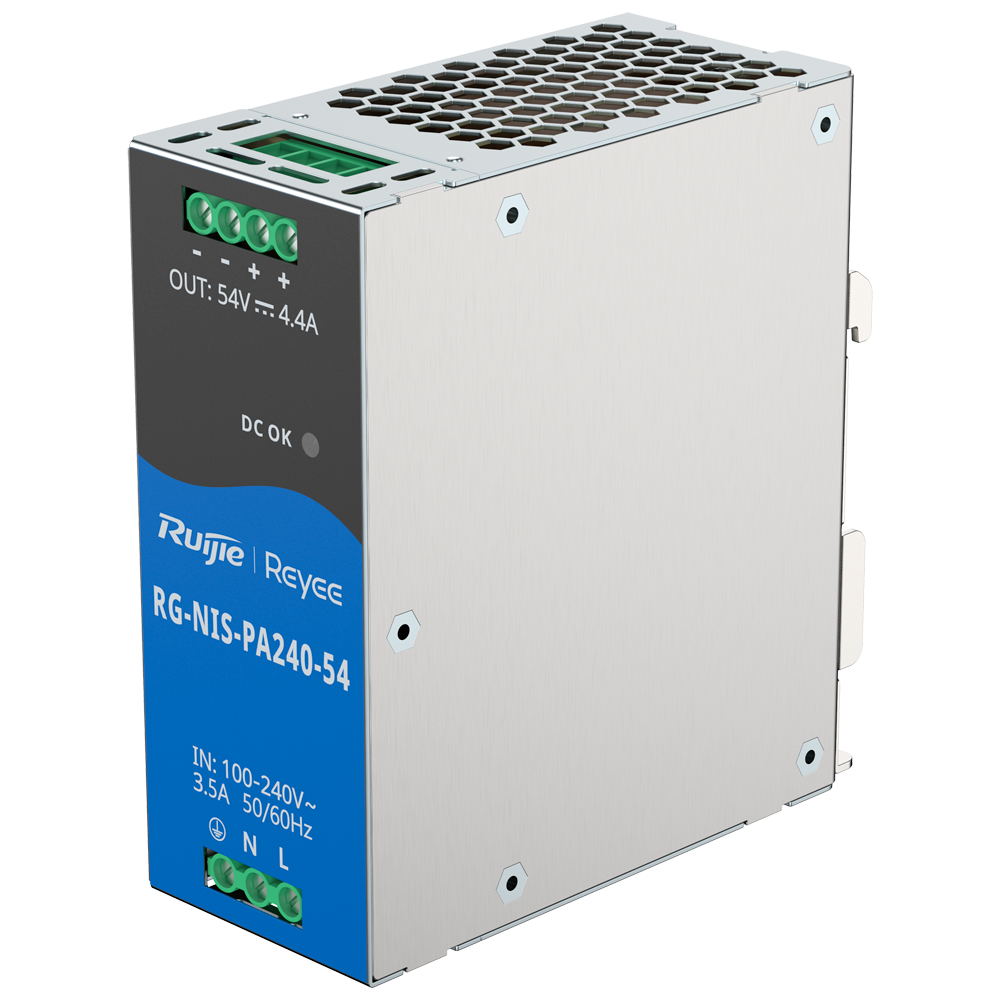

Reyee’s high-capacity industrial power supply RG-NIS-PA240-54 is specifically designed to provide a continuous, robust, and high-performance power supply to critical network infrastructure and dense PoE systems. Built on a sturdy metal chassis, it features a form factor optimized for quick mounting on a DIN rail, facilitating power management in automation, telecommunications, and control center cabinets exposed to harsh conditions.

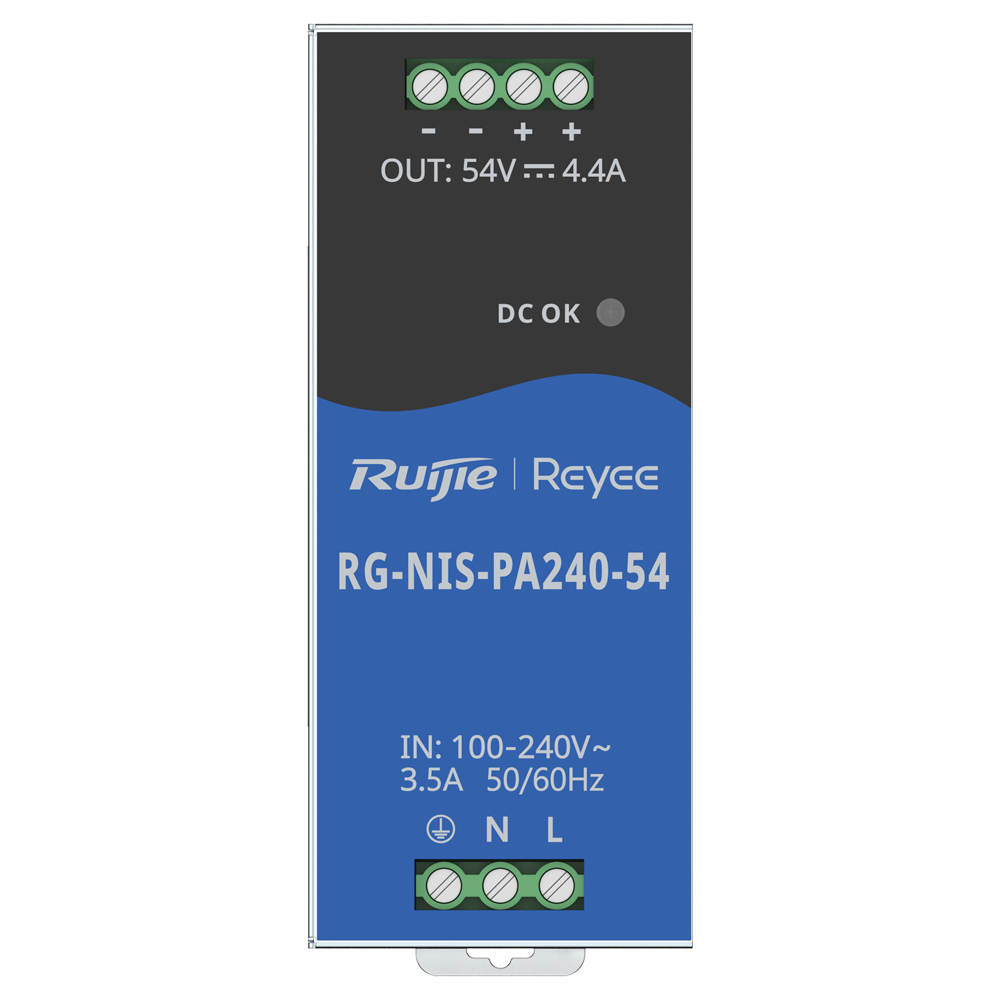

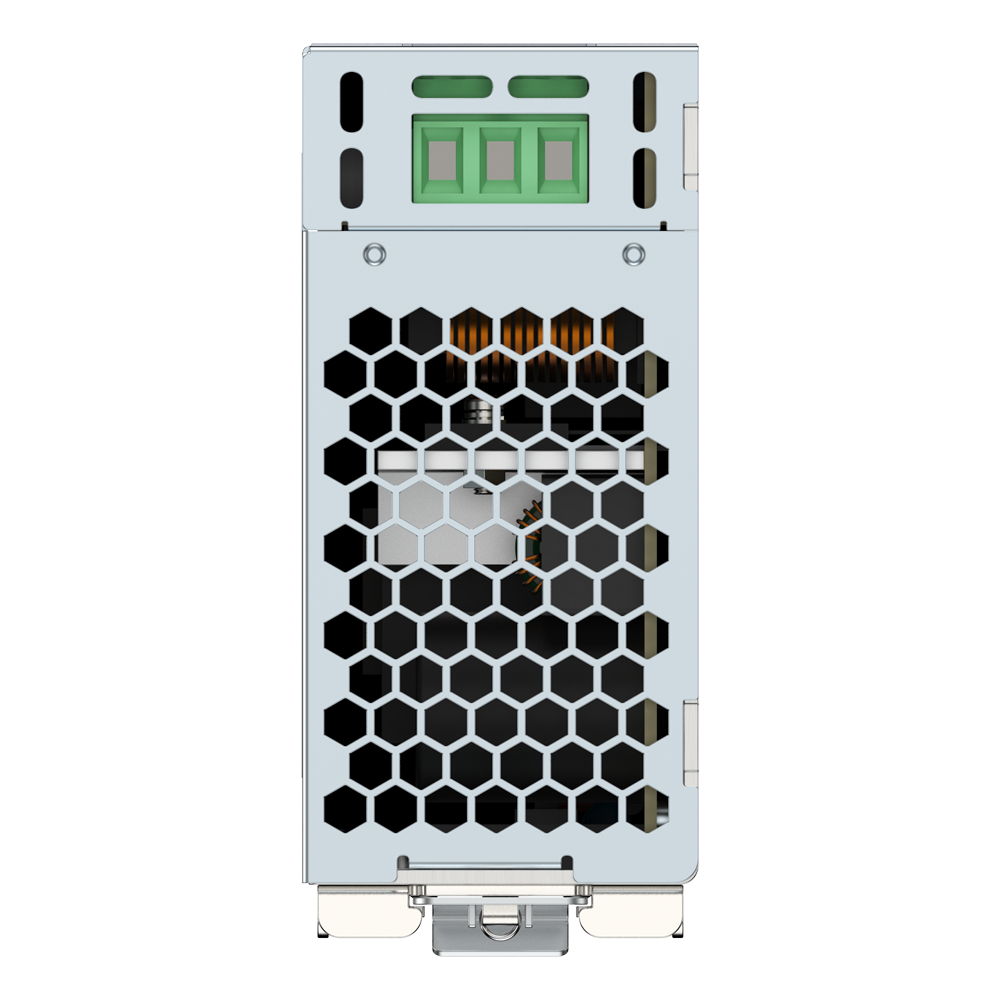

This device provides a net available power of up to 240W,, delivering a regulated DC voltage in the range of 52.38V to 55.62 V DC with a constant current of 4.4A. Its chassis utilizes efficient passive cooling (fanless) technology, ensuring completely silent operation that prevents mechanical failures caused by ventilation issues and the accumulation of internal particles, achieving an MTBF of over 150,000 hours. It supports a wide input voltage range from 90V to 264V AC and features a front-panel status LED (DC OK). Their circuits provide comprehensive protection against short circuits, overcurrent, overvoltage, thermal spikes, electrostatic discharge (ESD), and line surges of up to 4kV in common-mode.

• Reyee Industrial Power Supply
• Rated efficient electrical power of 240W
• Output voltage range from 52.38 to 55.62 VDC
• Constant output current capacity of 4.4A
• Universal flexible AC input from 90V to 264V
• Completely silent passive fanless system
• Built-in surge protection of 4kV
