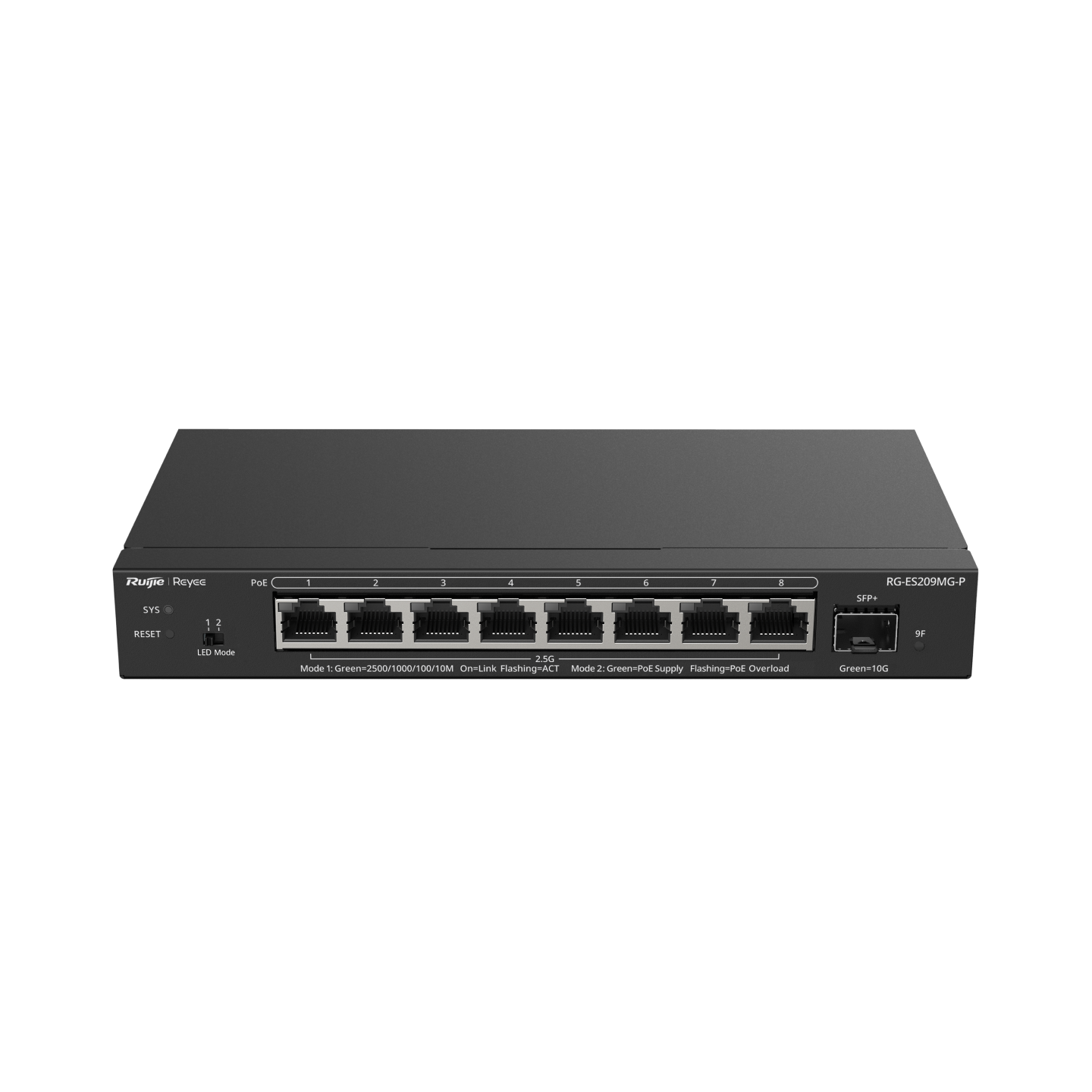

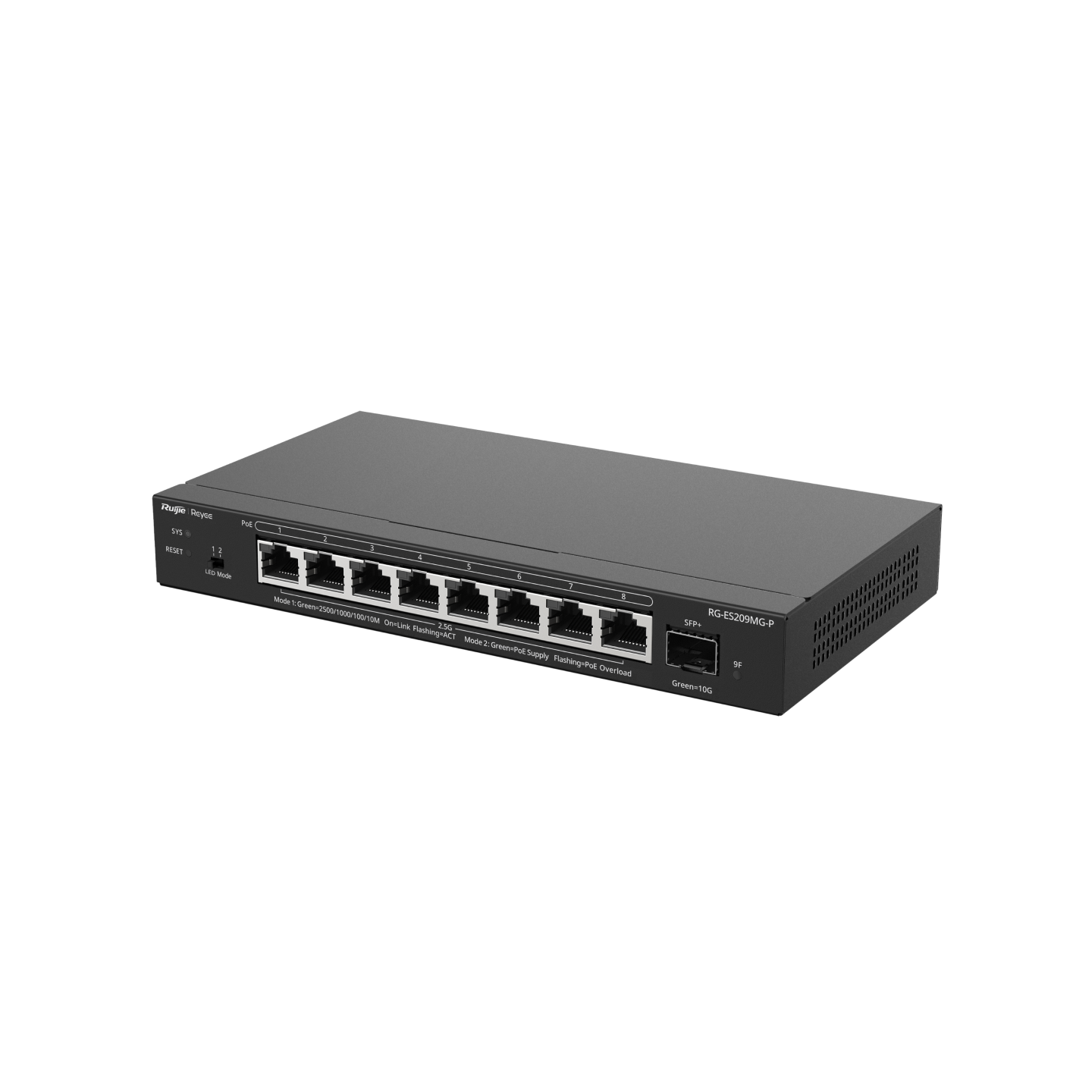

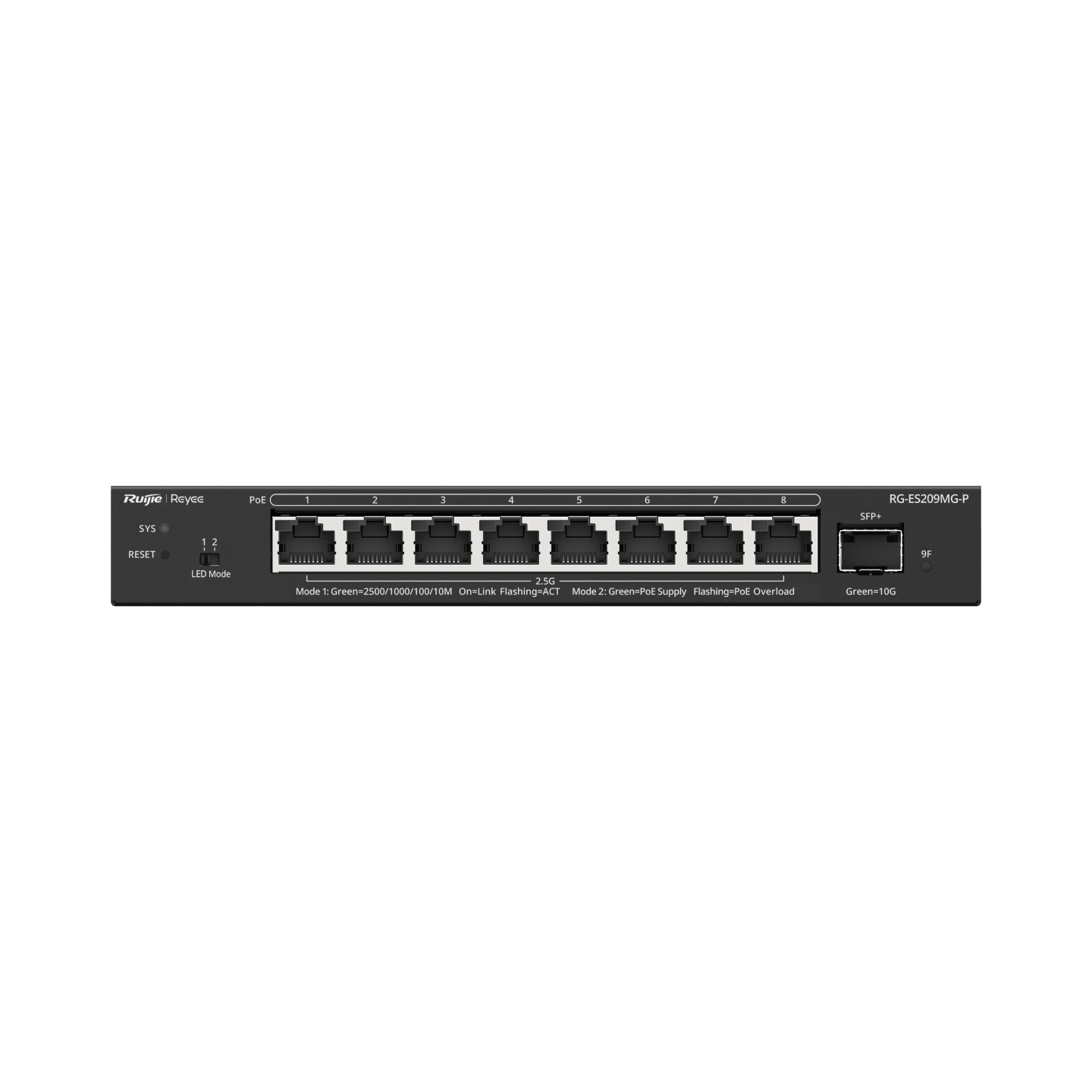

Ruijie Reyee RG-ES209MG-P, 8-Port 2.5G Cloud Managed PoE Switch, 1 x 10G Uplink
8-Port 2.5G PoE+ with 1 x SFP+ Port Cloud Managed Switch, 130 W
$165.00
Smart Cloud-Managed Multi-Gigabit PoE+ Switch Specifications Table
| Specification | Details |
| Model | RG-ES209MG-P |
| Product Category | Layer 2 Smart Cloud-Managed Switch |
| Warranty | 1 years |
| Total Physical Ports | 9 Ports (8 x RJ45 + 1 x Optical SFP+) |
| Network Interfaces |
8 x 10/100/1000/2500BASE-T Multi-Gigabit RJ45 ports
1 x 10GE SFP+ high-speed optical uplink port |
| PoE Capability | Total 8 x PoE Out ports (IEEE 802.3af/at PoE/PoE+ compliant) |
| PoE Power Budget | 130 W |
| PoE Power Pin Allocation | 1–2 (+), 3–6 (-) |
| Switching Capacity | 60 Gbps |
| Forwarding Rate | 45 Mpps |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Intelligent Maintenance | Built-in PoE Watchdog (Automatically detects and power-cycles frozen multi-gigabit access points or high-res IP cameras) |
| Network Security | Hardware Port Isolation support |
