ES2 Switch, Ruijie Reyees Products, SMB

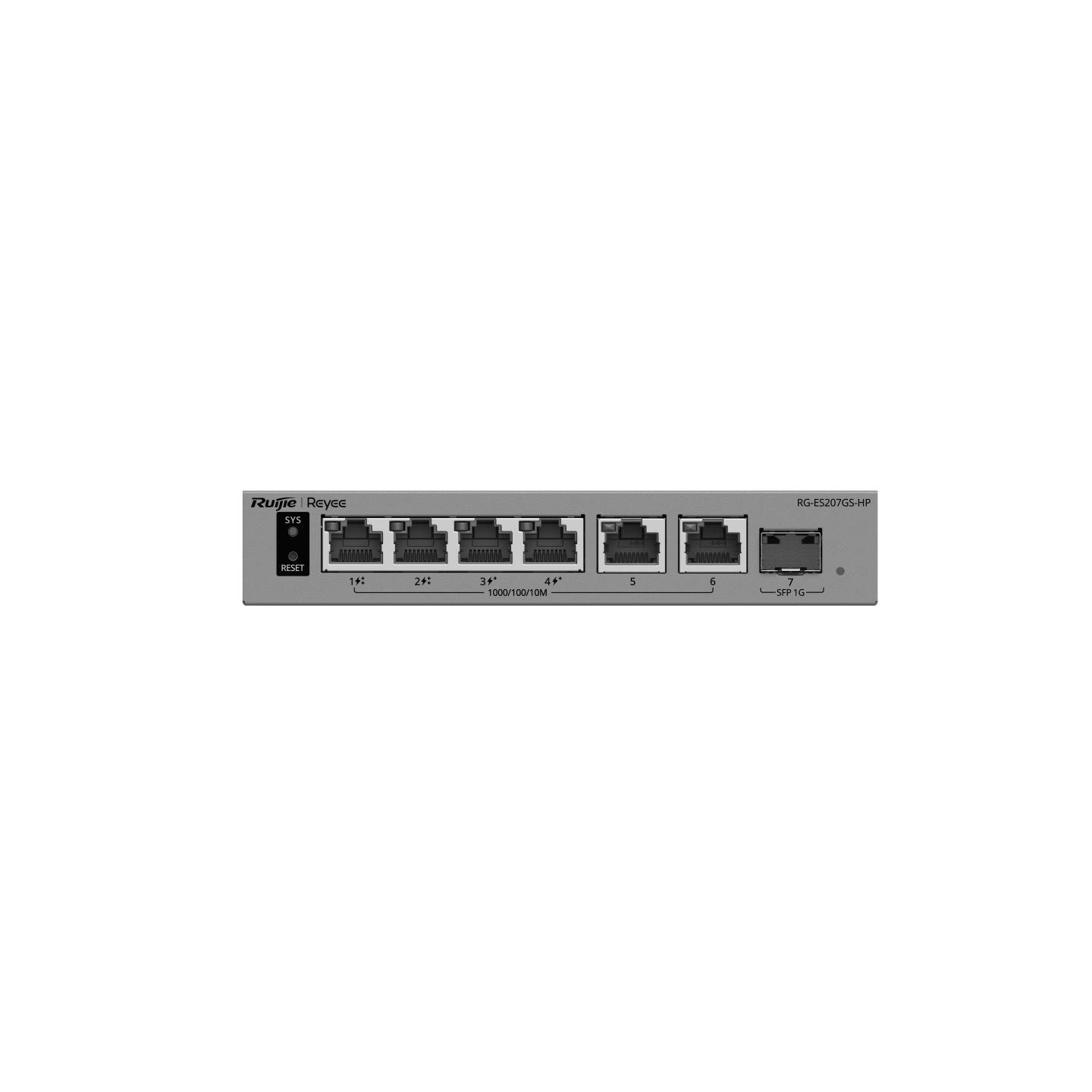

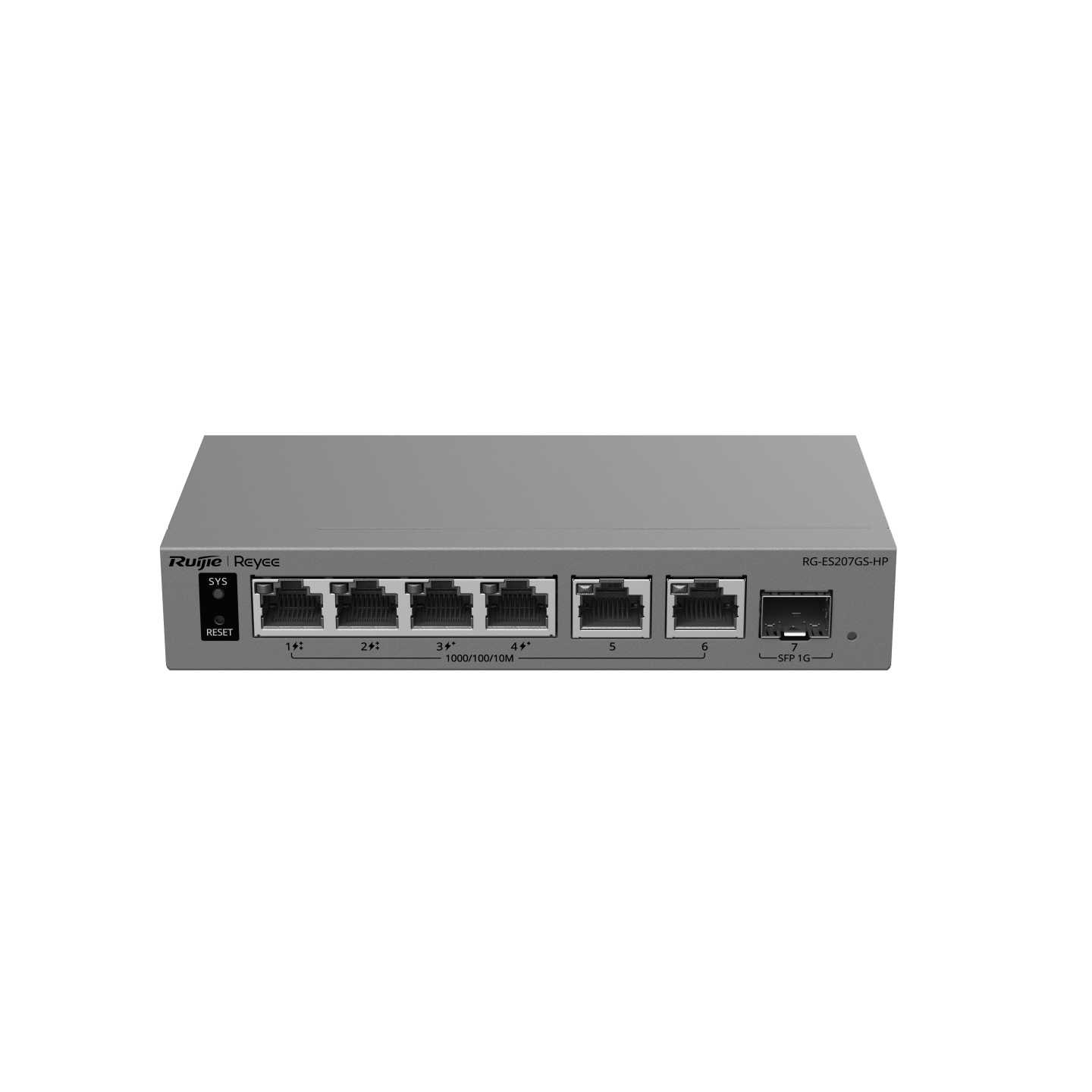

Ruijie Reyee RG-ES207GS-HP, 6-Port Gigabit Smart Cloud-Managed PoE Switch with 1-Port SFP
4-Port 10/100/1000BASE-T PoE (2-Port PoE++ and 2-Port PoE+) Cloud-Managed Switch with 2-Port Gigabit and 1-Port SFP, 120 W
$88.00
High-Power Smart Cloud-Managed PoE++ Switch Specifications Table
| Specification | Details |
| Model | RG-ES207GS-HP |
| Product Category | Layer 2 Smart Cloud-Managed Switch |
| Warranty | 1 years |
| Total Physical Ports | 7 Ports (6 x RJ45 + 1 x Optical SFP) |
| Network Interfaces |
6 x 10/100/1000BASE-T RJ45 ports
1 x 1GE SFP optical uplink port |
| PoE Capability |
Total 4 x PoE Out ports:
• 4 x PoE/PoE+ (IEEE 802.3af/at) compatible ports
• 2 x High-Power PoE++ (IEEE 802.3bt, up to 90W) ports |
| PoE Power Budget | 120 W |
| PoE Power Pin Allocation |
Ports 1-2 (PoE++): 1–2 (-), 3–6 (+), 4–5 (+), 7–8 (-)
Ports 3-4 (PoE+): 1–2 (+), 3–6 (-) |
| Switching Capacity | 14 Gbps |
| Forwarding Rate | 10.41 Mpps |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Intelligent PoE Maintenance | Built-in PoE Watchdog (Automatically detects and reboots frozen IPCs) |
| Network Security | Hardware Port Isolation support |
