ES2 Switch, Ruijie Reyees Products, SMB

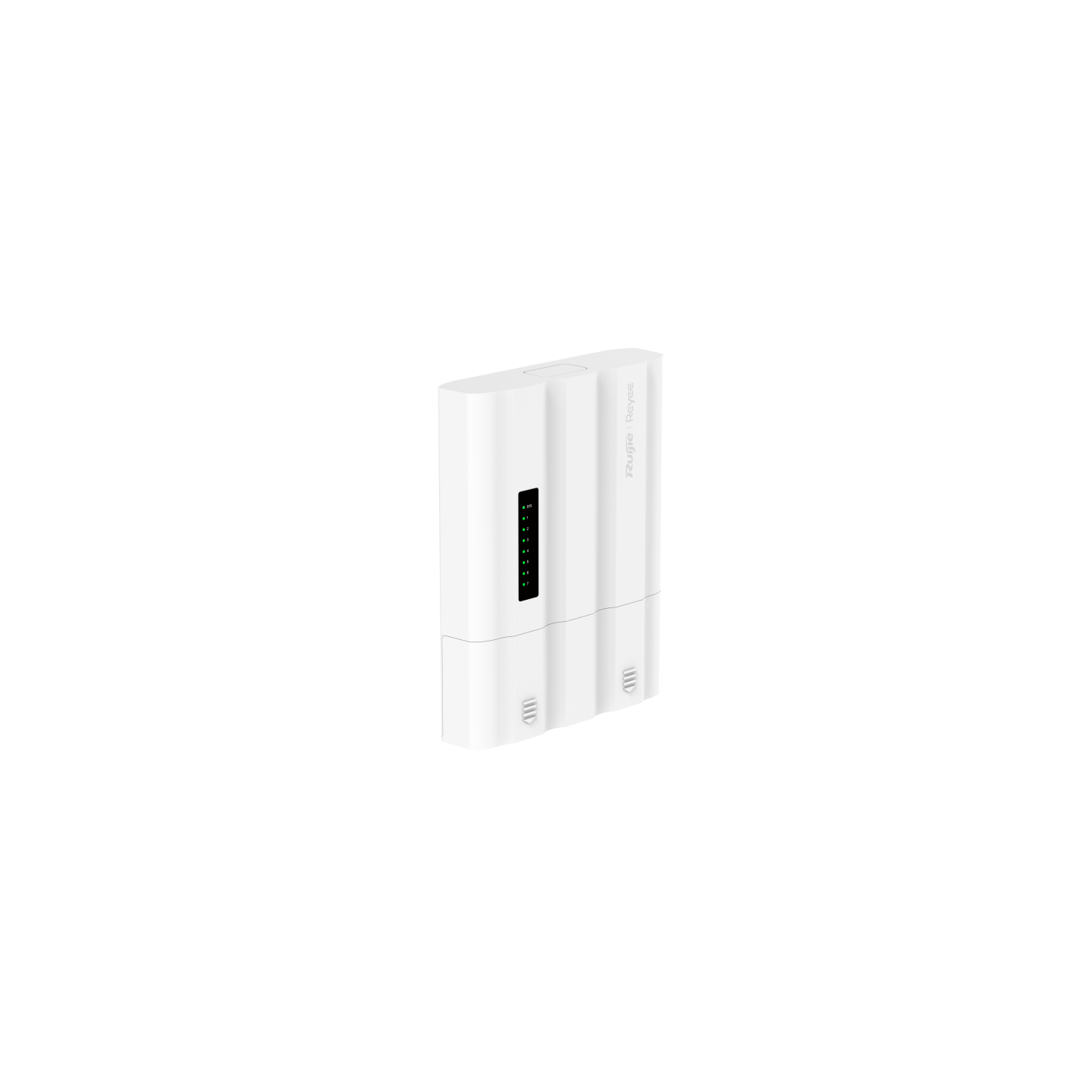

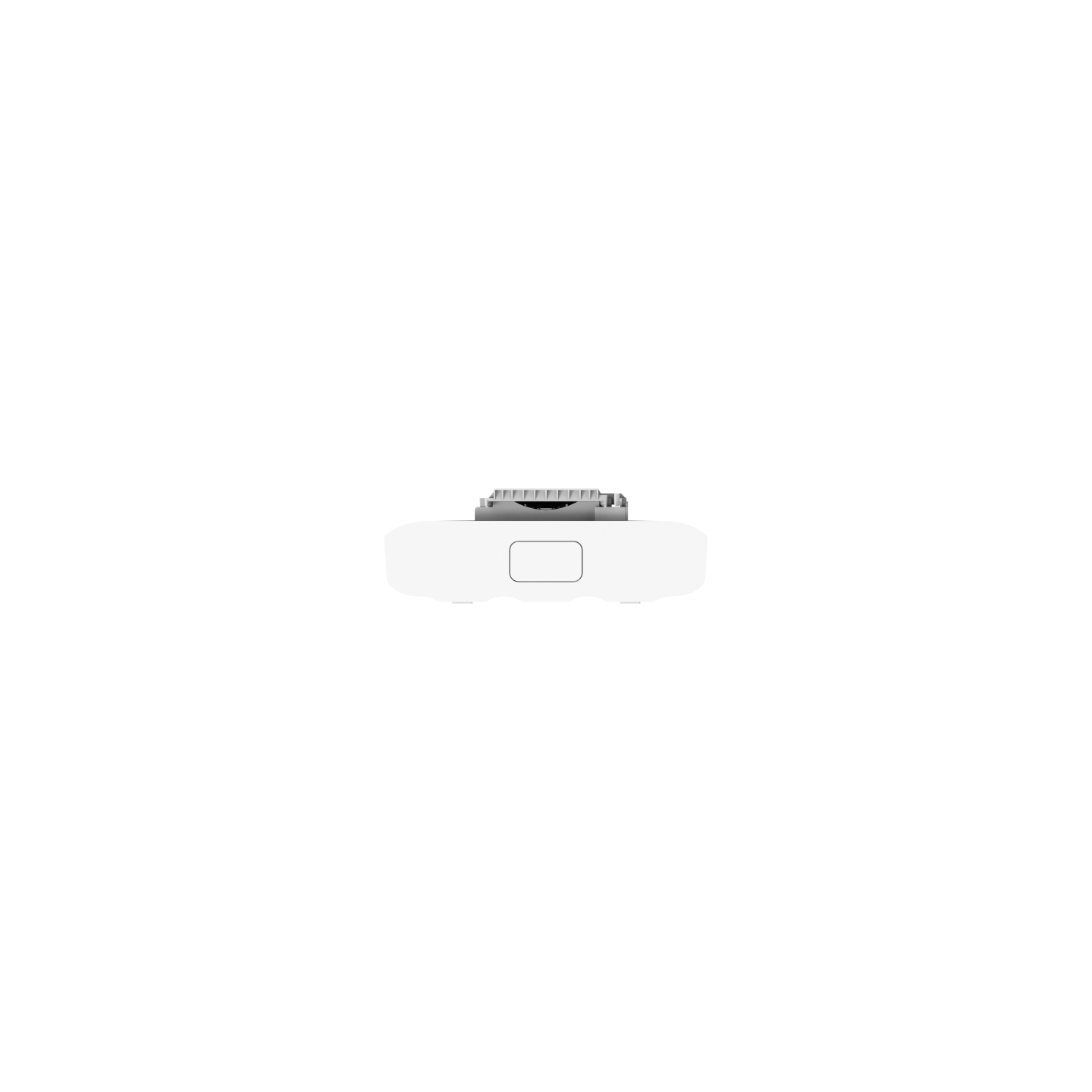

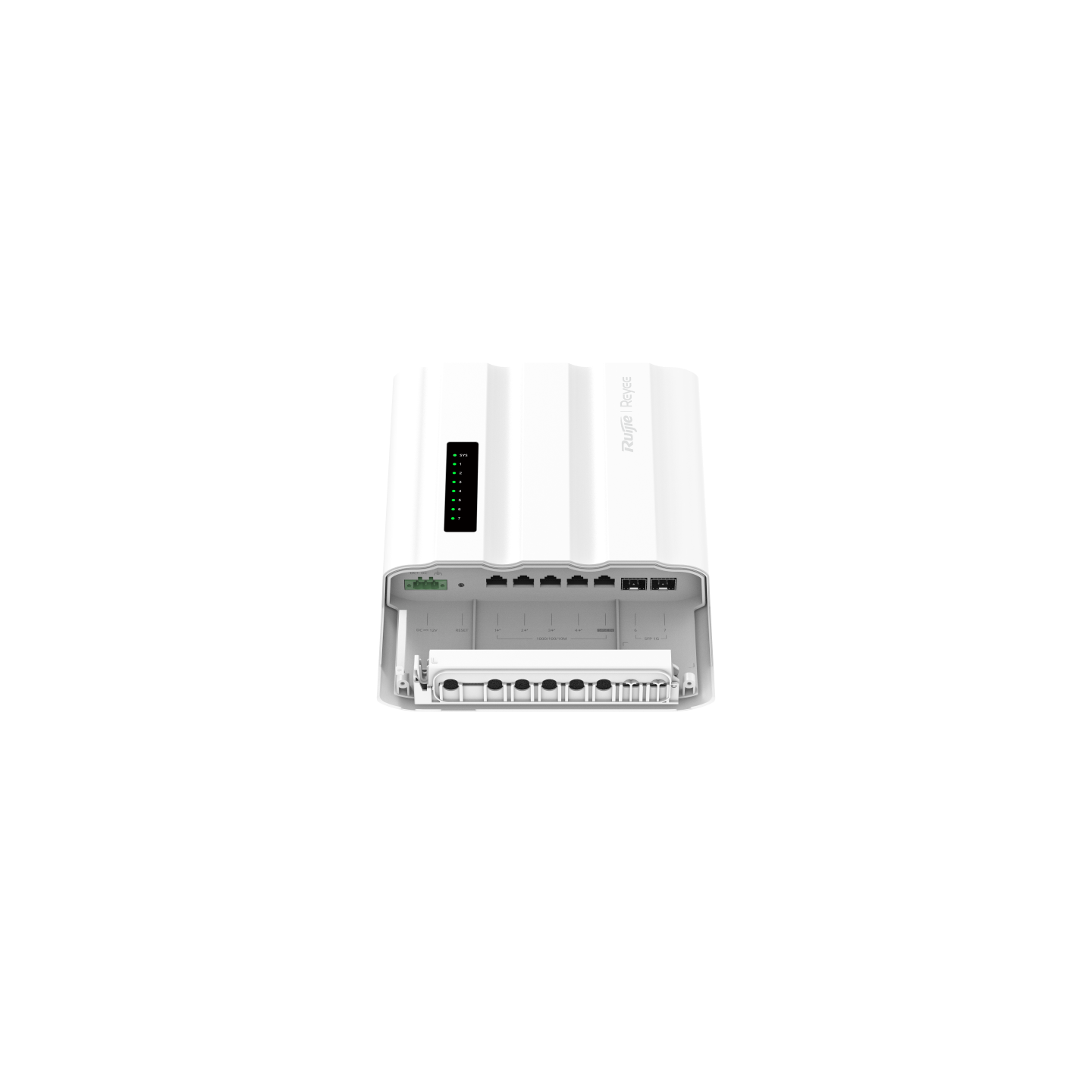

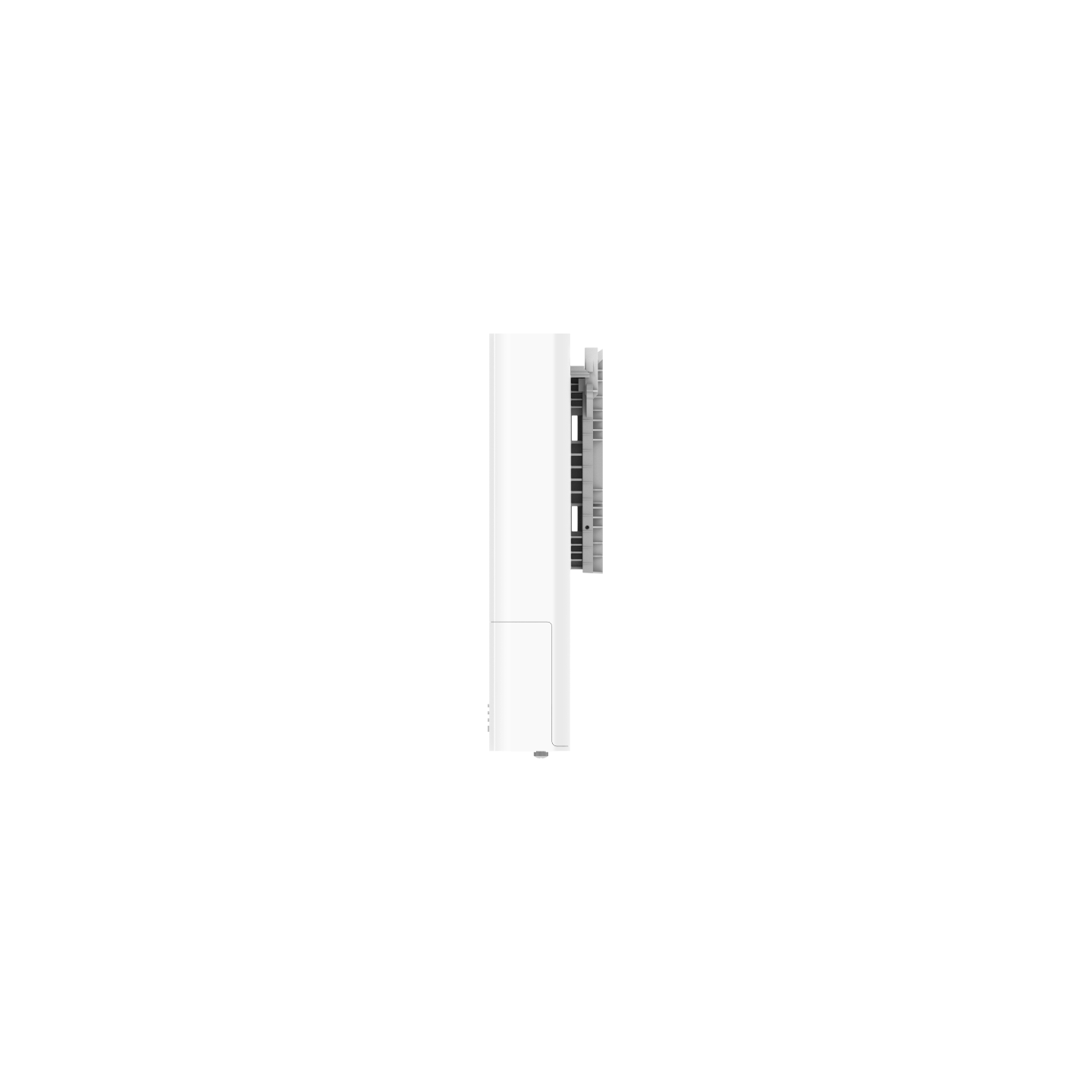

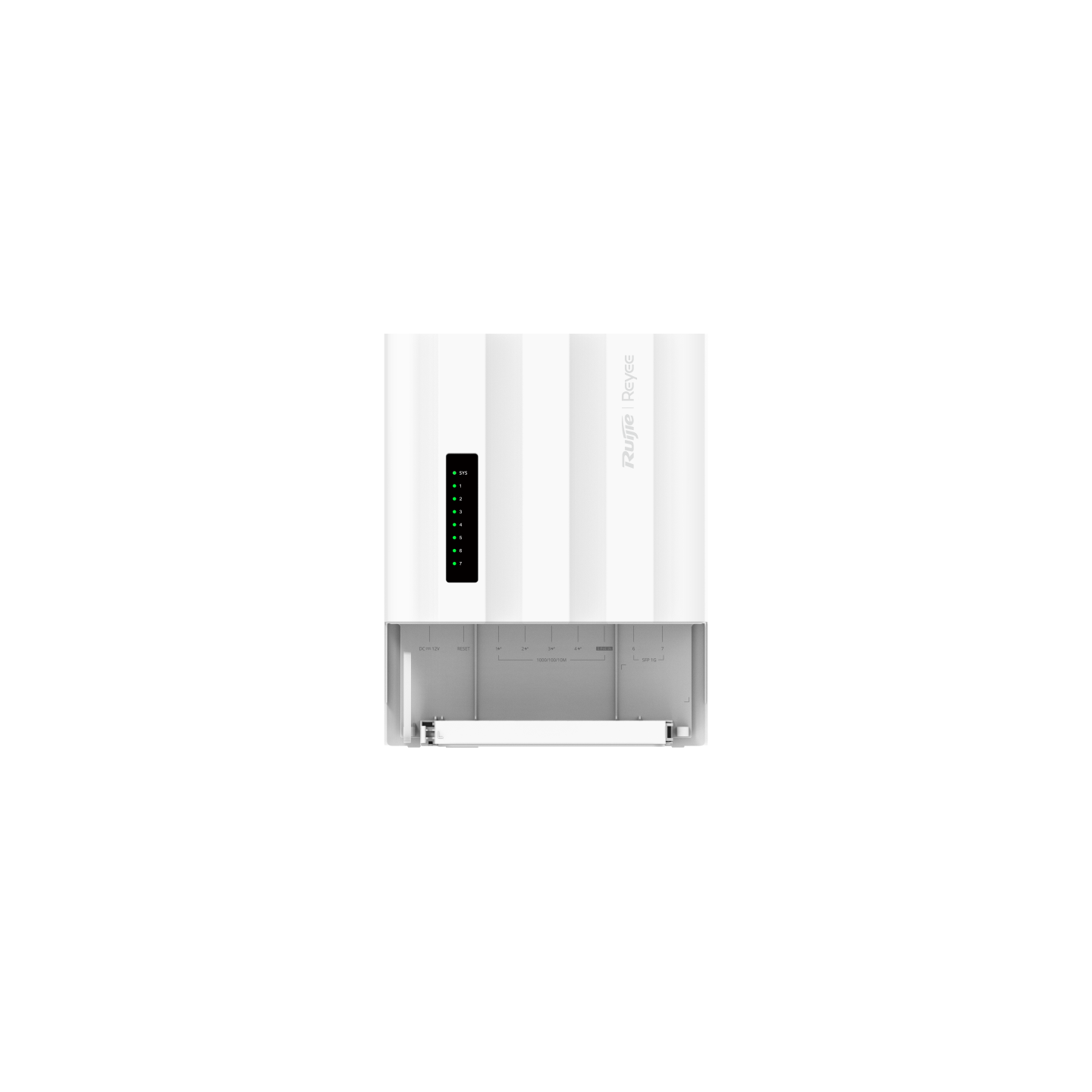

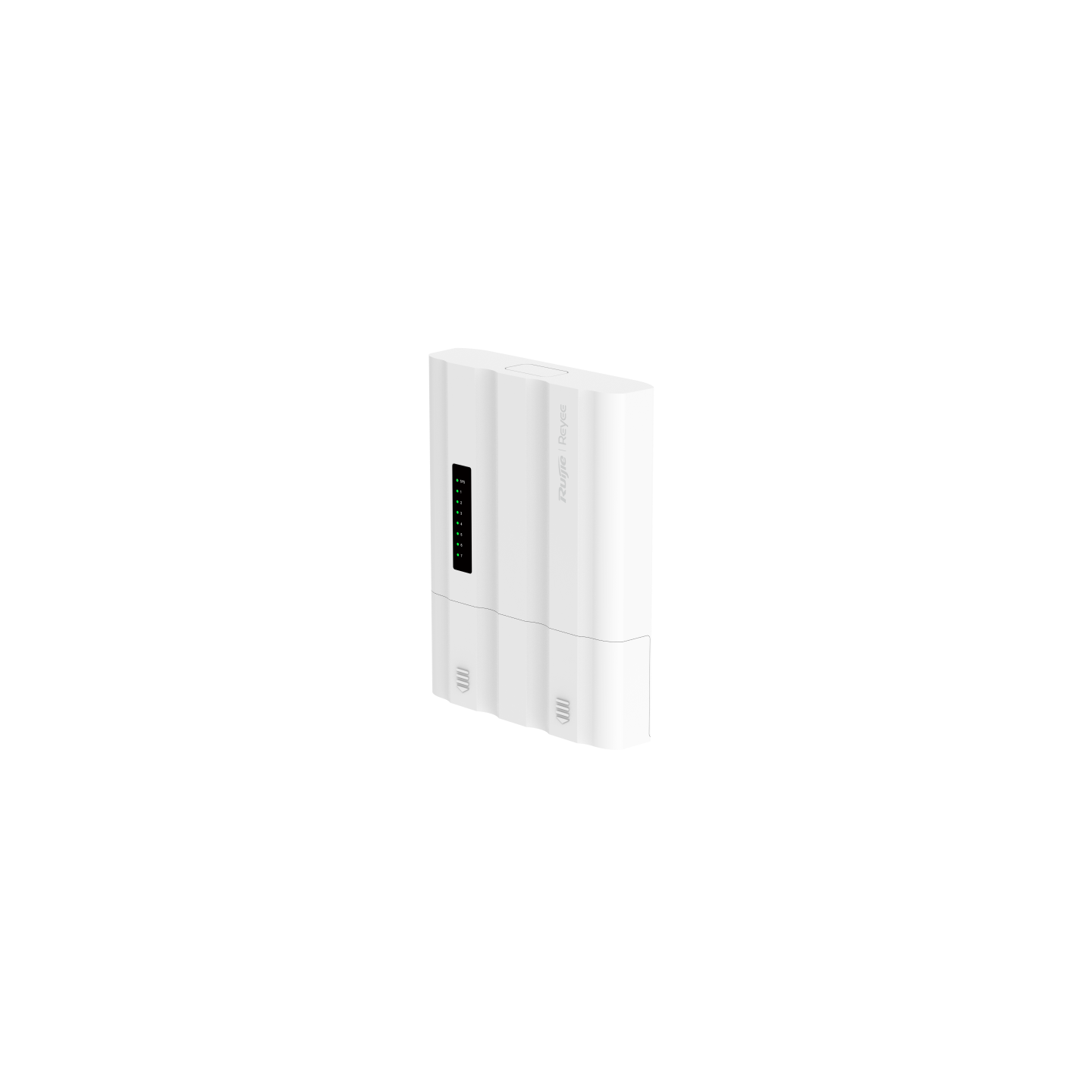

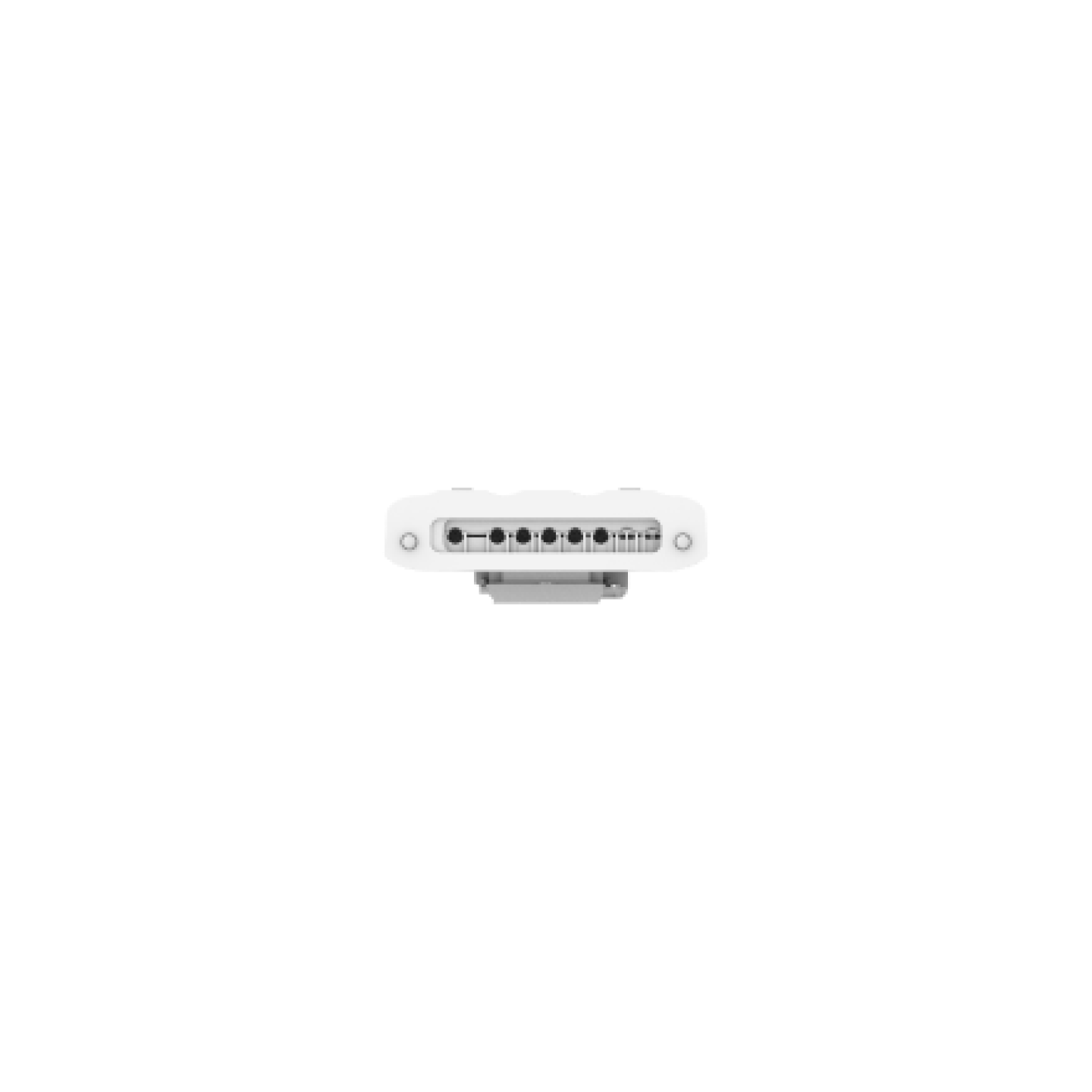

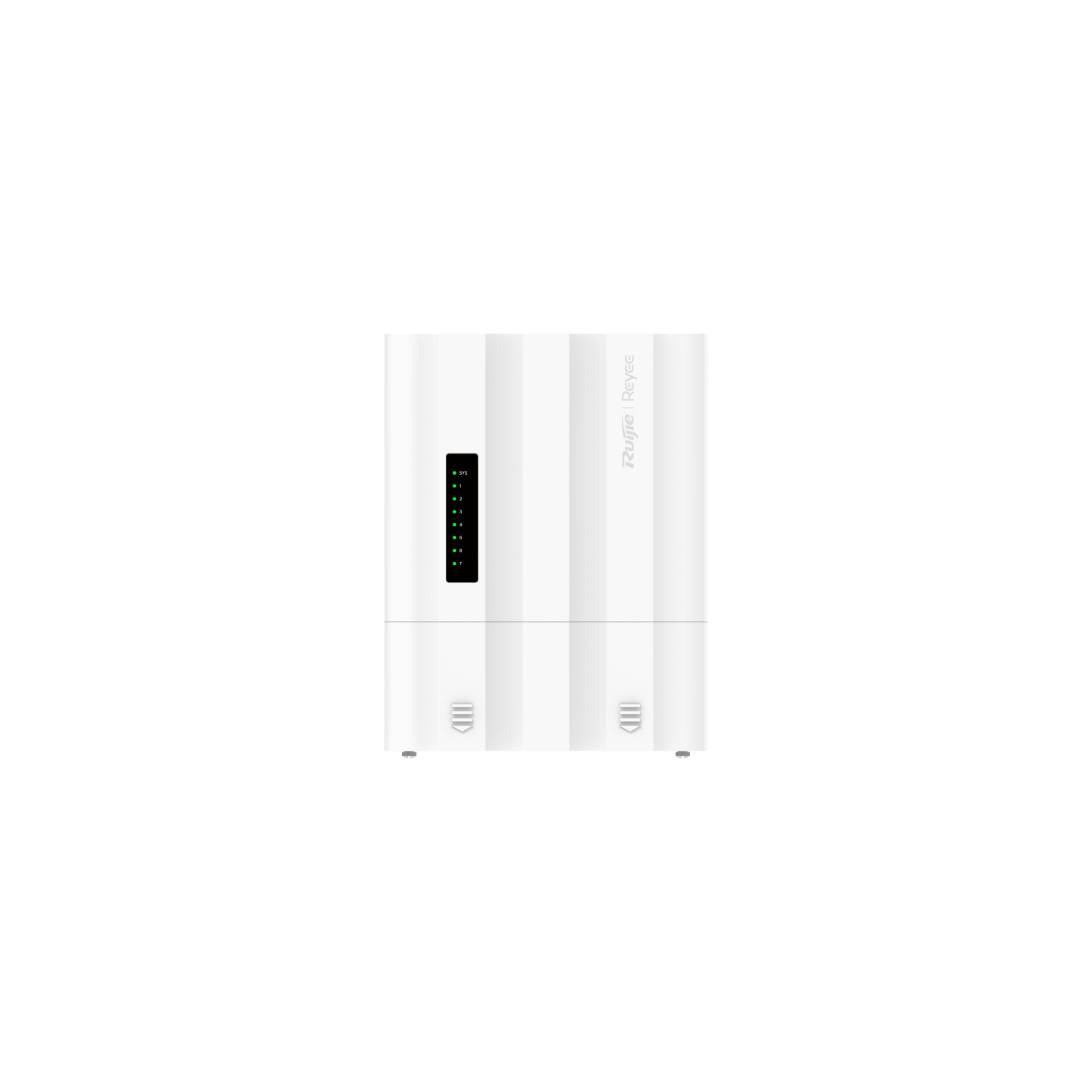

Ruijie Reyee RG-ES207GS-PI-OD, 7-Port Gigabit Outdoor Switch with PoE/DC Input
4 x 10/100/1000BASE-T PoE+, 1 x GE RJ45(802.3bt PoE in), 2 x SFP; Cloud Managed Switch; 60 W; IP65
$105.00
All-in-One Outdoor Smart Cloud-Managed Switch Specifications Table
| Specification | Details |
| Model | RG-ES207GS-PI-OD |
| Product Category | Layer 2 Smart Cloud-Managed Outdoor Switch |
| Warranty | 1 years |
| Total Physical Ports | 7 Ports (5 x RJ45 + 2 x Optical SFP) |
| Network Interfaces |
5 x 10/100/1000BASE-T RJ45 ports
2 x 1GE SFP optical uplink ports (Supports ERPS ring topologies) |
| PoE Out Capabilities | Total 4 x PoE/PoE+ Out ports (Ports 1–4) |
| PoE In Infrastructure |
1 x Dedicated PoE In Port (Port 5)
Supports IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++) |
| Dynamic PoE Out Budget |
Driven entirely by the upstream input power delivery level:
• 90W PoE++ Input: 60W available budget
• 60W PoE++ Input: 40W available budget
• 30W PoE+ Input: 19W available budget
• 15.4W PoE Input: 6W available budget |
| PoE Power Pin Allocation | 1–2 (+), 3–6 (-) |
| Switching Capacity | 14 Gbps |
| Forwarding Rate | 10.41 Mpps |
| Environmental Reliability |
IP Rating: IP65 (Fully dustproof, jet-water resistant outdoor chassis)
Operating Temp: –30°C to +65°C (-22°F to 149°F) |
| Intelligent Maintenance | Built-in PoE Watchdog (Automatically polls, detects, and reboots frozen IPCs) |
| Network Security | Hardware Port Isolation support |
