NBS3 Switch, Ruijie Reyees Products, SMB

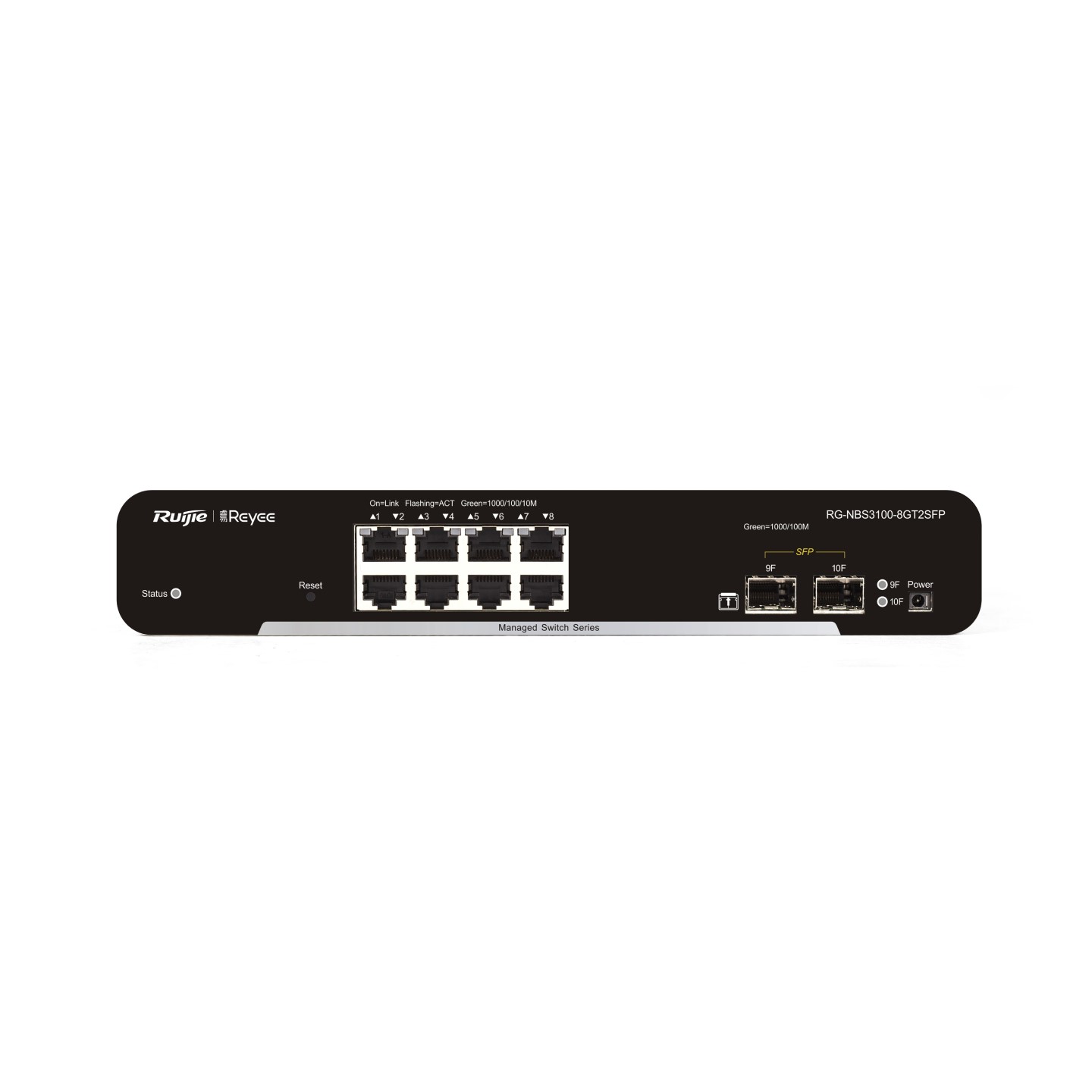

Ruijie Reyee RG-NBS3100-8GT2SFP, 10-Port Gigabit Layer 2 Cloud Managed Non-PoE Switch
8-Port Gigabit L2 Managed Switch, 8 Gigabit RJ45 Ports,2 SFP Slots, Desktop Steel Case
$126.00
| Specification Category | Parameter | Value |
| Product Information | Warranty | 1 year |
| Port Specifications | Total RJ45 Ports | 8 |
| Total Optical Ports | 2 | |
| 1GE SFP Ports | 2 | |
| 10/100/1000BASE-T Ports | 8 | |
| 1GE Combo Ports | No | |
| 10GE SFP+ Ports | No | |
| 10/100BASE-T Ports | No | |
| 10/100/1000/2500BASE-T Ports | No | |
| 100/1000/2.5G/5G/10GBASE-T Ports | No | |
| System Performance | Forwarding Rate | 14.88 Mpps |
| Switching Capacity | 20 Gbps | |
| Reliability & Environment | MTBF | 400,000 hours |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) | |
| Operating/Storage Altitude | –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) | |
| Surge Protection (Service Port) | ±6 kV (common mode) | |
| Surge Protection (Power) | ±4 kV (common mode), ±2 kV (differential mode) | |
| Software Features | PoE Watchdog | No |
| Jumbo Frame Length (MTU) | 9216 bytes (global config) | |
| Port Isolation | Yes | |
| Broadcast Storm Control |
