Ceiling AP, Ruijie Reyees Products, SMB

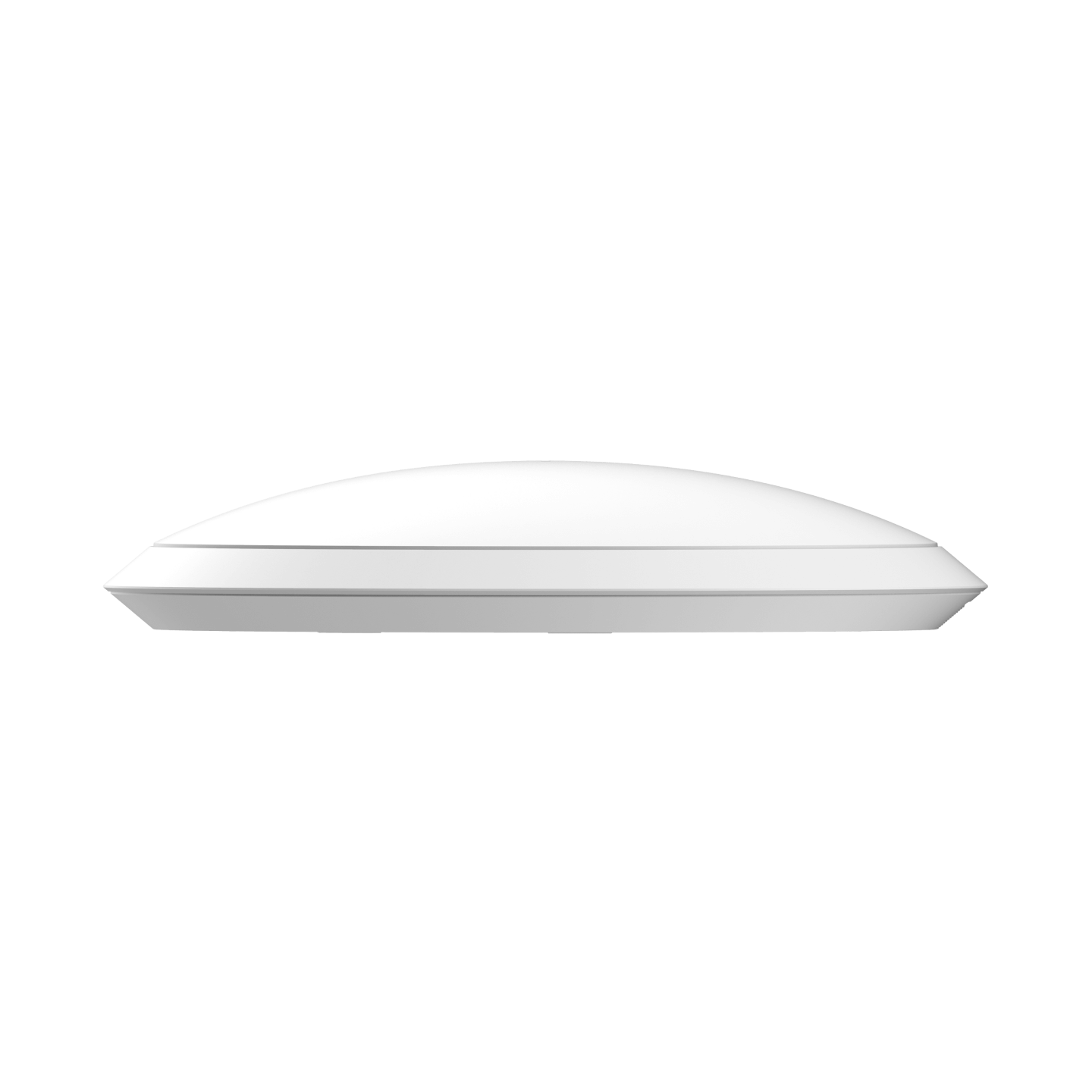

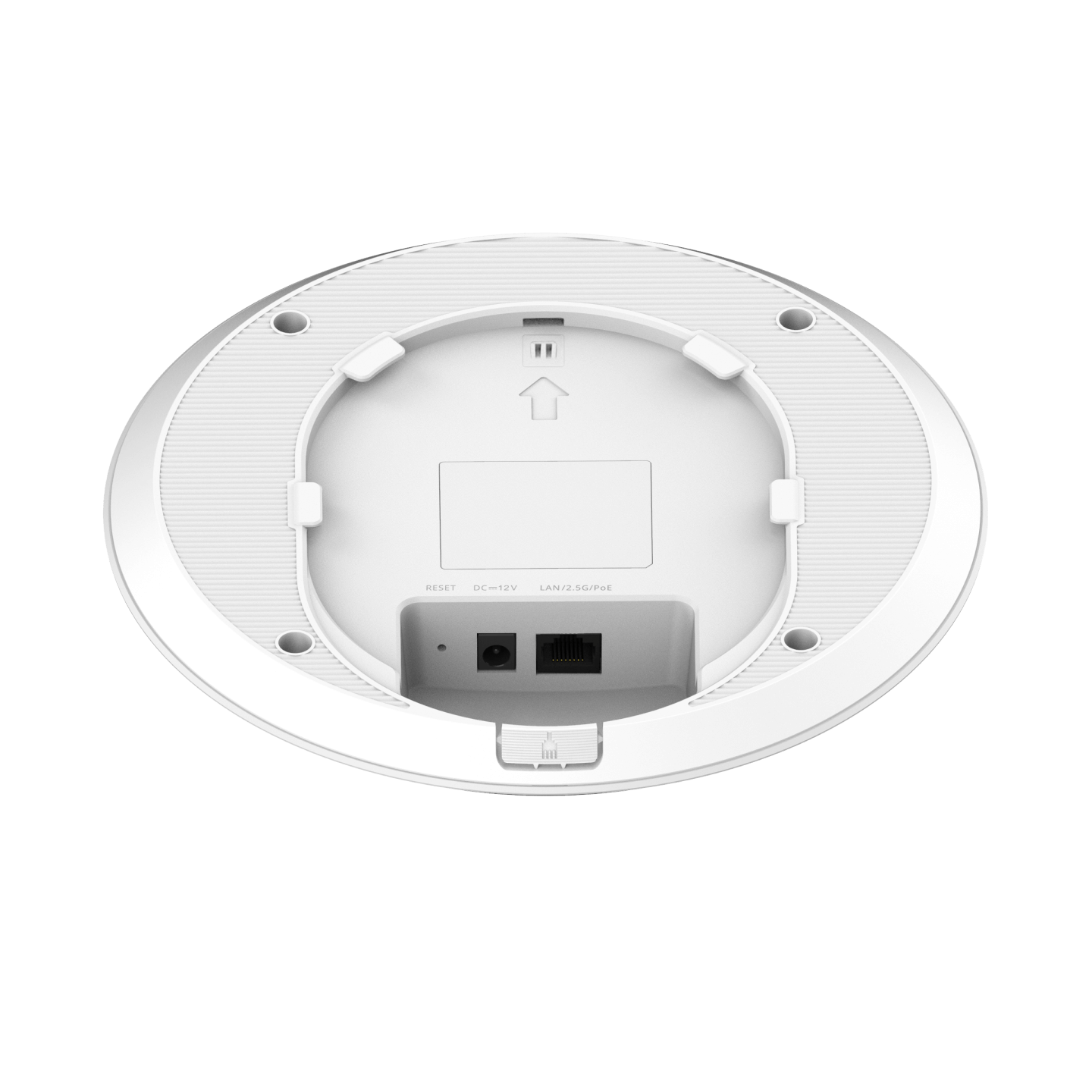

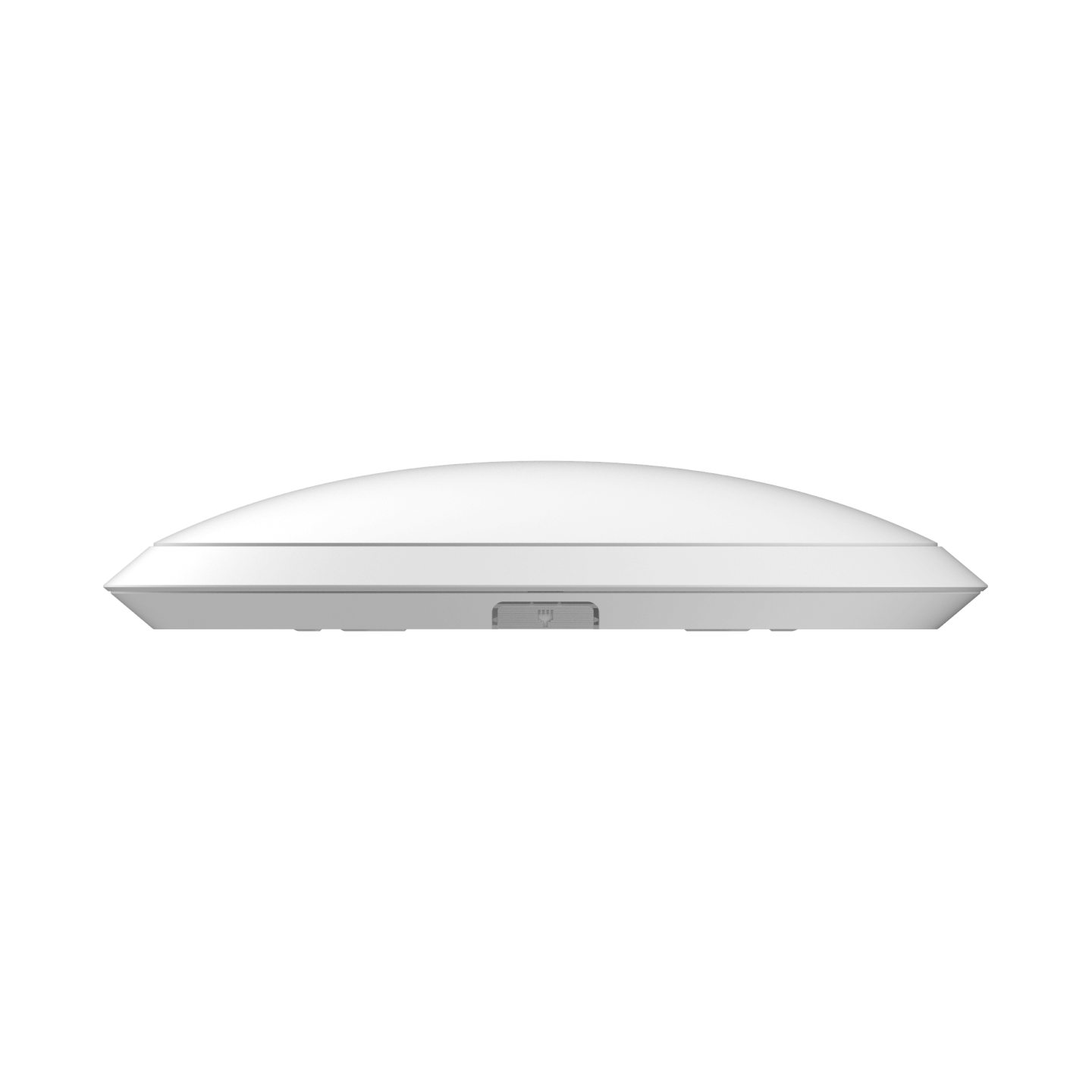

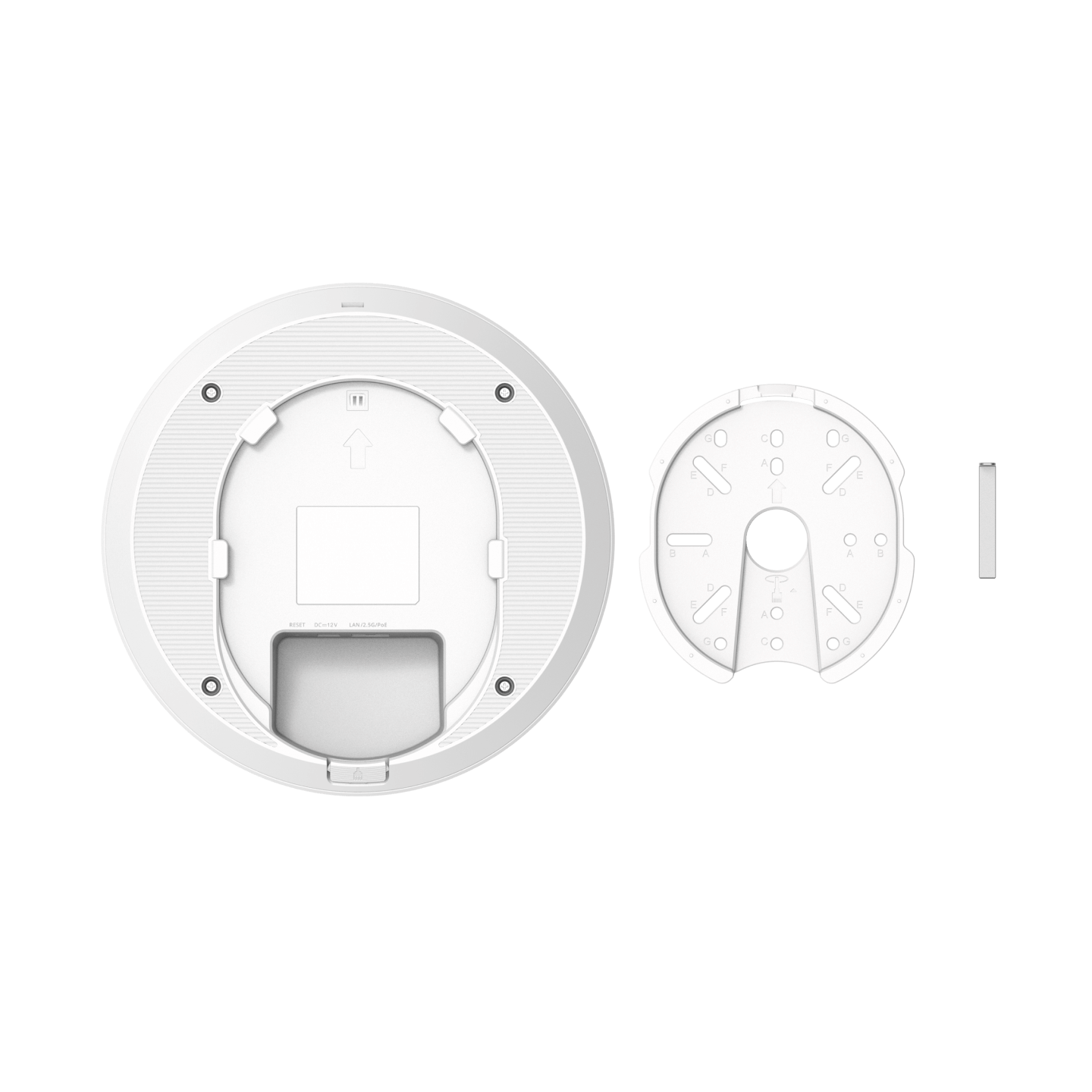

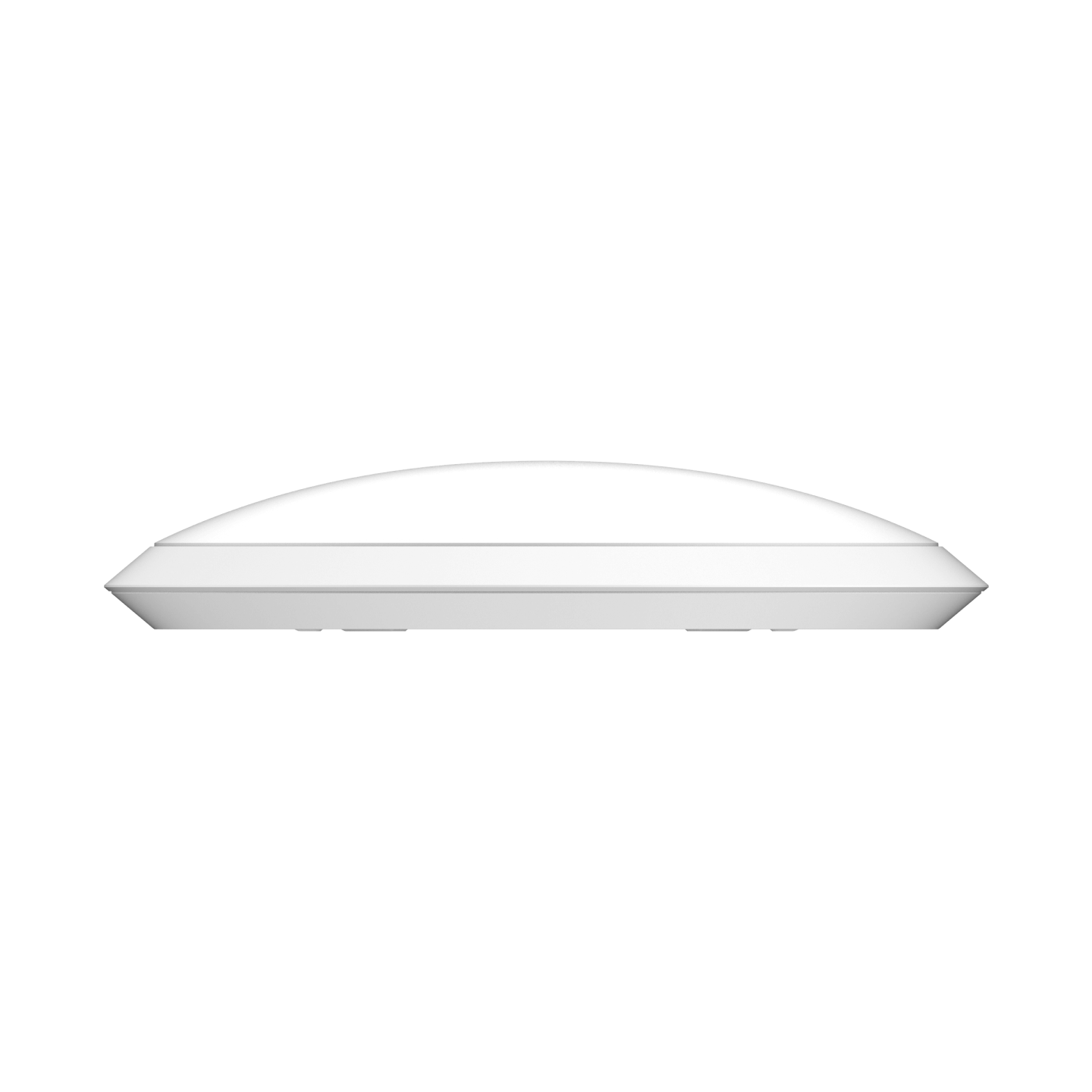

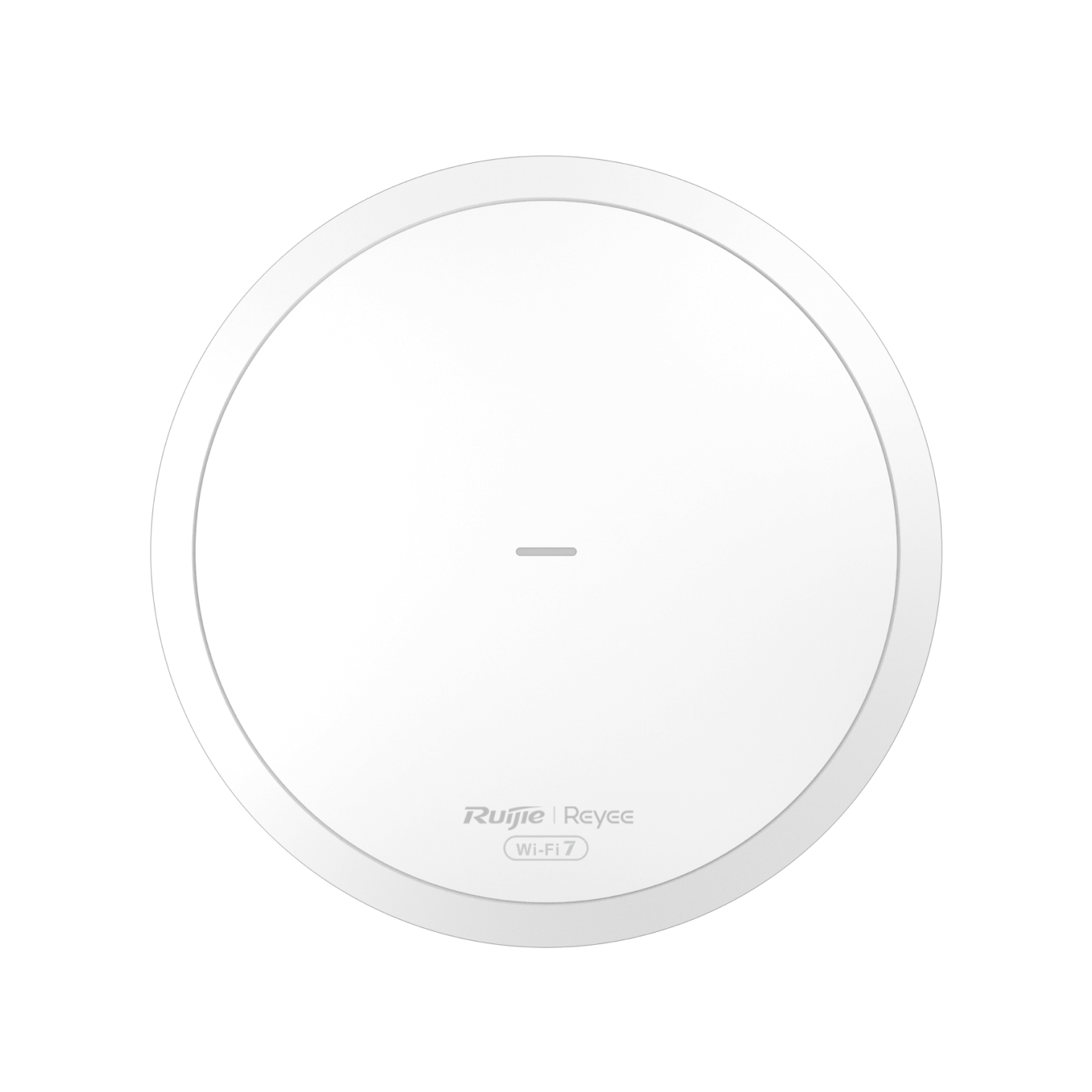

Ruijie Reyee RG-RAP72, Wi-Fi 7 BE3600 Ceiling-Mount Access Point
Wi-Fi7 BE3600 dual-band ceiling access point;2.4GHz/5GHz dual-radio, high throughput with 4 spatial streams; 1 x 100/1000/2500BASE-T port; Support AP and routing mode. Unified networking and management via Ruijie Cloud and Ruijie Reyee App.Maximum power consumption ＜ 14W; Support 802.3at PoE and 12V DC power supply
$157.43
| Feature | Specification |
| Product Type | Ceiling Access Point (AP) |
| Radio Design |
Dual-radio, 4 spatial streams • 2.4 GHz: 2 x 2 MU-MIMO • 5 GHz: 2 x 2 MU-MIMO |
| Antenna Type |
• 2.4 GHz: 2 built-in omnidirectional antennas • 5 GHz: 3 built-in omnidirectional antennas |
| Max Wireless Data Rate | 3570 Mbps |
| 5 GHz Data Rate | 2882 Mbps |
| 2.4 GHz Data Rate | 688 Mbps |
| 6 GHz Support | No |
Hardware, Ports, & Physical Design
| Feature | Specification |
| Network Ports | 1 x 10/100/1000/2500BASE-T (2.5G) port |
| Dimensions | Ø195 mm x 41 mm (Ø7.68 in. x 1.61 in.) (excluding mounting bracket) |
| Weight | ≤ 0.6 kg (1.32 lbs) (without packaging) |
| Color | White |
| Mounting Options | Ceiling / Wall |
| IP Rating | IP41 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Power Specifications
| Feature | Specification |
| Power Supply Options |
• DC power adapter • PoE/PoE+ (DC adapter preferred if both are connected) |
| Local Power Supply | 1 x DC power connector (12 V, 1.5 A) |
| DC Connector Specs |
Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Depth: 10 mm (0.39 in.) |
| PoE Budget | No |
| Max Power Consumption | 14 W |
Software, Capacity, & Network Services
| Feature | Specification |
| Max Associated Clients |
• 2.4 GHz only: 64 clients • 5 GHz only: 511 clients • Dual-band enabled: 511 clients |
| Max Managed Devices | Up to 300 |
| IPv6 Support | Yes |
