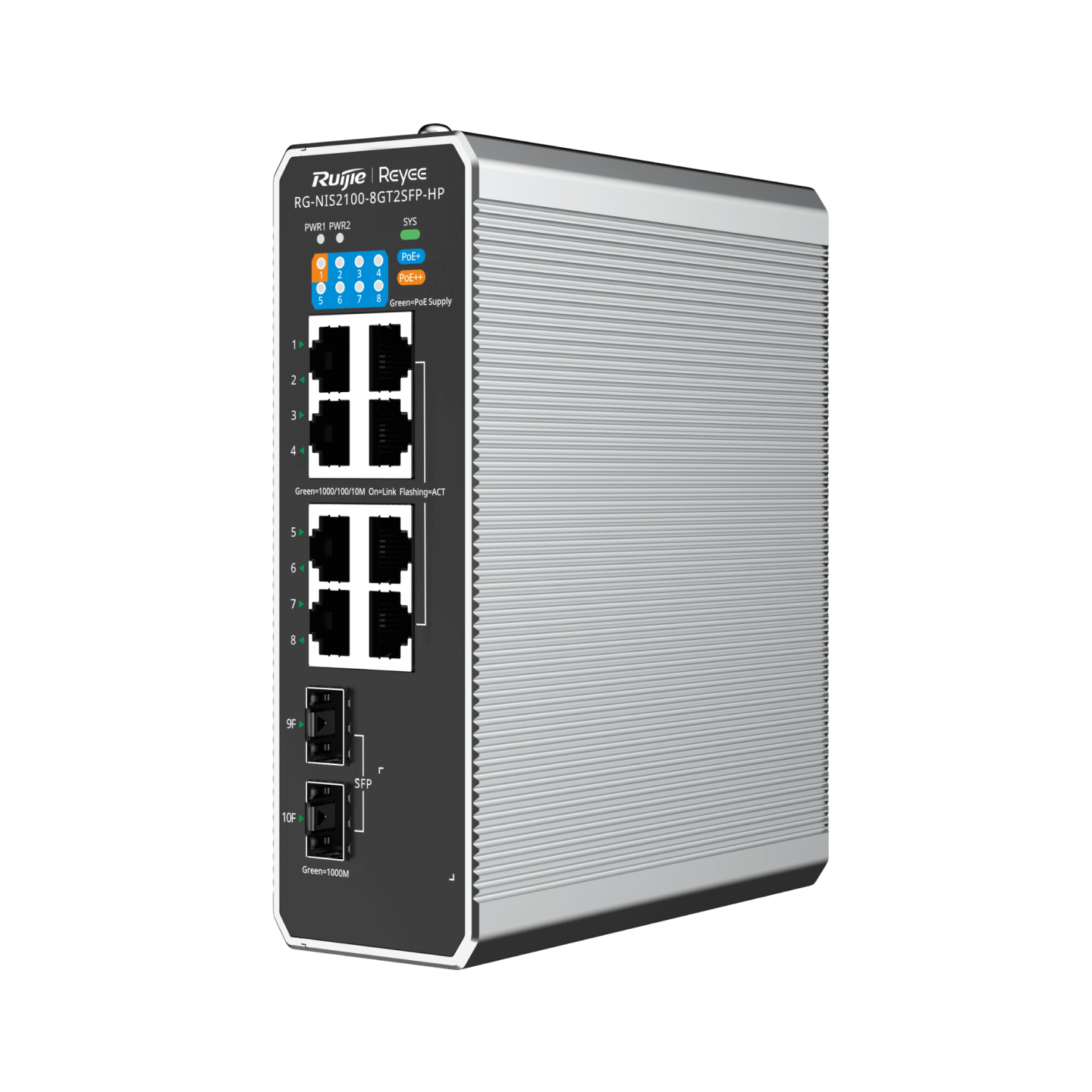

Ruijie Reyee RG-NIS2100-8GT2SFP-HP, 10-Port Cloud Managed Industrial Switch, with 1 x PoE++ Port, 7 x PoE+ Ports, and 2 x SFP Uplink Ports
8-Port RJ45 Gigabit and 2-Port SFP Cloud Managed Industrial Switch, with 7-Port PoE+ and 1-Port PoE++
$213.00
Smart Cloud-Managed Industrial PoE++ Switch Specifications Table
| Specification | Details |
| Model | RG-NIS2100-8GT2SFP-HP |
| Product Category | Layer 2 Industrial Smart Cloud-Managed Switch |
| Warranty | 1 year |

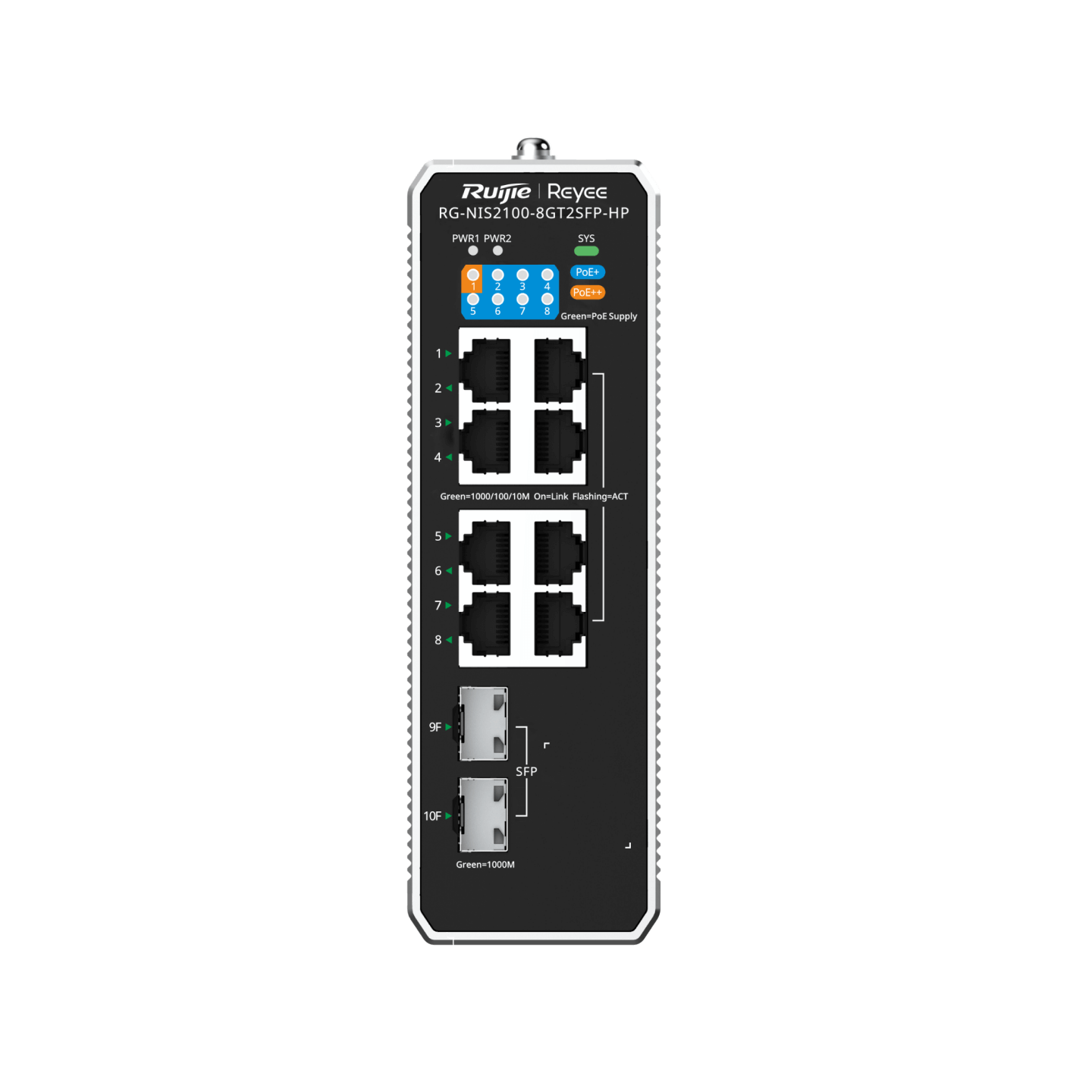

| Total Physical Ports | 10 Ports (8 x RJ45 + 2 x Optical SFP) |
| Network Interfaces |
8 x 10/100/1000BASE-T Gigabit RJ45 ports 2 x 1GE SFP optical uplink ports |
| PoE Capability |
1 x High-Power Ultra PoE++ Port (Port 1 up to 90W) 7 x PoE/PoE+ Ports (Ports 2–8 compliant with 802.3af/at) |
| PoE Power Budget |
Default: 228 W | MAX: 300 W (Dynamically adjustable via web/cloud interface depending on power supply entry) |
| PoE Power Pin Allocation |
Port 1 (PoE++): 1–2 (-), 3–6 (+), 4–5 (+), 7–8 (-) Ports 2–8 (PoE+): 1–2 (+), 3–6 (-) |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.8 Mpps |
| Operating Temperature |
-40°C to +75°C (-40°F to +167°F) (Ruggedized architecture built to endure extreme temperatures/sun-exposed outdoor enclosures) |

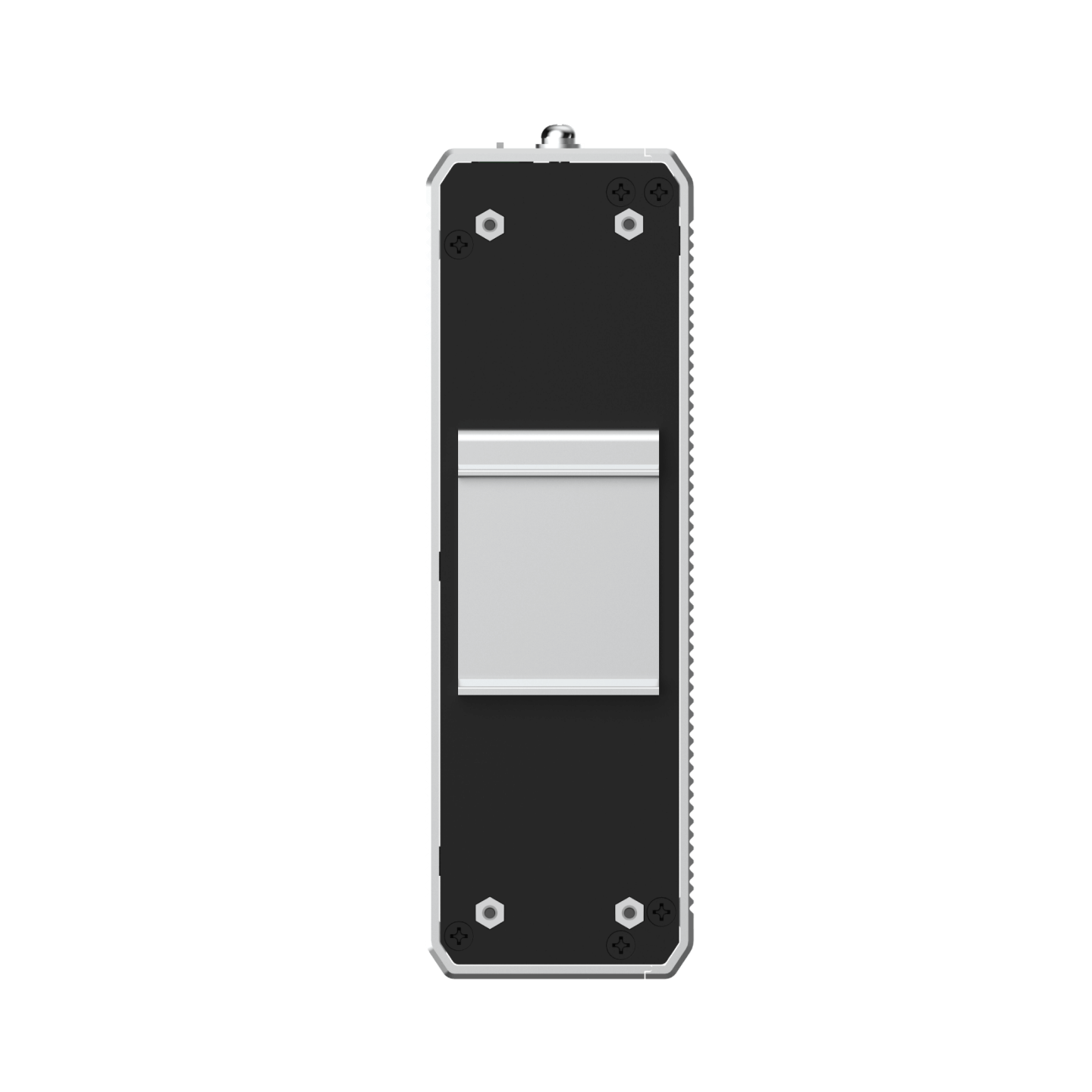

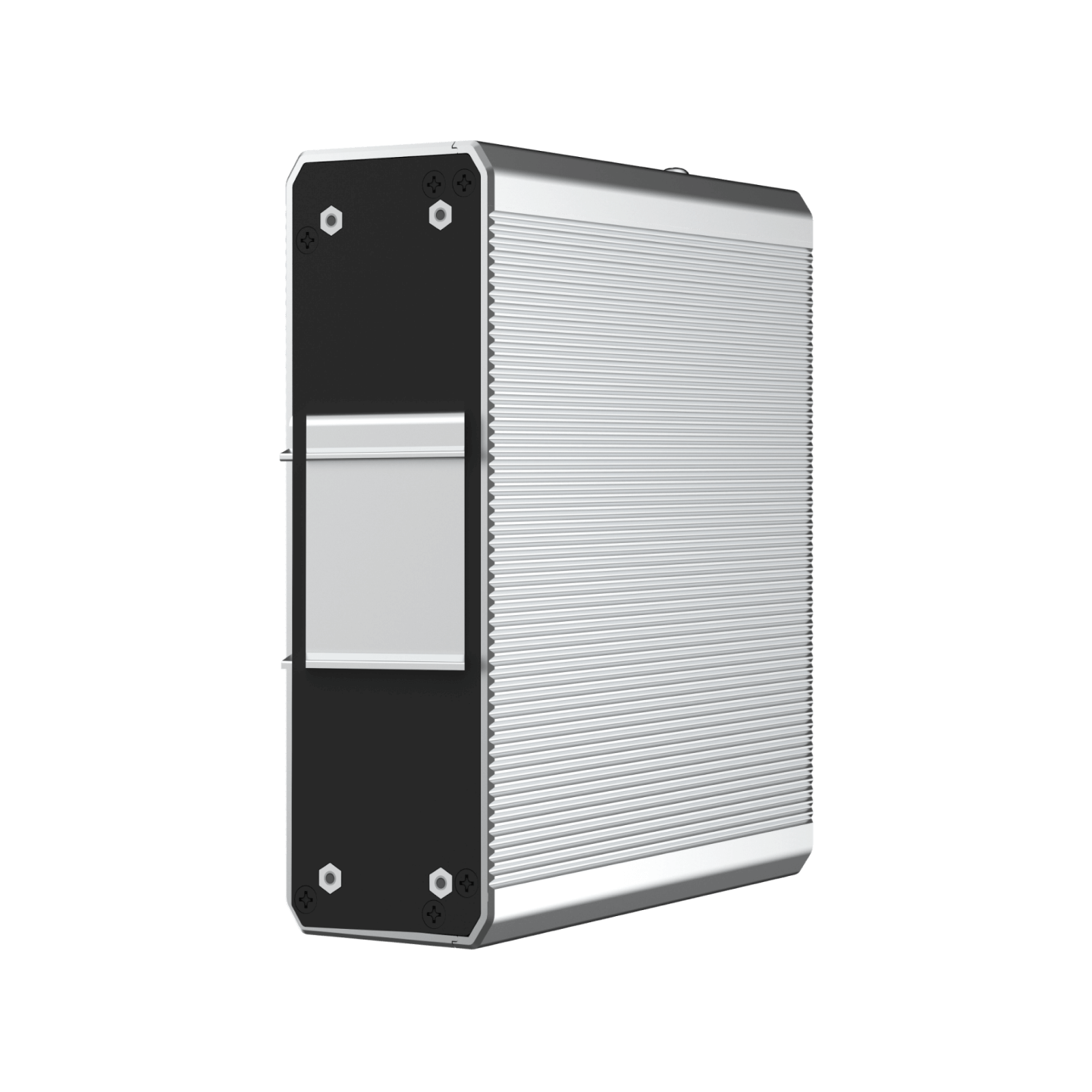

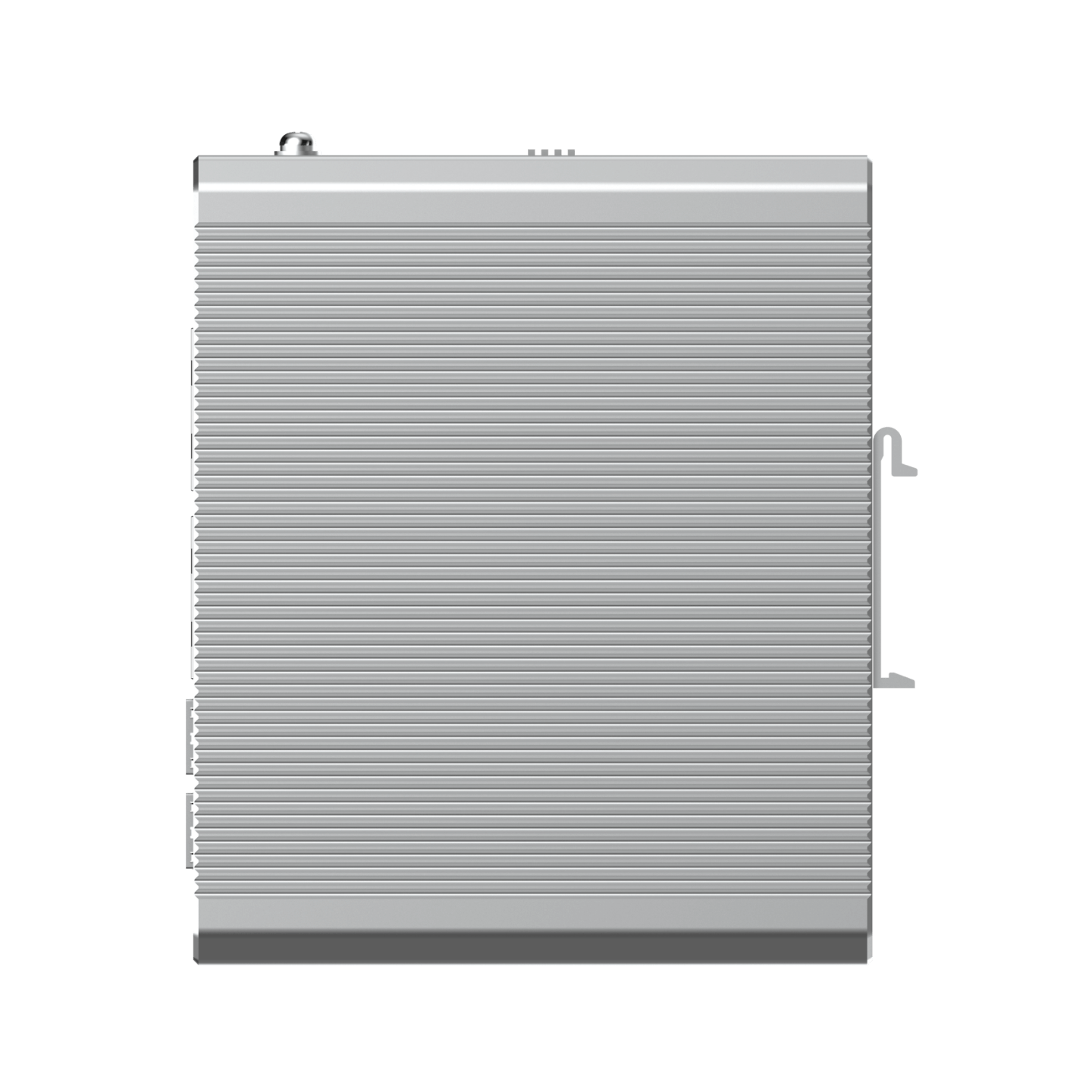

| Hardware Enclosure | Heavy-duty industrial aluminum casing (IP40 rated), built-in standard DIN-rail mount, and 6kV port surge protection |

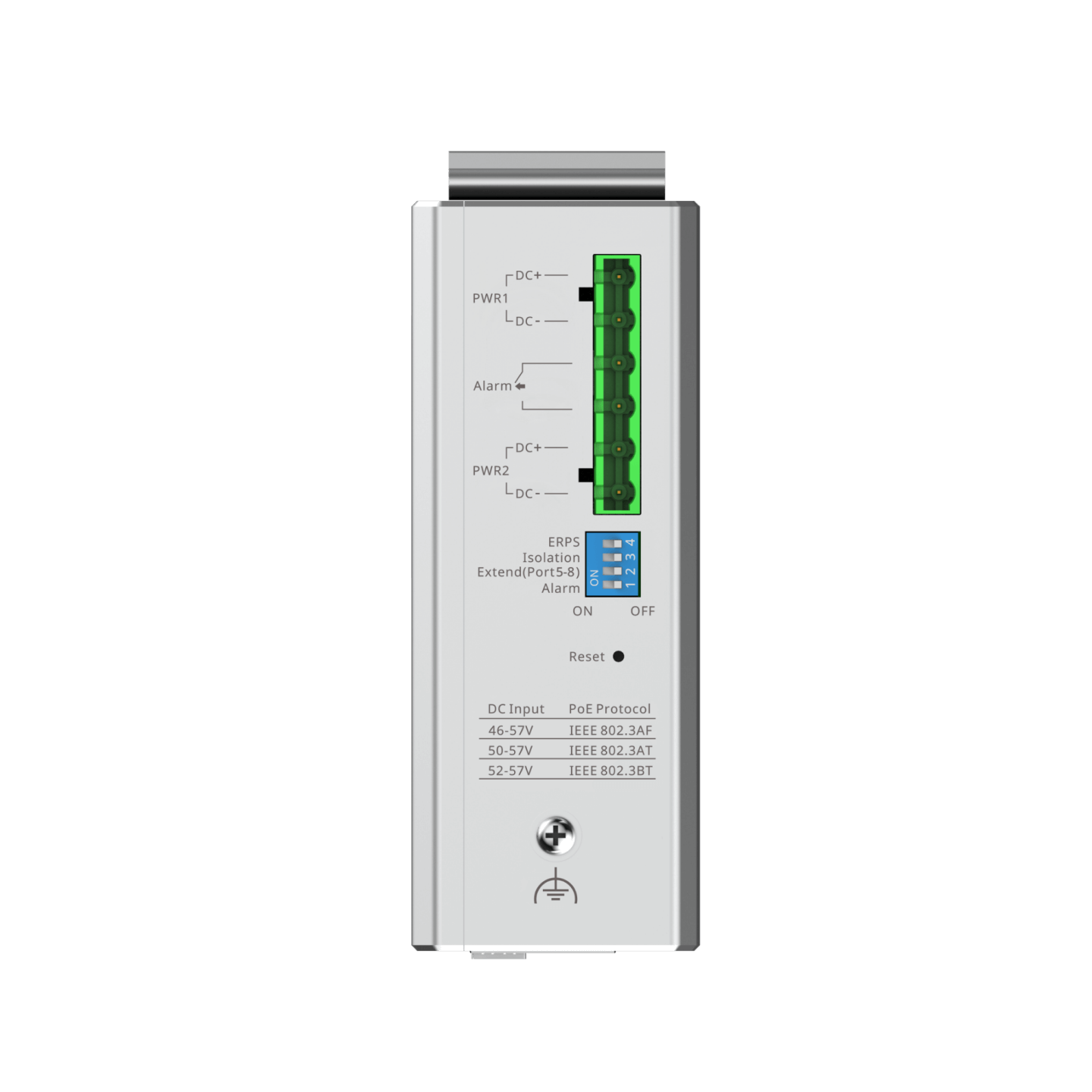

| Intelligent Maintenance | Built-in PoE Watchdog (Auto-reboots frozen nodes), physical DIP switch control (Instant ERPS loop protection ring configuration or standard isolation modes) |
| Network Security | Hardware Port Isolation support |
