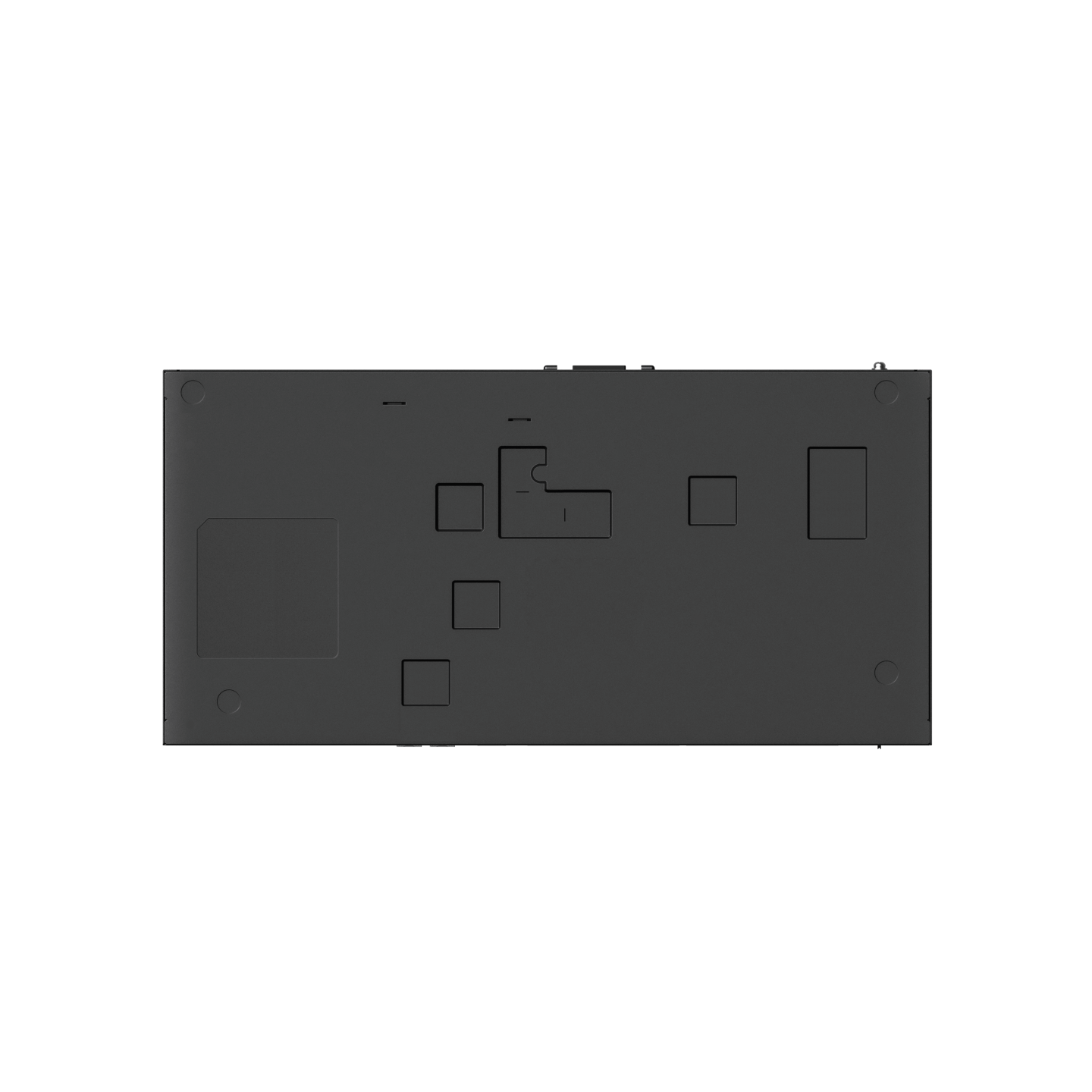

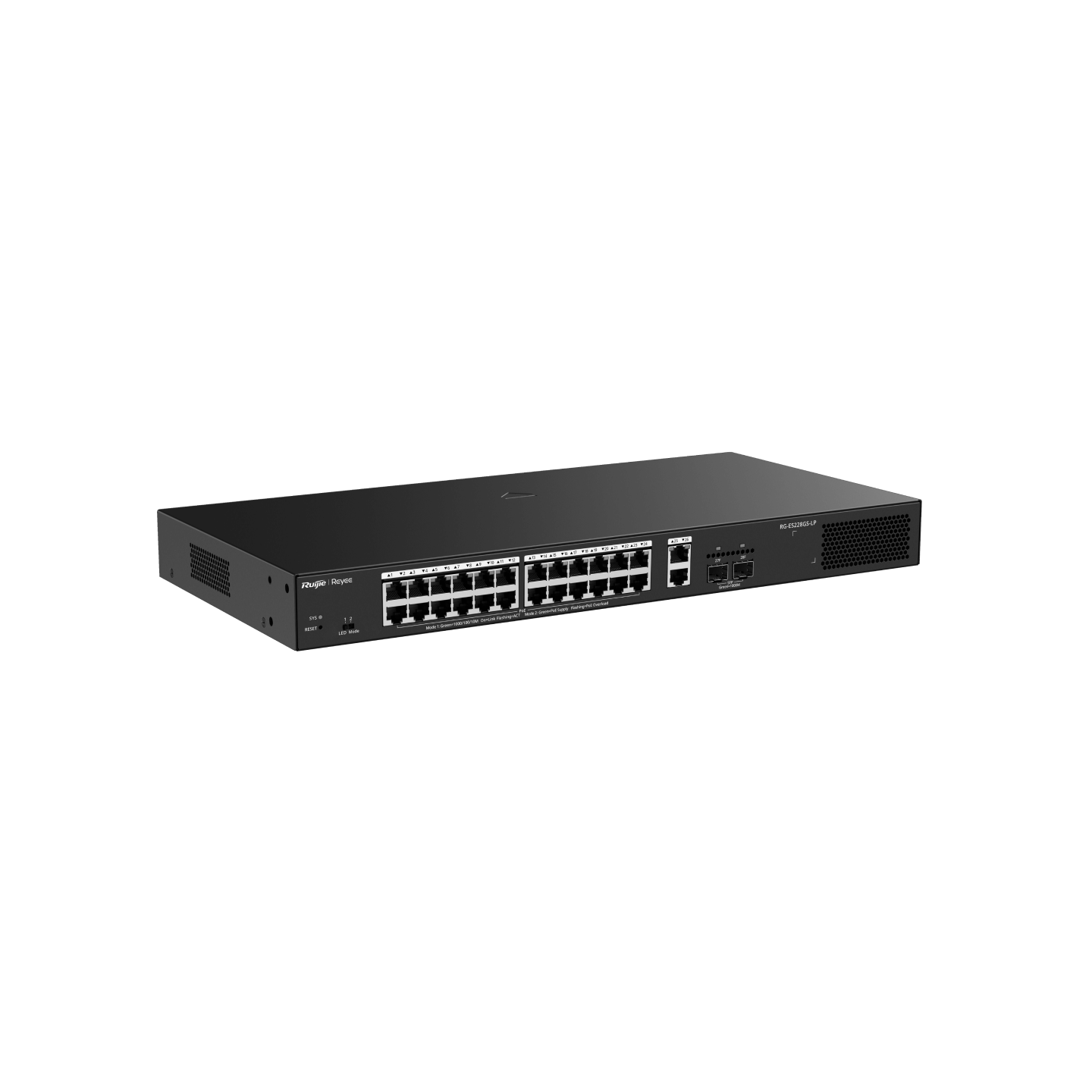

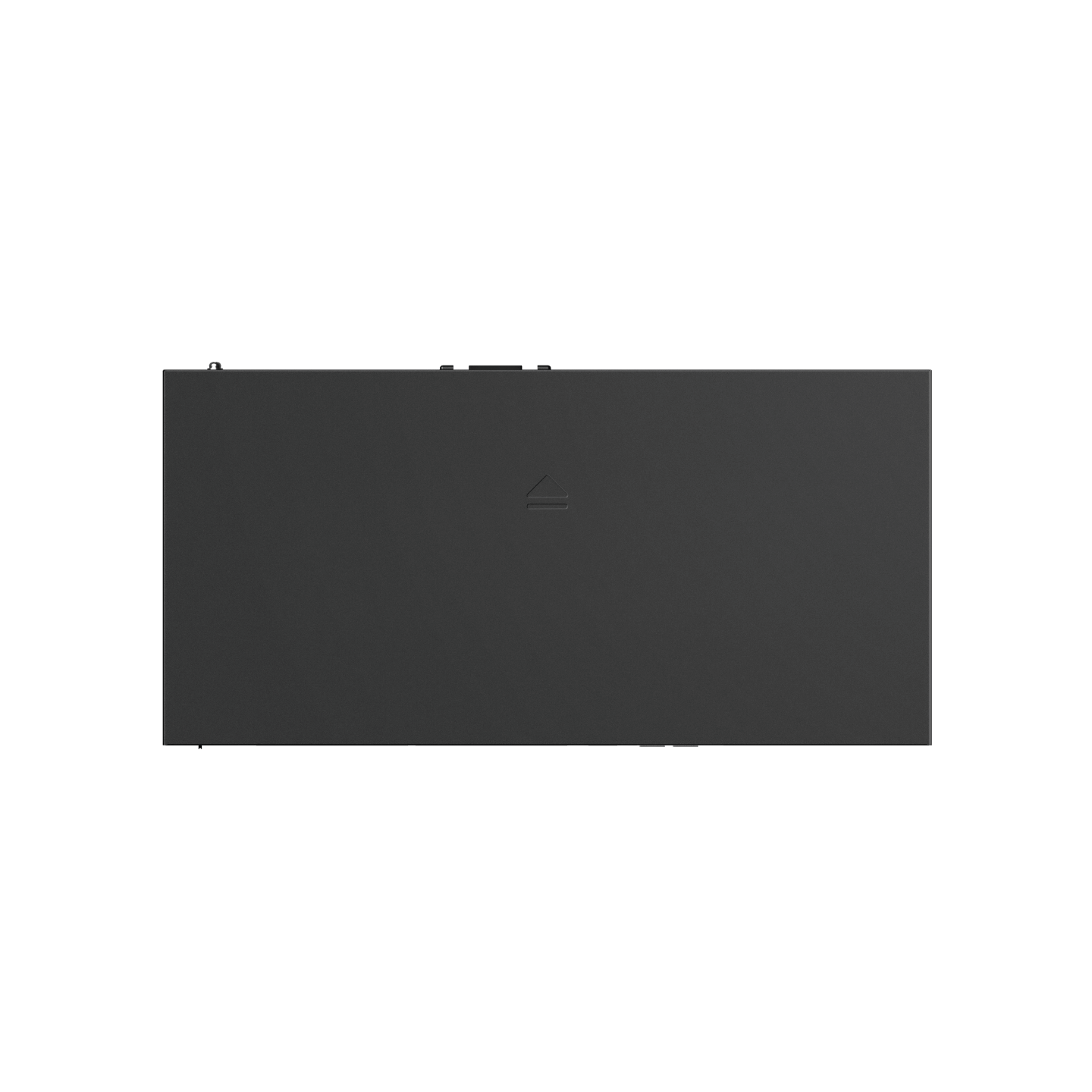

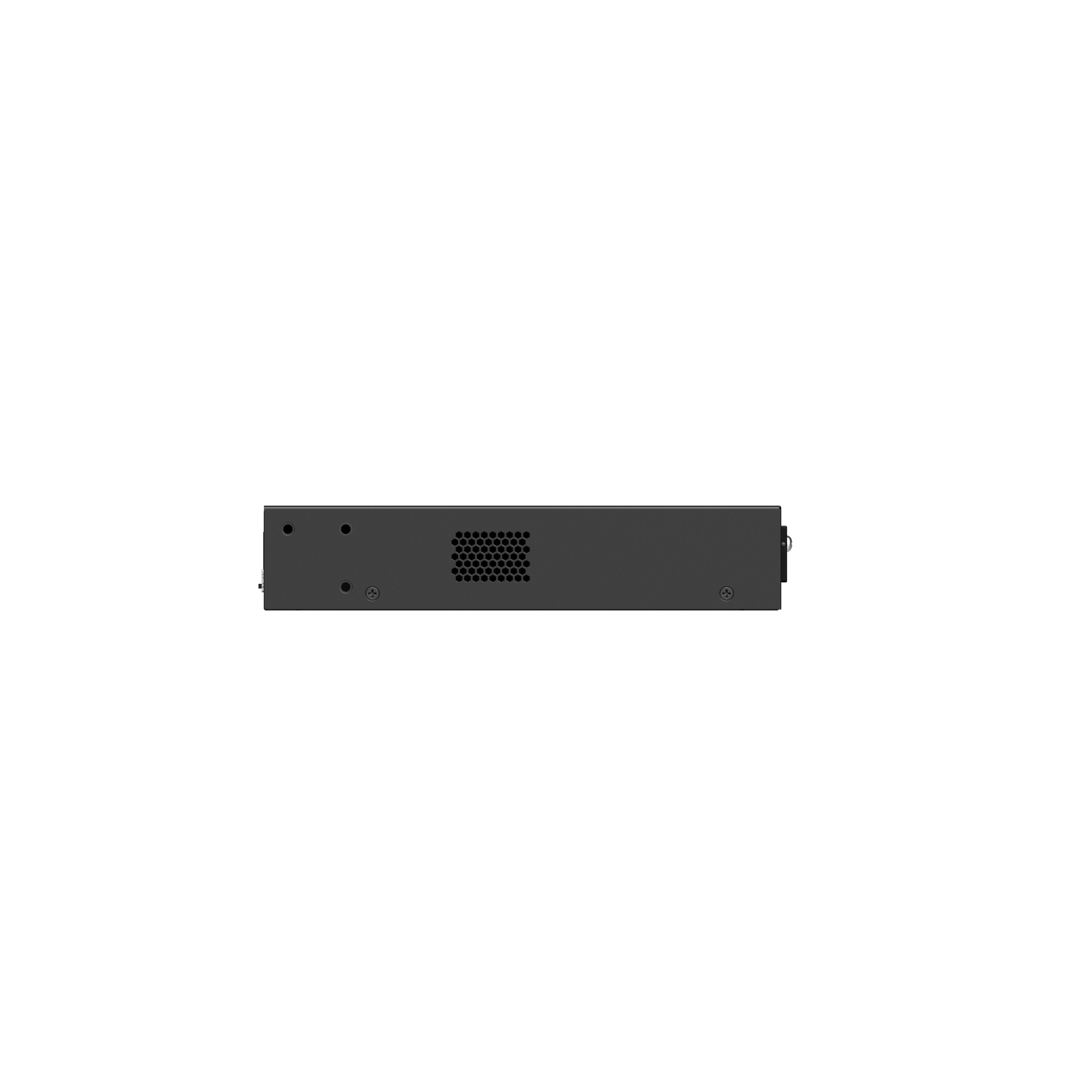

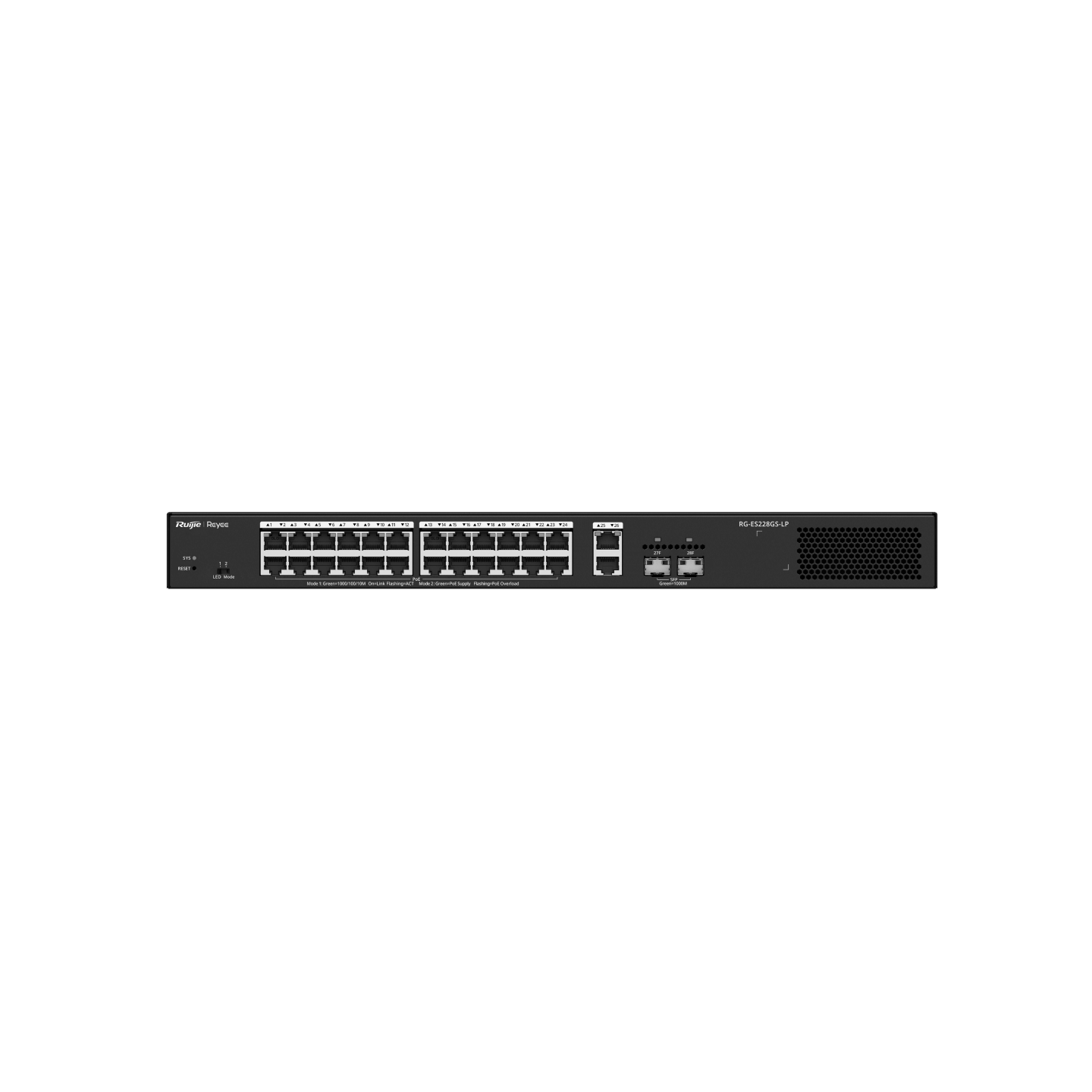

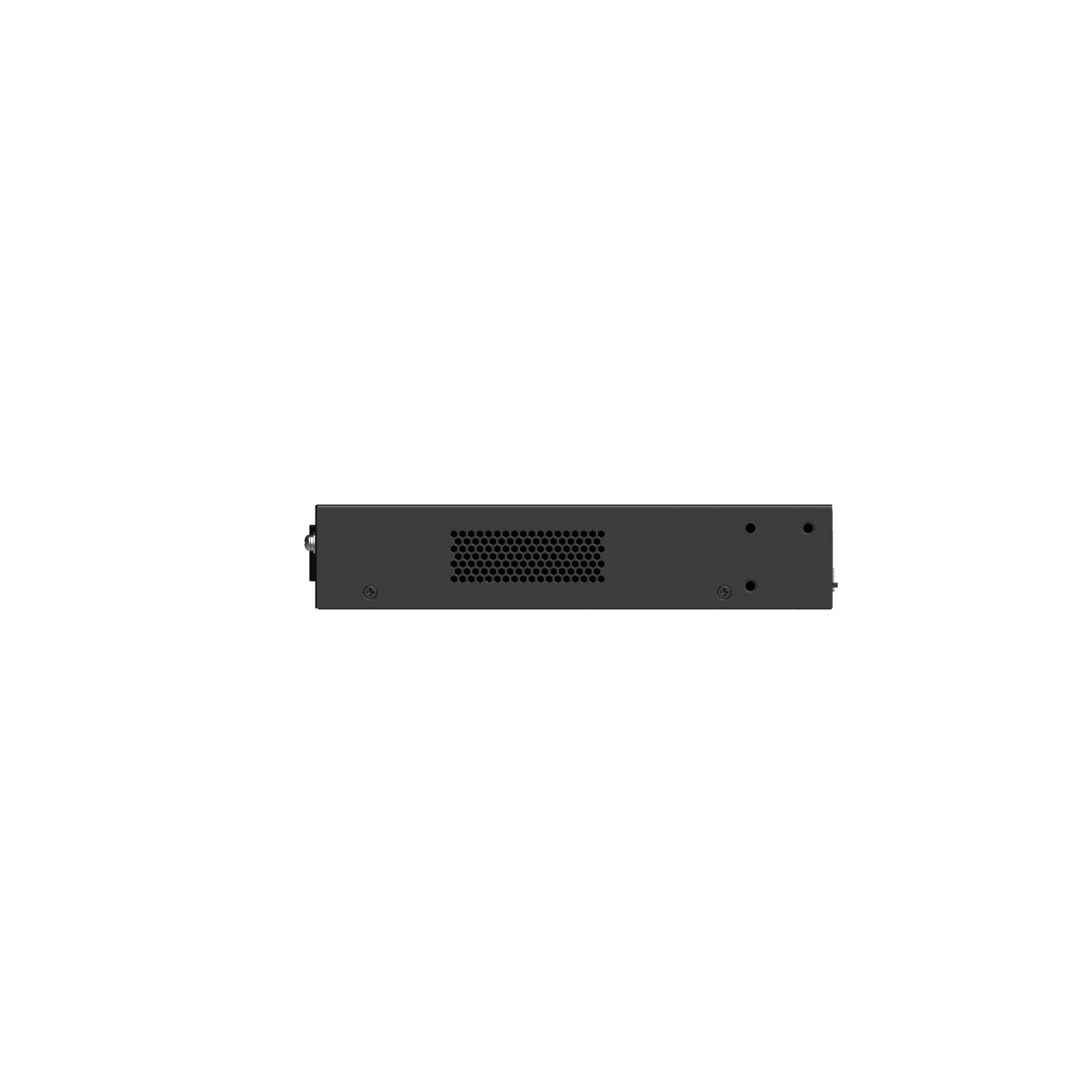

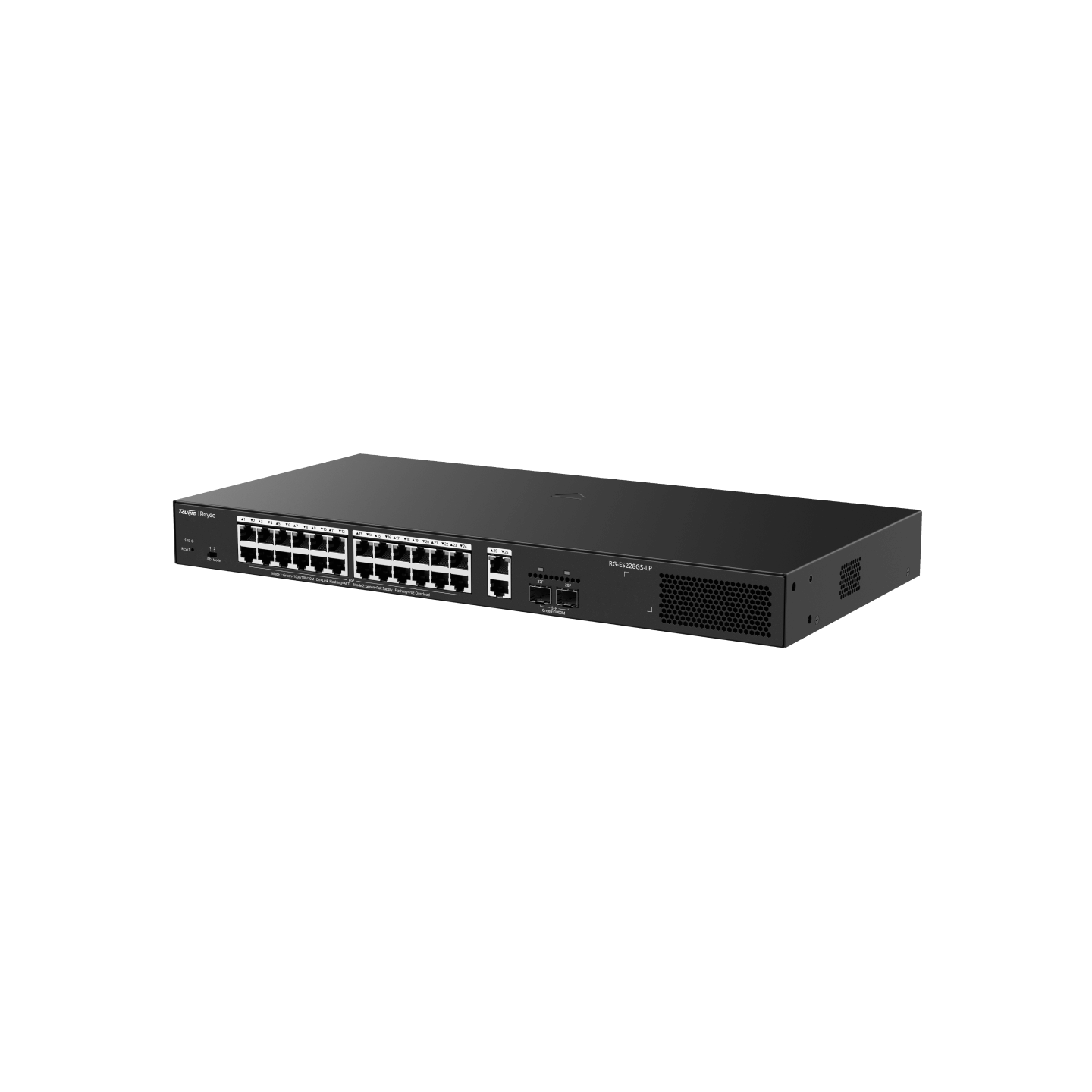

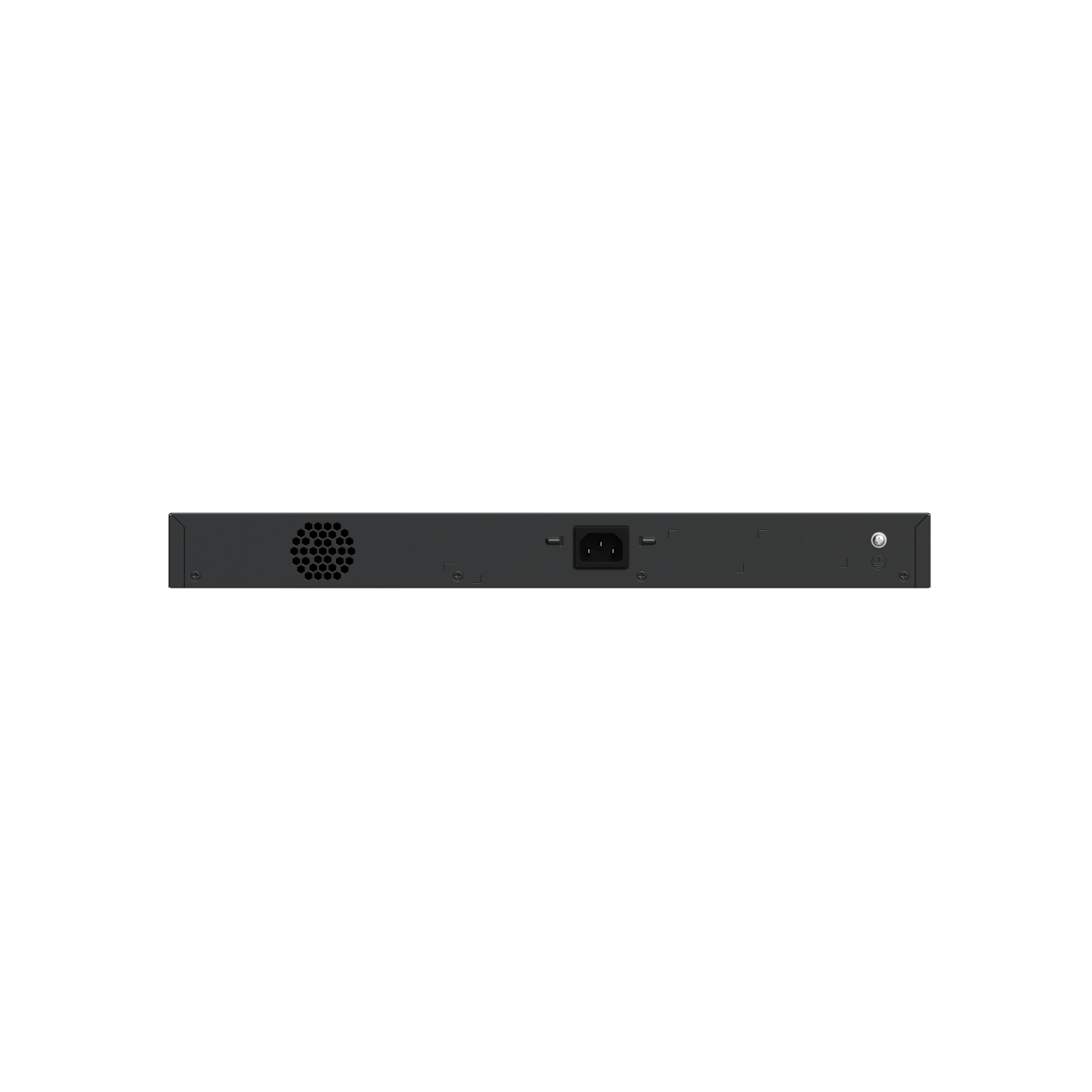

Ruijie Reyee RG-ES228GS-LP, 28-Port Gigabit Smart Cloud Managed PoE Switch
24-Port 10/100/1000 Mbps PoE+, 2-Port Gigabit and 2-Port SFP Cloud Managed Switch, 250W
$230.00
Smart Cloud-Managed PoE+ Switch Specifications Table
| Specification | Details |
| Model | RG-ES228GS-LP |
| Product Category | Layer 2 Smart Cloud-Managed Switch |
| Warranty | 1 year |
| Total Physical Ports | 28 Ports (26 x RJ45 + 2 x Optical SFP) |
| Network Interfaces |
26 x 10/100/1000BASE-T Gigabit RJ45 ports 2 x 1GE SFP optical uplink ports |
| PoE Capability | Total 24 x PoE Out ports (IEEE 802.3af/at PoE/PoE+ compliant) |
| PoE Power Budget | 250 W |
| PoE Power Pin Allocation | 1–2 (+), 3–6 (-) |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.664 Mpps |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Intelligent Maintenance | Built-in PoE Watchdog / Perpetual PoE (Automatically detects and power-cycles frozen cameras without interrupting other ports) |
| Network Security | Hardware Port Isolation support |
