ES2 Switch, Ruijie Reyees Products, SMB

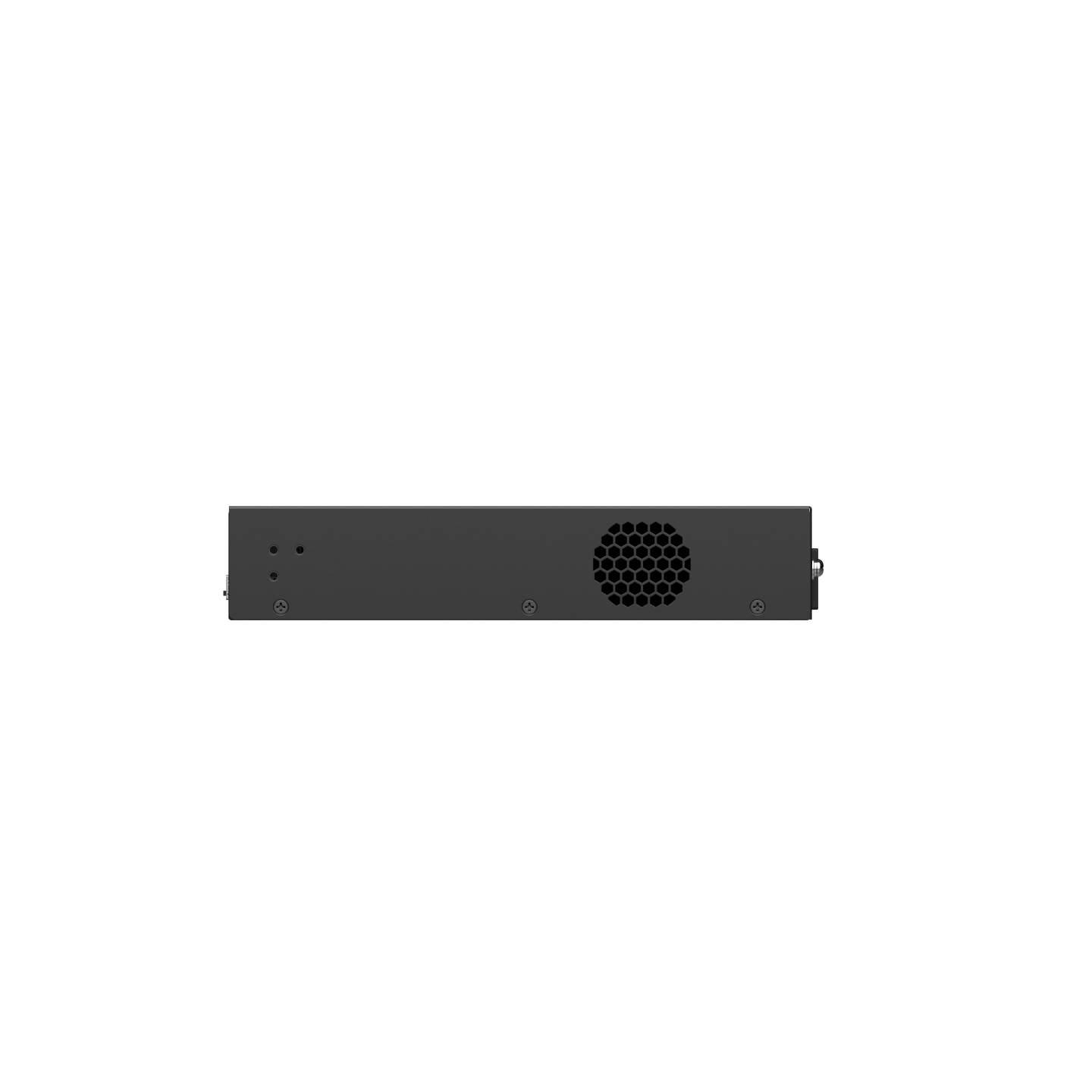

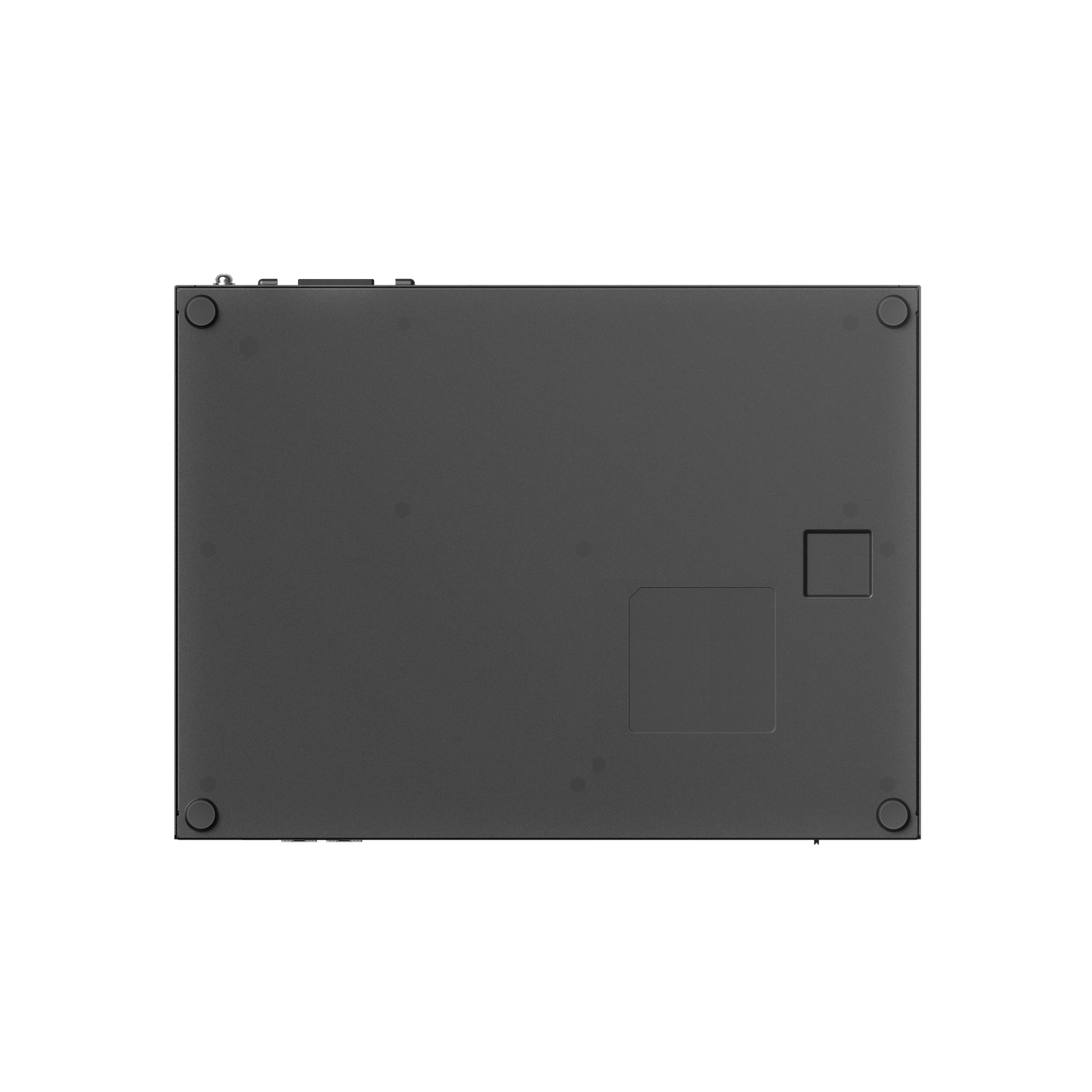

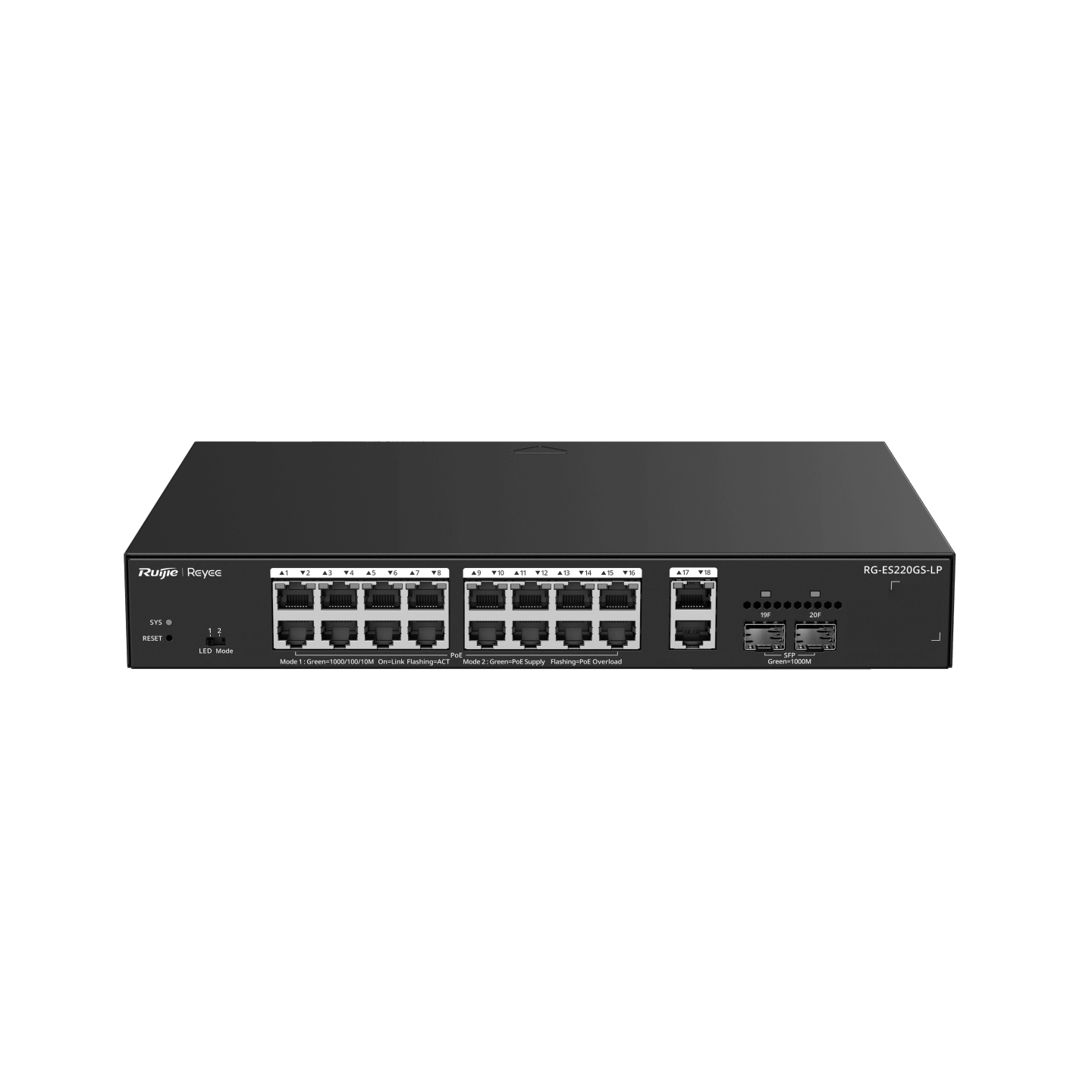

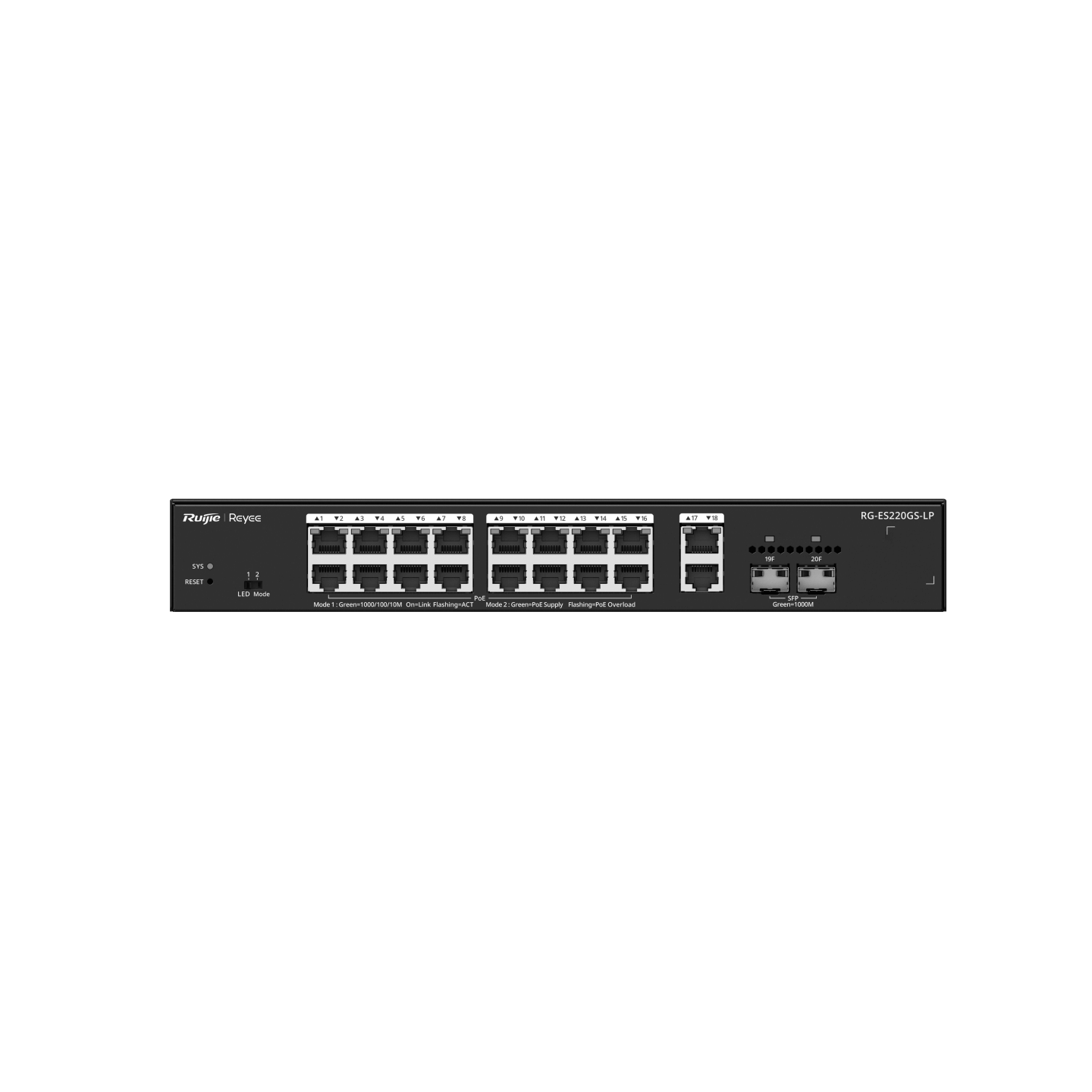

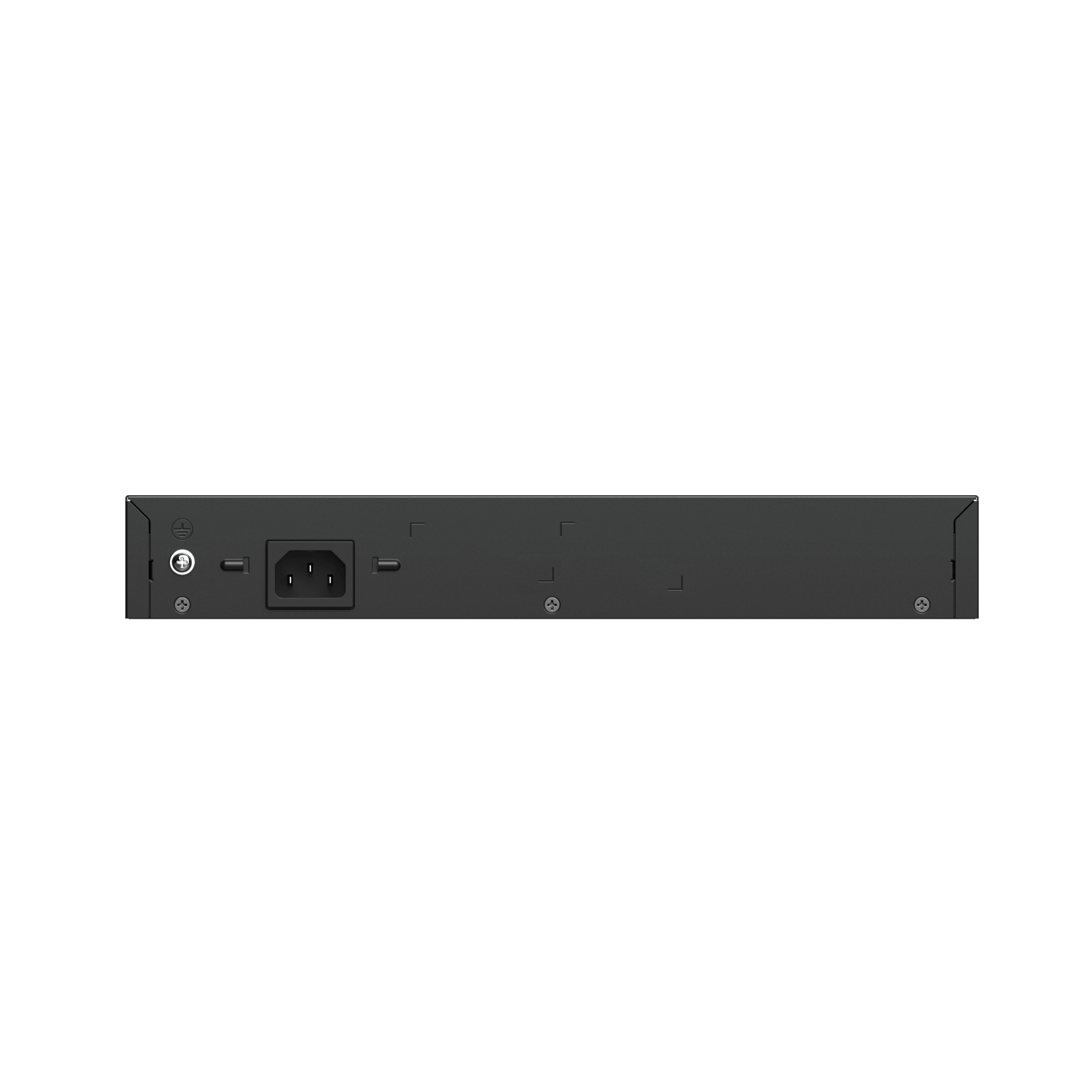

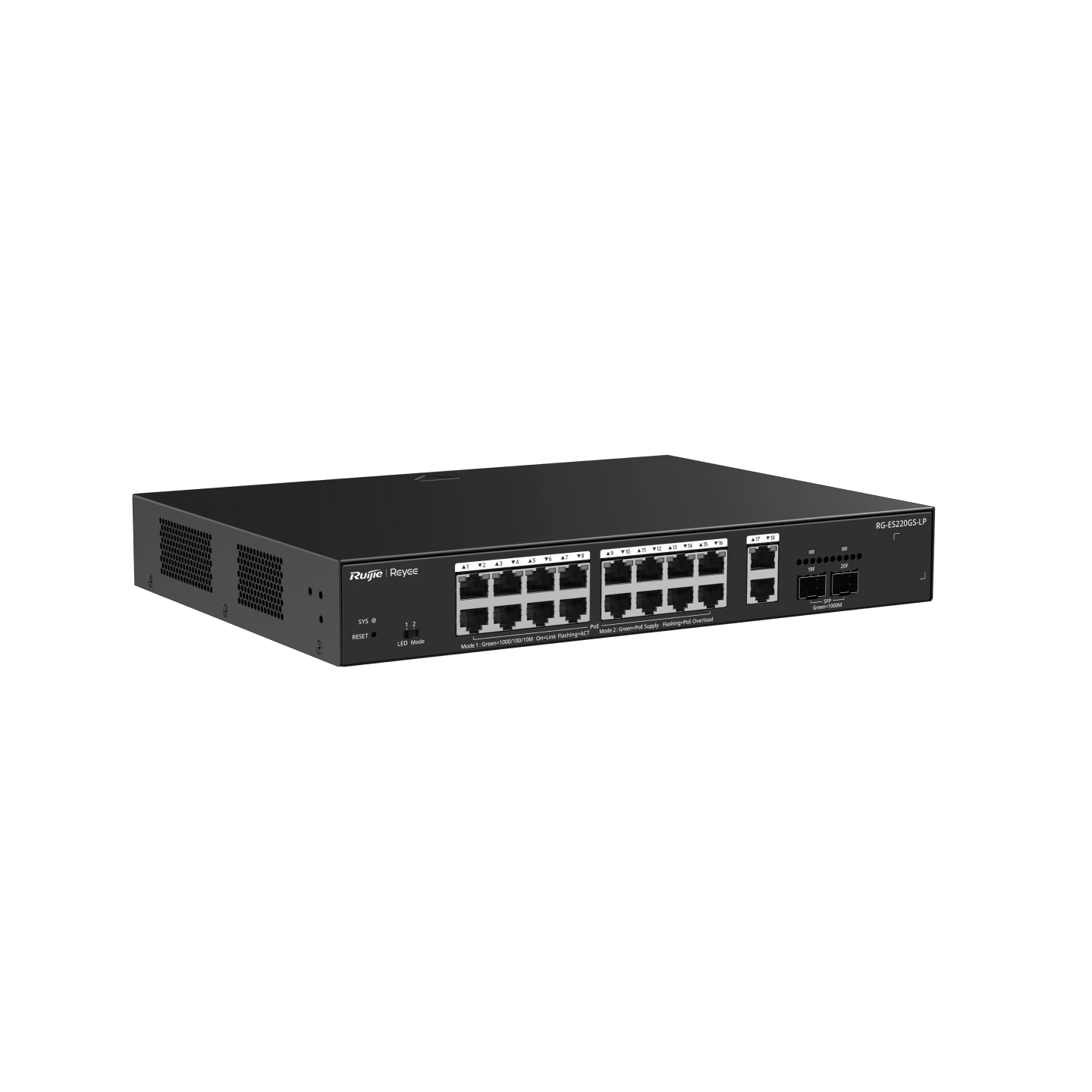

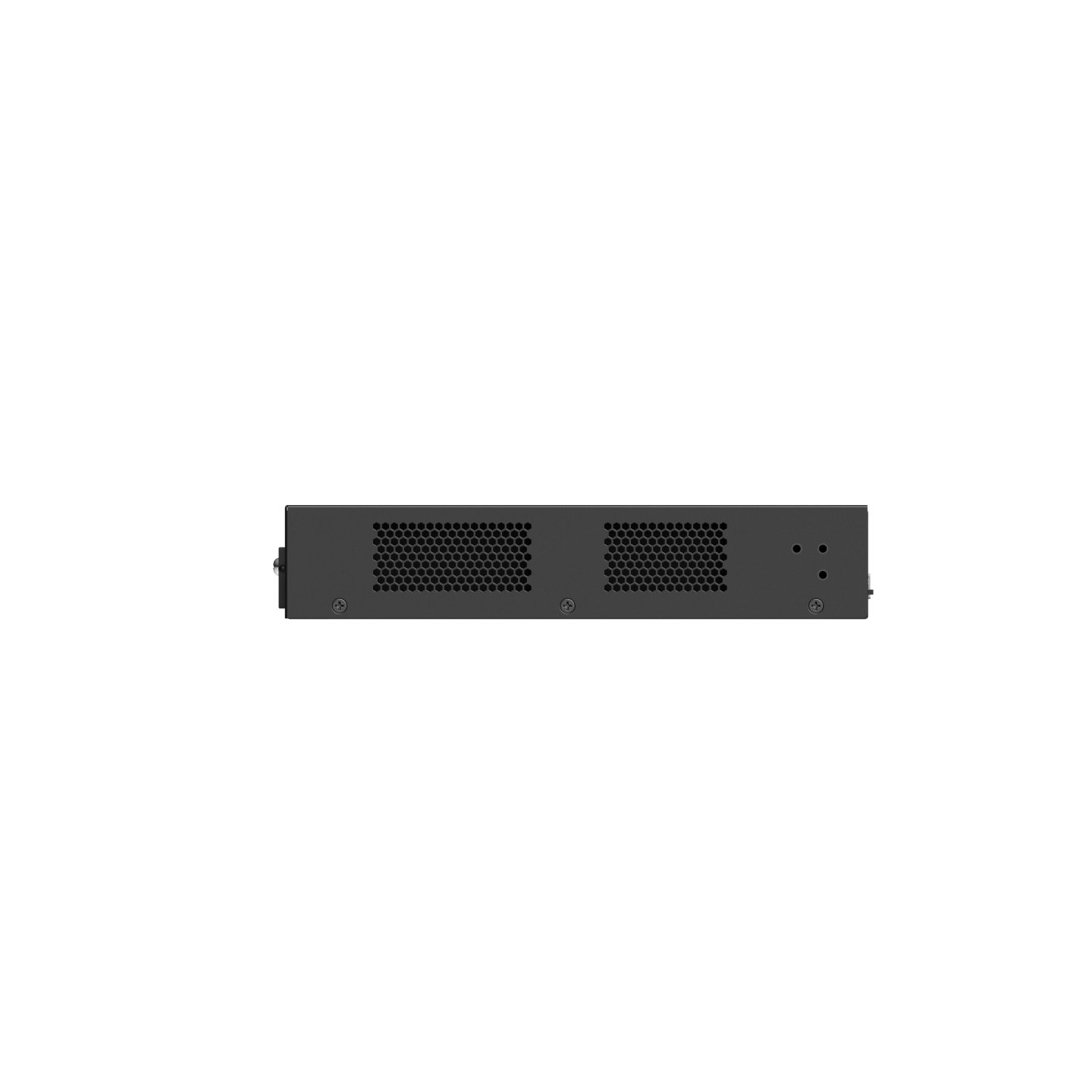

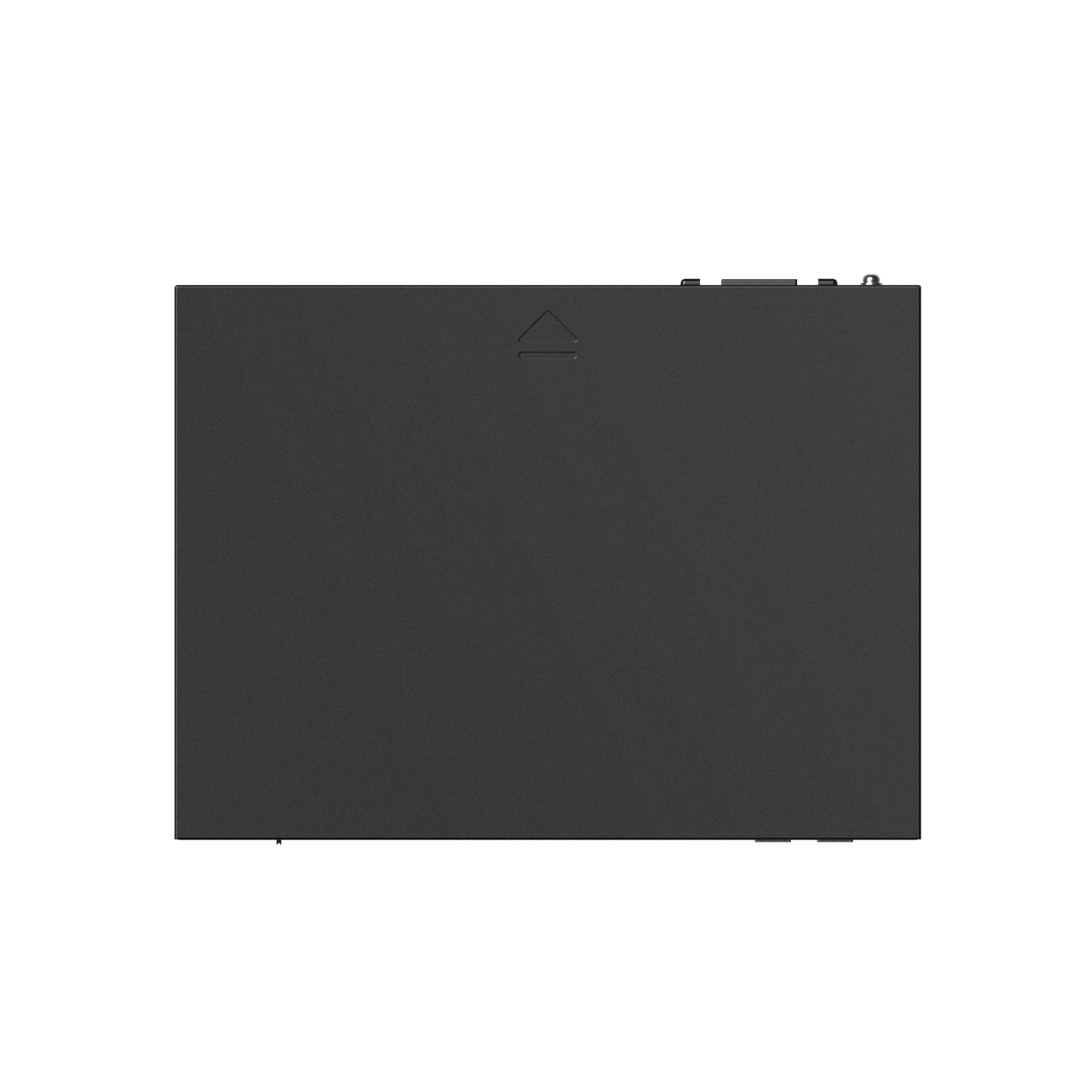

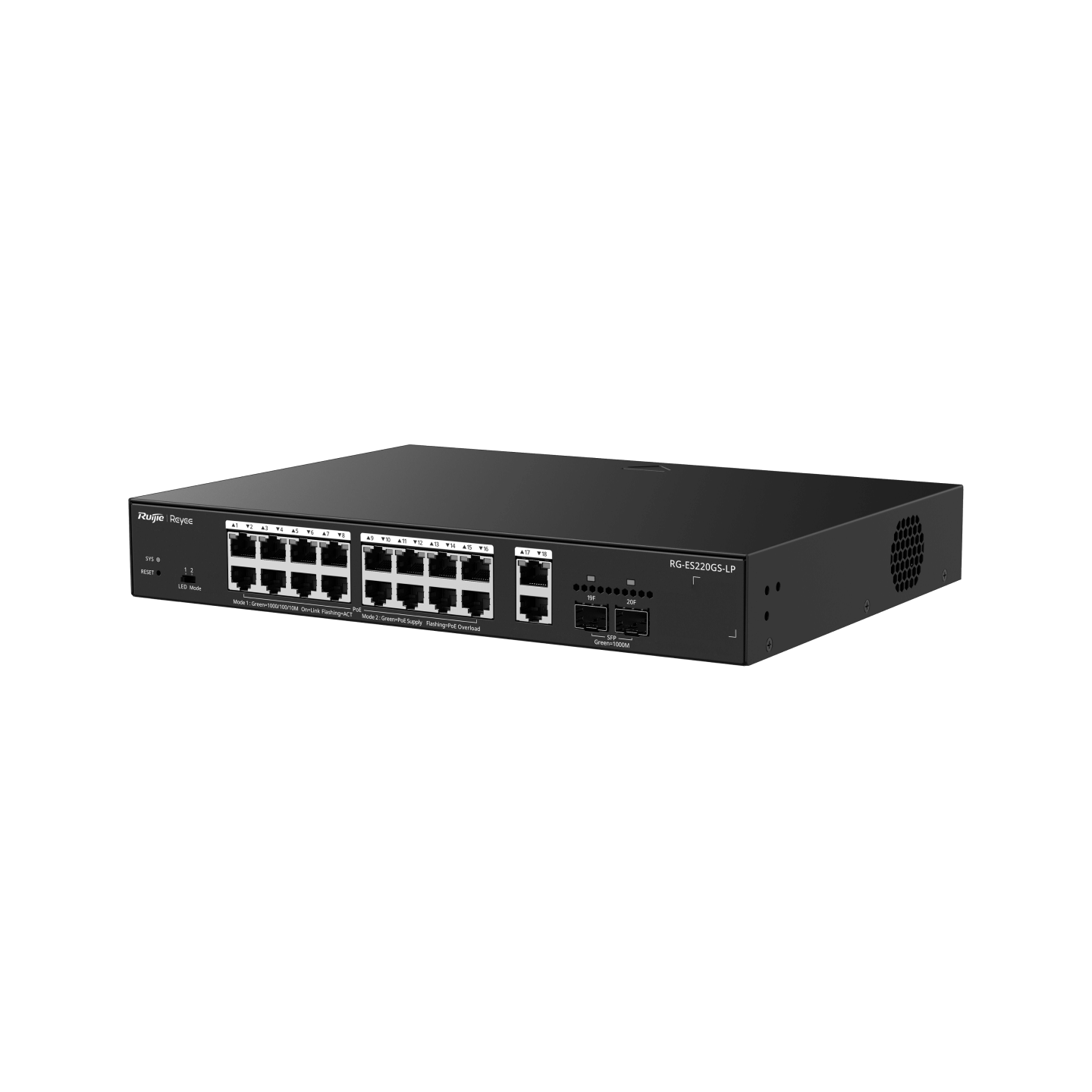

Ruijie Reyee RG-ES220GS-LP, 20-Port Gigabit Smart Cloud Managed PoE Switch
16-Port 10/100/1000 Mbps PoE+, 2-Port Gigabit and 2-Port SFP Cloud Managed Switch, 130W
$170.00
Smart Cloud-Managed PoE+ Switch Specifications Table
| Specification | Details |
| Model | RG-ES220GS-LP |
| Product Category | Layer 2 Smart Cloud-Managed Switch |
| Warranty | 1 years |
| Total Physical Ports | 20 Ports (18 x RJ45 + 2 x Optical SFP) |
| Network Interfaces |
18 x 10/100/1000BASE-T Gigabit RJ45 ports 2 x 1GE SFP optical uplink ports |
| PoE Capability | Total 16 x PoE Out ports (IEEE 802.3af/at PoE/PoE+ compliant) |
| PoE Power Budget | 130 W |
| PoE Power Pin Allocation | 1–2 (+), 3–6 (-) |
| Switching Capacity | 40 Gbps |
| Forwarding Rate | 29.76 Mpps |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Intelligent Maintenance | Built-in PoE Watchdog / Adaptive PoE (Automatically tracks and reboots frozen IP cameras or access points) |
| Network Security | Hardware Port Isolation support |
