Ruijee Reyee RG-RAP2266, Reyee Wi-Fi 6 AX3000 Indoor Ceiling-Mount Access Point
AX3000 Wi-Fi 6 dual-band Gigabit ceiling mount Indoor AP Specifications: Built-in antennas, 2.4GHz/5GHz dual-radio, 802.11a/b/g/n/ac Wave1/Wave2/ax protocol;1×10/100/1000 Base-T portSupport AP and routing mode, layer 2 and layer 3 roaming, Reyee unified networking and Ruijie Cloud app management. Support 802.3at PoE-in and local power supply, DC 12V/2A (Note: The power adapter is sold as an optional accessory), max power ＜18W. The power supply output should be higher than AP max power consumption. If supplied by non-standard PoE adapter, config the “PoE settings“——“PoE mode” in website to “IEEE 802.3at“
$110.72
Ruijie Reyee RG-RAP2260(H) Access Point Specifications
Hardware & Radio Specifications
| Feature | Specification Details |
| Product Type | High-density Ceiling-mount Access Point (AP) |
| Wi-Fi Standard | Wi-Fi 6 (IEEE 802.11ax) |
| Radio Design | Dual-radio, 8 spatial streams |
| Spatial Streams |
2.4 GHz: 4 x 4, MU-MIMO 5 GHz: 4 x 4, MU-MIMO |
| Max. Wireless Data Rate | Combined: 5950 Mbps |
| 5 GHz Wireless Speed | 4803 Mbps |
| 2.4 GHz Wireless Speed | 1147 Mbps |
| 6 GHz Support | No |
| Antennas | 8 x Built-in omnidirectional antennas (4 x 2.4 GHz, 4 x 5 GHz) |
Physical & Interface Port Specifications
| Feature | Specification Details |

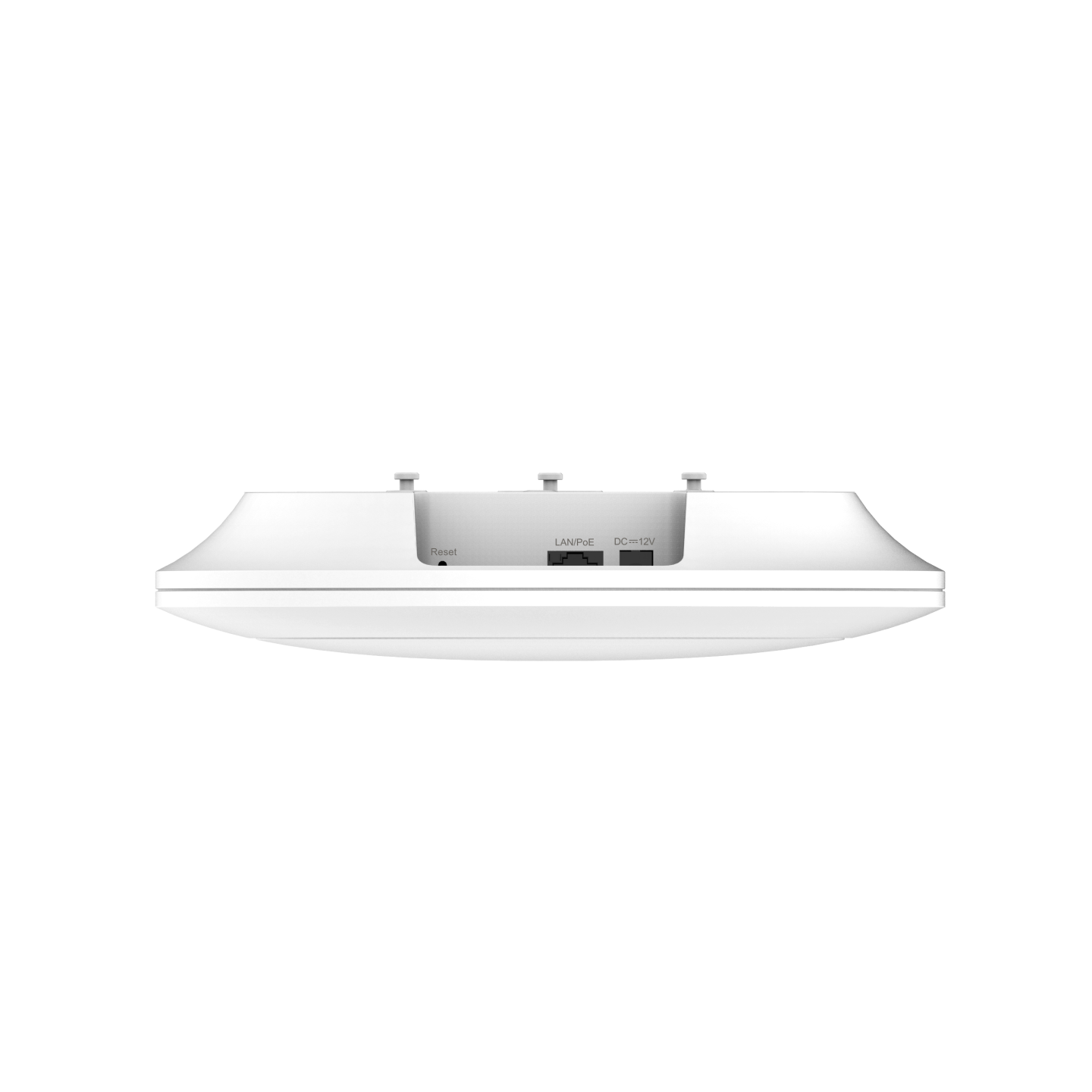

| Multi-G Ethernet Ports | 2 x 10/100/1000/2500BASE-T RJ45 Ports (Dual 2.5G WAN/LAN Uplinks) |
| Dimensions (WxDxH) | 230 mm x 230 mm x 49.5 mm (9.06 in. x 9.06 in. x 1.95 in.) (excludes mounting bracket) |
| Weight | $\le$ 1.36 kg (3.00 lbs) (without packaging) |
| Color | White |

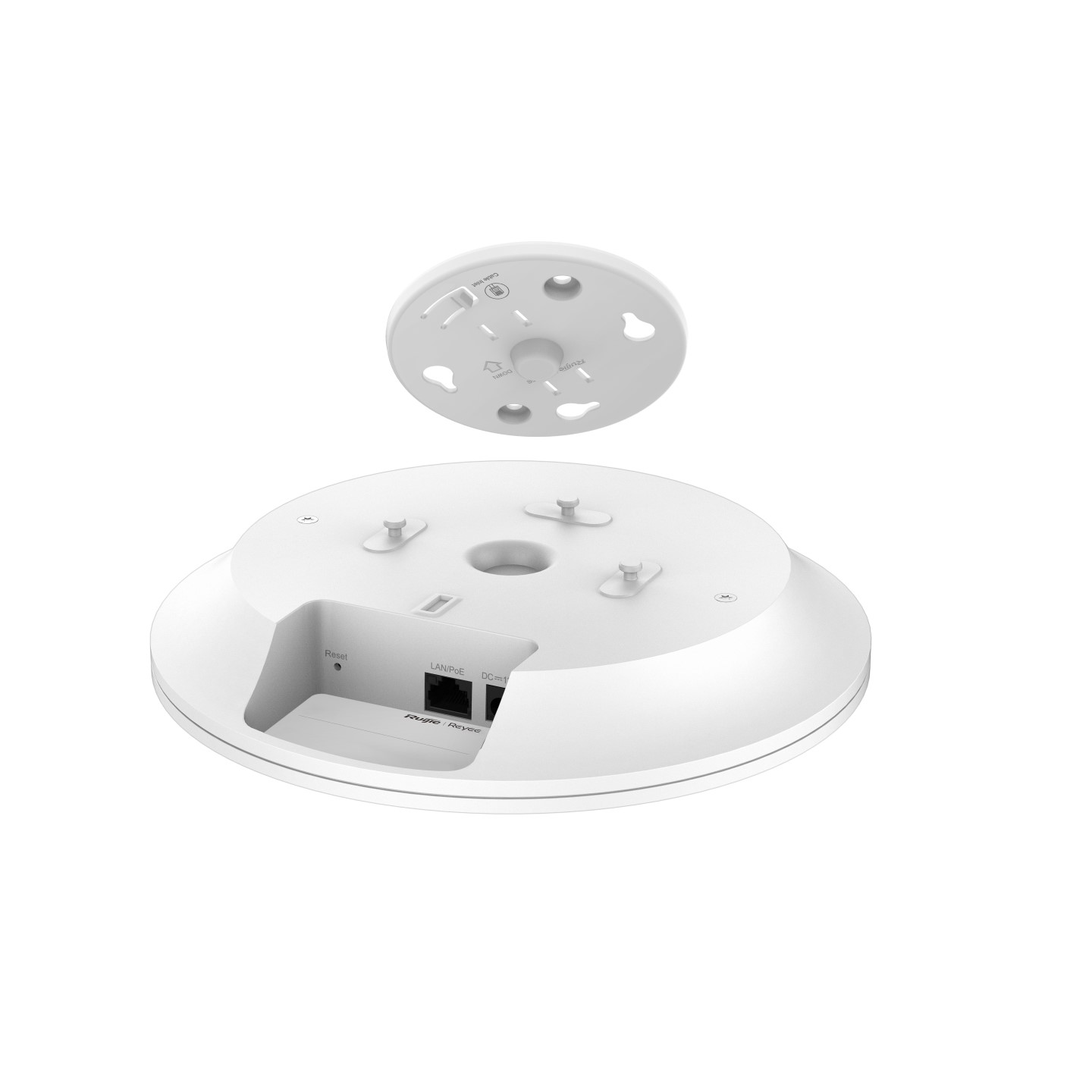

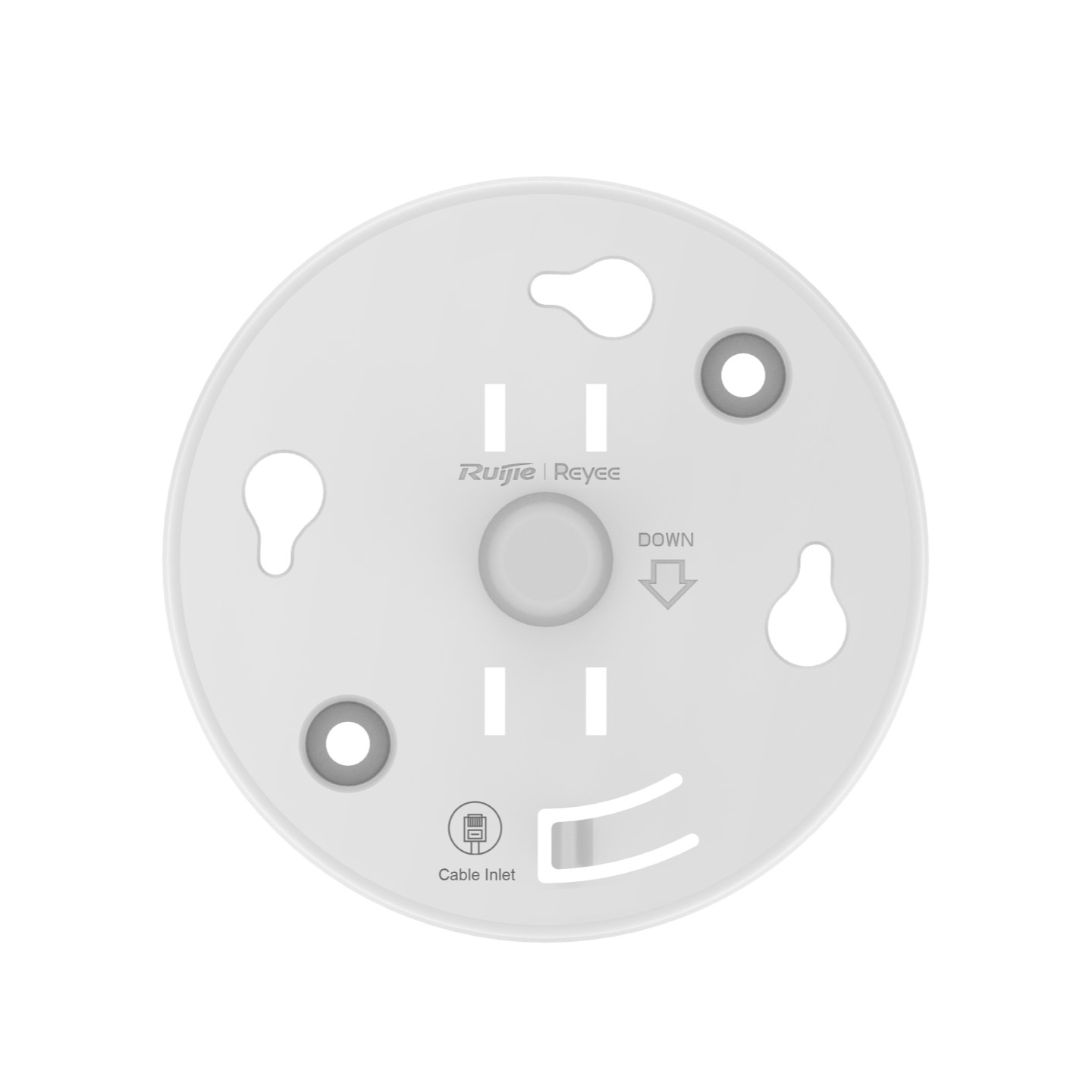

| Mounting Options | Ceiling-mount or Wall-mount |
Power, Environment & Reliability
| Feature | Specification Details |
| Power Supply Options |
Local DC power adapter or PoE+ / PoE++ (IEEE 802.3at/bt) (Note: If both DC and PoE are connected, DC power is preferred) |
| Local Power Rating | 48 V / 1 A |
| DC Connector Dimensions | Outer Diameter: 5.5 mm | Inner Diameter: 2.1 mm | Depth: 10 mm |
| PoE Passthrough (Budget) | No |
| Max. Power Consumption | 40 W |
| IP Rating | No |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Warranty | 1 Year |
Software Specifications
| Feature | Specification Details |
| Max. Associated Clients |
2.4 GHz: 64 clients 5 GHz: 512 clients Combined Band Limit: 512 clients |
| Max. Managed Devices | Up to 300 network devices |
| IPv6 Support | Yes |
| Network Features | Support for Ruijie Cloud remote monitoring, Reyee Mesh wireless expansion, custom captive portal authentication, and Self-Organizing Networks (SON) |
