RG-RAP2260(E) Reyee Wi-Fi 6 AX3200 Multi-G Ceiling Access Point
AX3200 Dual Band Ceiling Mount Wi-Fi6 Access Point, 2402Mbps at 5GHz + 800Mbps at 2.4GHz, 1* 2.5 Gigabit Ethernet port and 1* 1 Gigibit Ethernet port, Internal Omni directional Antennas，support 802.11a/b/g/n/ac Wave1/acWave2/ax, Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory)802.3at PoE (Warning：802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier)
$160.89
| Feature | Specification Details |
| Product Type | Ceiling-mount Access Point (AP) |
| Wi-Fi Standard | Wi-Fi 6 (IEEE 802.11ax) |
| Radio Design | Dual-radio, 8 spatial streams |
| Spatial Streams |
2.4 GHz: 4 x 4, MIMO 5 GHz: 4 x 4, MU-MIMO |
| Max. Wireless Data Rate | Combined: 3201 Mbps |
| 5 GHz Wireless Speed | 2401 Mbps |
| 2.4 GHz Wireless Speed | 800 Mbps |
| 6 GHz Support | No |
| Antennas | 8 x Built-in omnidirectional antennas (4 x 2.4 GHz, 4 x 5 GHz) |
Physical & Interface Port Specifications
| Feature | Specification Details |

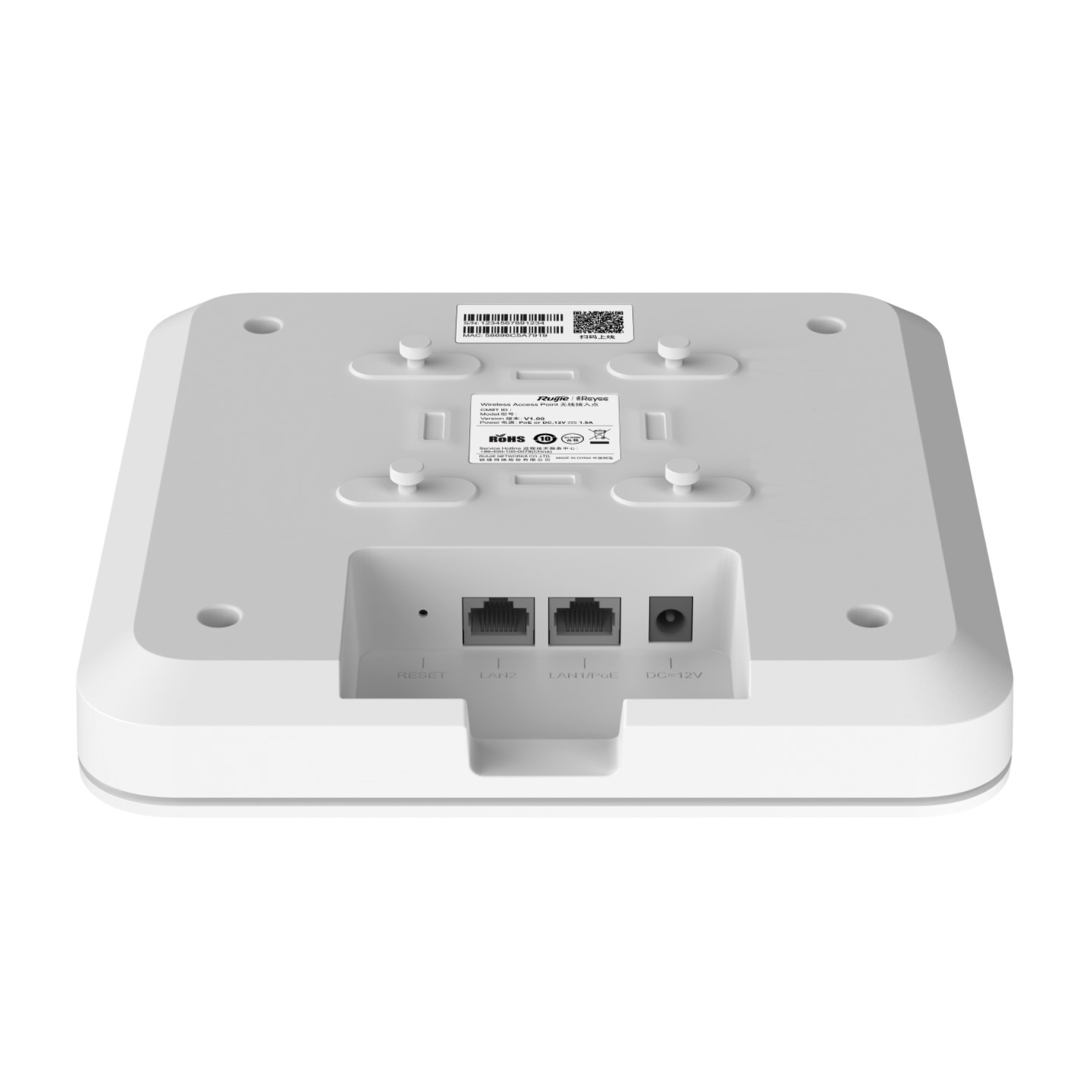

| Multi-G Ethernet Port | 1 x 10/100/1000/2500BASE-T RJ45 Port (2.5G WAN/LAN Uplink) |
| Gigabit Ethernet Port | 1 x 10/100/1000BASE-T RJ45 Port (1G LAN) |
| Dimensions (WxDxH) | 220 mm x 220 mm x 35 mm (8.66 in. x 8.66 in. x 1.38 in.) (excludes mounting bracket) |
| Weight | $\le$ 0.55 kg (1.21 lbs) (without packaging) |
| Color | White |

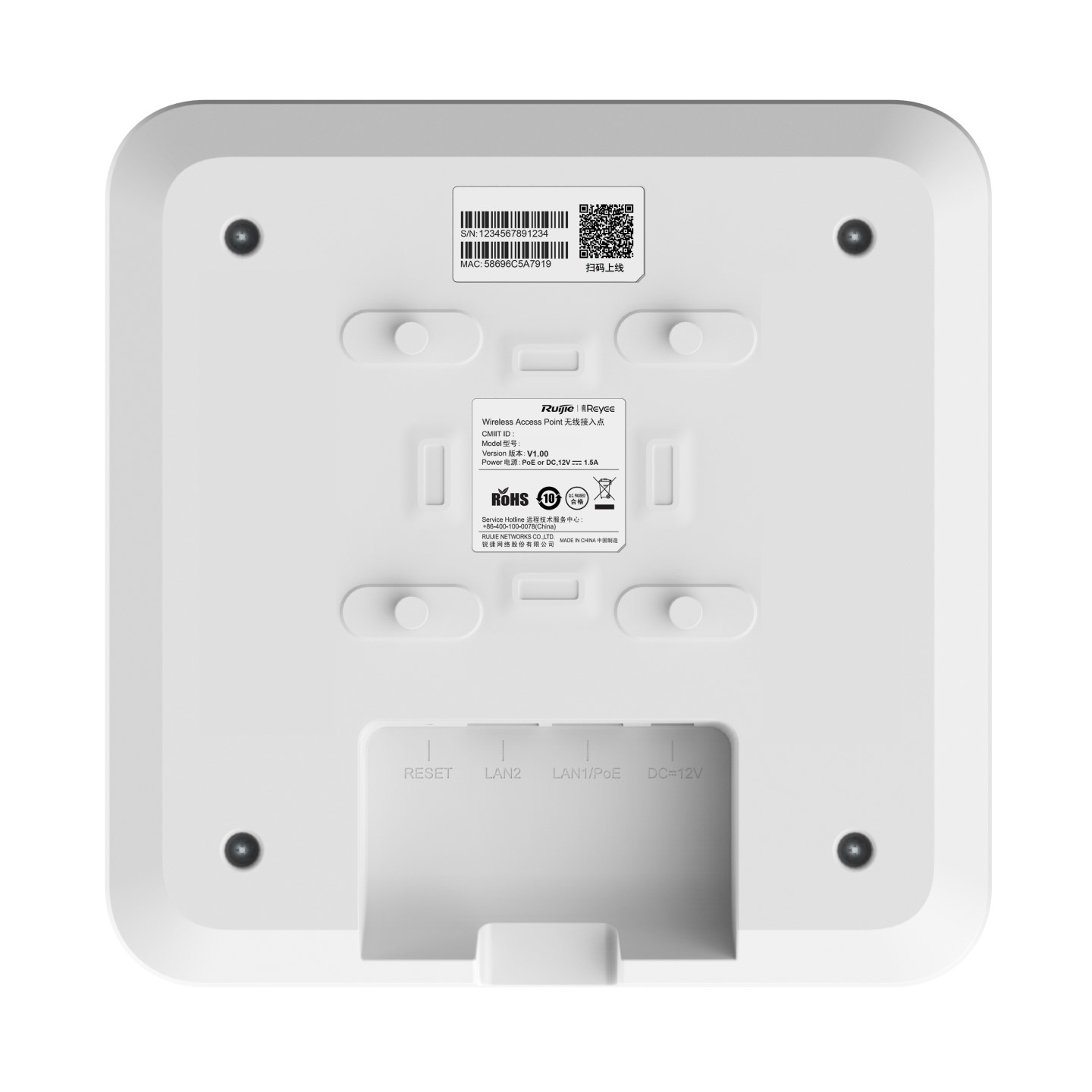

| Mounting Options | Ceiling-mount or Wall-mount |
Power, Environment & Reliability
| Feature | Specification Details |
| Power Supply Options |
local DC power adapter or PoE+ (IEEE 802.3at) (Note: If both DC and PoE are connected, DC power is preferred) |
| Local Power Rating | 12 V / 2.5 A |
| DC Connector Dimensions | Outer Diameter: 5.5 mm | Inner Diameter: 2.1 mm | Depth: 10 mm |
| PoE Passthrough (Budget) | No |
| Max. Power Consumption | 25.4 W |
| IP Rating | IP41 (dust-resistant and drip-proof) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Warranty | 1 Year |
Software Specifications
| Feature | Specification Details |
| Max. Associated Clients |
2.4 GHz: 64 clients 5 GHz: 256 clients Combined Band Limit: 256 clients |
| Max. Managed Devices | Up to 300 network devices |
| IPv6 Support | Yes |
| Network Features | Support for Ruijie Cloud remote management, Reyee Mesh technology, custom portal authentication, and Self-Organizing Networks (SON) |
