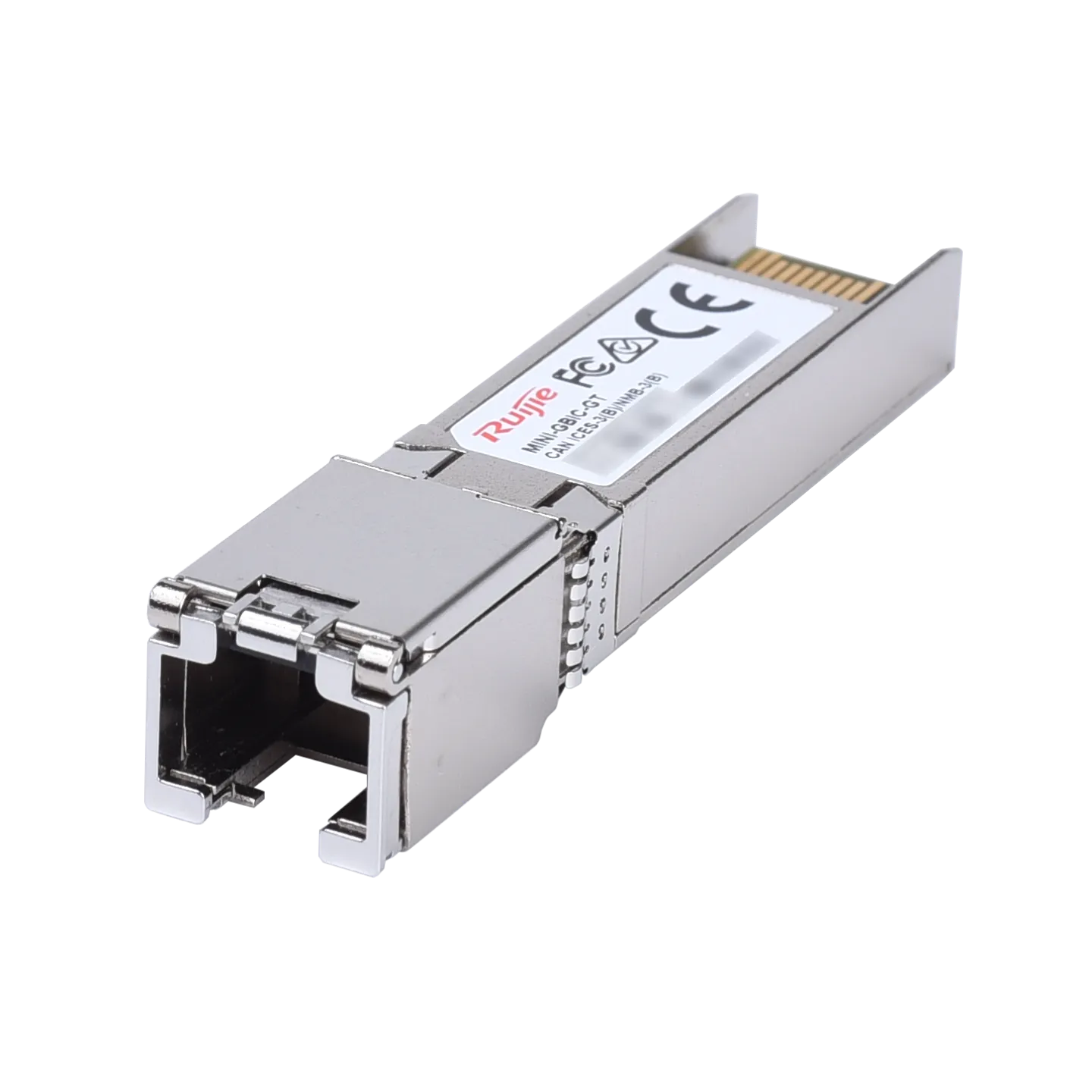

Mini-GBIC-GT 1000BASE-T SFP Copper RJ45 100-m Transceiver Module

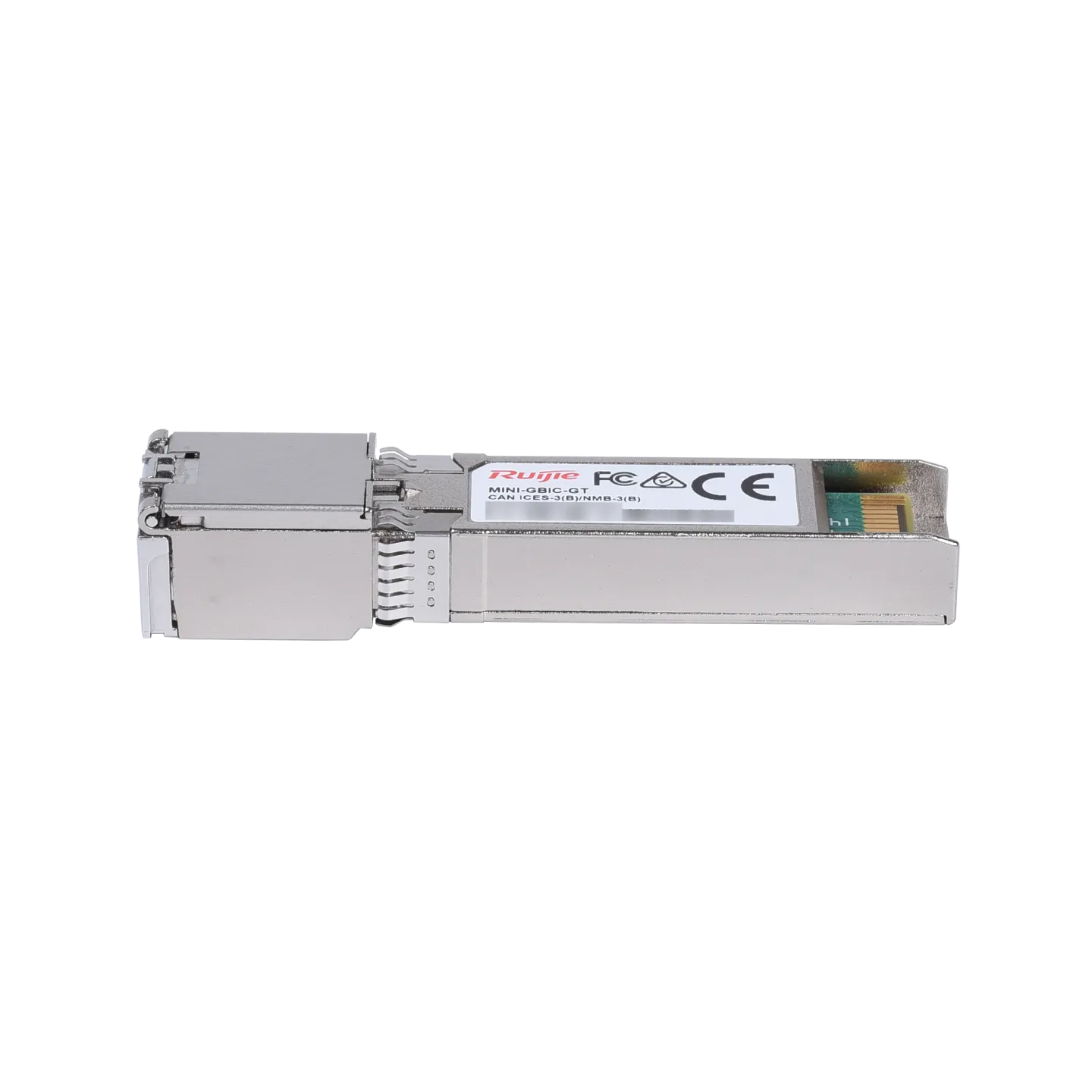

Mini-GBIC-GT 1000BASE-T SFP Copper RJ45 100-m Transceiver Module - Image 2

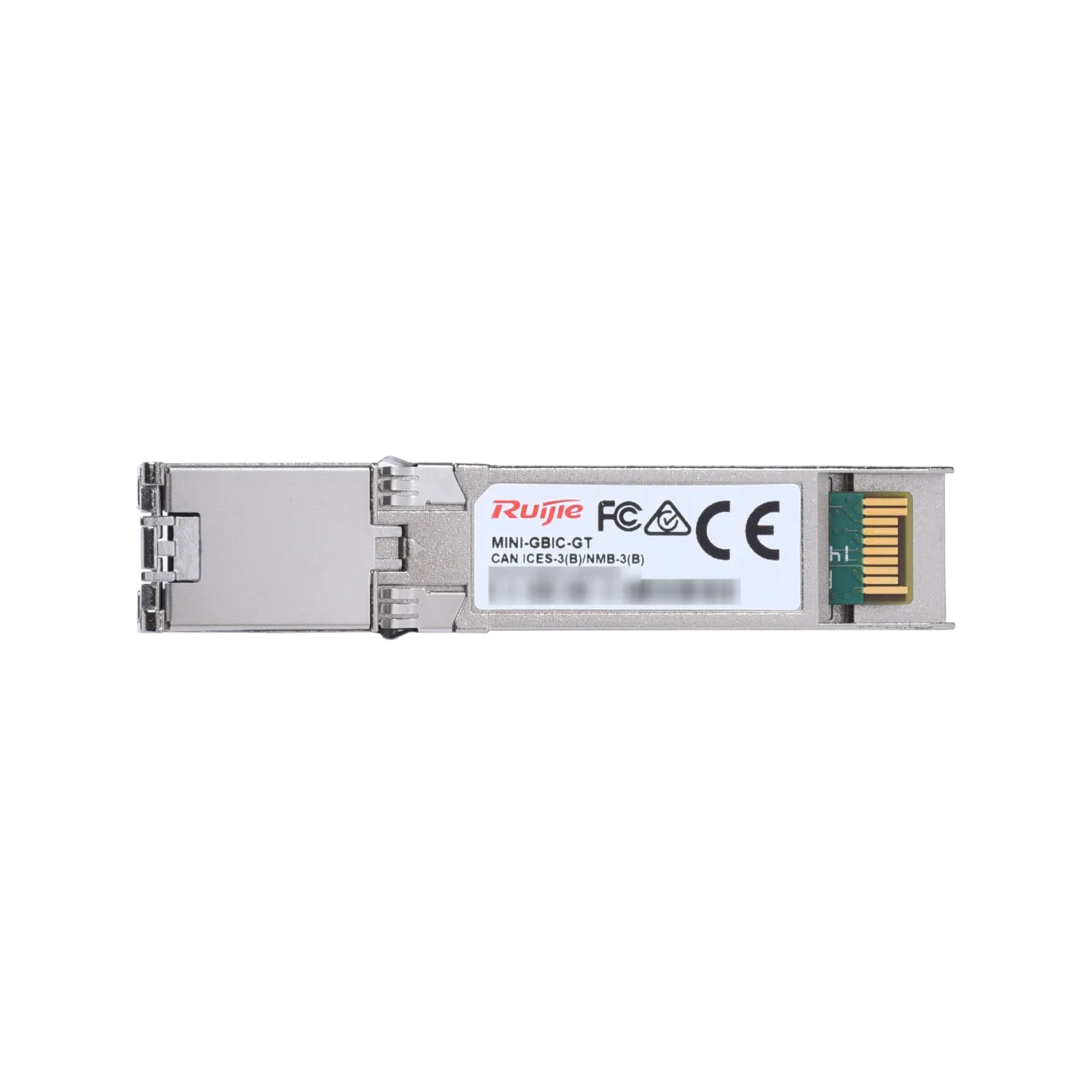

Mini-GBIC-GT 1000BASE-T SFP Copper RJ45 100-m Transceiver Module - Image 3

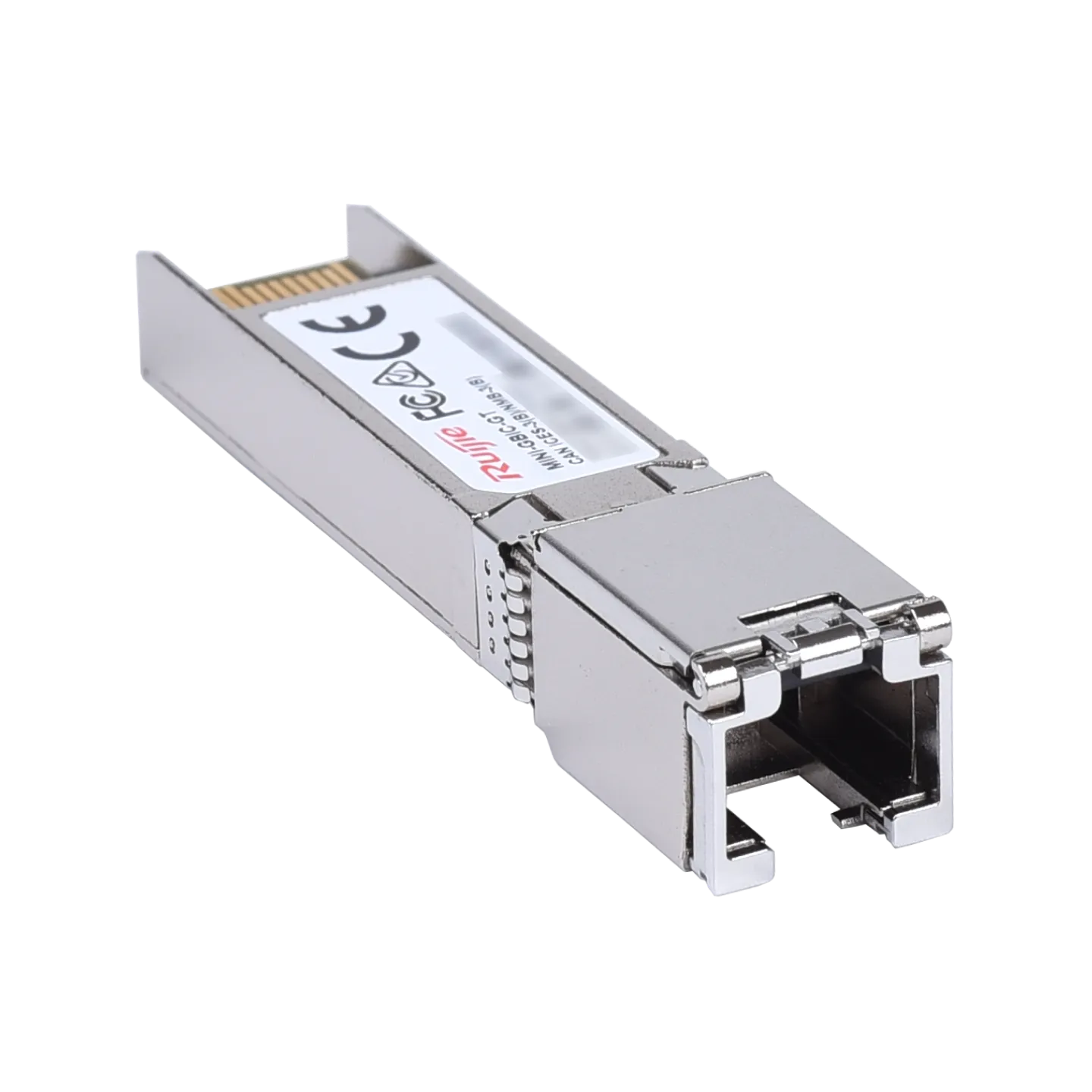

Mini-GBIC-GT 1000BASE-T SFP Copper RJ45 100-m Transceiver Module - Image 4
, ,

Mini-GBIC-GT 1000BASE-T SFP Copper RJ45 100-m Transceiver Module

Compare

1000BASE-TX, SFP Transceiver (100m)

$77.00

Specification MINI-GBIC-SX-MM850 MINI-GBIC-LX-SM1310 MINI-GBIC-LH40-SM1310 MINI-GBIC-ZX80-SM1550 MINI-GBIC-GT
Data Rate 1.25 Gbps 1.25 Gbps 1.25 Gbps 1.25 Gbps 1000base-X to 1000base-T
Form Factor SFP SFP SFP SFP SFP
Connector Type Duplex LC Duplex LC Duplex LC Duplex LC RJ45
Cable Type MMF SMF SMF SMF Cat 5e / 6 / 6a
Fiber End Face UPC UPC UPC UPC N/A
Transmitter Type VCSEL DFB DFB DFB N/A
Receiver Type PIN PIN PIN PIN N/A
Reach 550 m (1,804.46 ft) 10 km (32,808.40 ft) 40 km (131,233.60 ft) 80 km (262,467.19 ft) 100 m (328.08 ft)
BER $1.00 \times 10^{-12}$ $1.00 \times 10^{-12}$ $1.00 \times 10^{-12}$ $1.00 \times 10^{-12}$ N/A
DDM / DOM Yes Yes Yes Yes No
Power Consumption $\le$ 1.5 W $\le$ 1.5 W $\le$ 1.5 W $\le$ 1.5 W $\le$ 1.5 W
Wavelength 850 nm 1310 nm 1310 nm 1550 nm N/A
Max TX Power 0 dBm -3 dBm 0 dBm 5 dBm N/A
Min TX Power -9.5 dBm -11 dBm -5 dBm 0 dBm N/A
Min Extinction Ratio $\ge$ 9 dB $\ge$ 9 dB $\ge$ 9 dB $\ge$ 9 dB N/A
RX Sensitivity < -17 dBm < -19 dBm < -23 dBm < -27 dBm N/A
RX Overload Power 0 dBm -3 dBm -3 dBm -3 dBm N/A
Operating Temp 0°C to 70°C 0°C to 70°C 0°C to 70°C 0°C to 70°C 0°C to 70°C
Operating Humidity 10% to 90% RH 10% to 90% RH 10% to 90% RH 10% to 90% RH 10% to 90% RH
Dimensions (WxDxH) 56.5 x 13.5 x 8.5 mm 56.5 x 13.5 x 8.5 mm 56.5 x 13.5 x 8.5 mm 56.5 x 13.5 x 8.5 mm 68 x 14 x 8.5 mm
Weight 35 g (0.08 lbs) 35 g (0.08 lbs) 35 g (0.08 lbs) 35 g (0.08 lbs) 35 g (0.08 lbs)
Warranty 1 Year 1 Year 1 Year 1 Year 1 Year

Single-Fiber SFP (BIDI) Specifications

Bidirectional (BIDI) modules transmit and receive on different wavelengths over a single strand of fiber, operating in matched pairs (e.g., LH40-SM1310 paired with LH40-SM1550).

Specification GE-SFP-LH40-SM1310-BIDI GE-SFP-LH40-SM1550-BIDI GE-SFP-LX20-SM1310-BIDI GE-SFP-LX20-SM1550-BIDI GE-SFP-LX03-SM1310-BIDI-I GE-SFP-LX03-SM1550-BIDI-I
Data Rate 1.25 Gbps 1.25 Gbps 1.25 Gbps 1.25 Gbps 1.25 Gbps 1.25 Gbps
Form Factor SFP SFP SFP SFP SFP SFP
Connector Type BIDI LC BIDI LC BIDI LC BIDI LC BIDI LC BIDI LC
Cable Type SMF SMF SMF SMF SMF SMF
Fiber End Face UPC UPC UPC UPC UPC UPC
Transmitter Type DFB DFB FP DFB FP DFB
Receiver Type PIN PIN PIN PIN PIN PIN
Reach 40 km (131,233.6 ft) 40 km (131,233.6 ft) 20 km (65,616.8 ft) 20 km (65,616.8 ft) 3 km (9,842.5 ft) 3 km (9,842.5 ft)
BER $1.00 \times 10^{-12}$ $1.00 \times 10^{-12}$ $1.00 \times 10^{-12}$ $1.00 \times 10^{-12}$ $1.00 \times 10^{-12}$ $1.00 \times 10^{-12}$
DDM / DOM Yes Yes Yes Yes Yes Yes
Power Consumption $\le$ 1.5 W $\le$ 1.5 W $\le$ 1.5 W $\le$ 1.5 W $\le$ 1.5 W $\le$ 1.5 W
Wavelength

TX: 1310 nm


RX: 1550 nm

TX: 1550 nm


RX: 1310 nm

TX: 1310 nm


RX: 1550 nm

TX: 1550 nm


RX: 1310 nm

TX: 1310 nm


RX: 1550 nm

TX: 1550 nm


RX: 1310 nm
Max TX Power 0 dBm 0 dBm -3 dBm -3 dBm -3 dBm -3 dBm
Min TX Power -5 dBm -5 dBm -9 dBm -9 dBm -9 dBm -9 dBm
Min Extinction Ratio $\ge$ 9 dB $\ge$ 9 dB $\ge$ 9 dB $\ge$ 9 dB $\ge$ 9 dB $\ge$ 9 dB
RX Sensitivity < -23 dBm < -23 dBm < -20 dBm < -20 dBm < -22 dBm < -22 dBm
RX Overload Power -3 dBm -3 dBm -3 dBm -3 dBm -3 dBm -3 dBm
Operating Temp 0°C to 70°C 0°C to 70°C 0°C to 70°C 0°C to 70°C 0°C to 70°C 0°C to 70°C
Operating Humidity 5% to 95% RH 5% to 95% RH 5% to 95% RH 5% to 95% RH 5% to 95% RH 5% to 95% RH
Dimensions (WxDxH) 56.5 x 13.5 x 8.5 mm 56.5 x 13.5 x 8.5 mm 56.5 x 13.5 x 8.5 mm 56.5 x 13.5 x 8.5 mm 56.5 x 13.5 x 8.5 mm 56.5 x 13.5 x 8.5 mm
Weight 35 g (0.08 lbs) 35 g (0.08 lbs) 35 g (0.08 lbs) 35 g (0.08 lbs) 35 g (0.08 lbs) 35 g (0.08 lbs)
Warranty 1 Year 1 Year 1 Year 1 Year 1 Year 1 Year
SKU: Mini-GBIC-GT Categories: , ,
