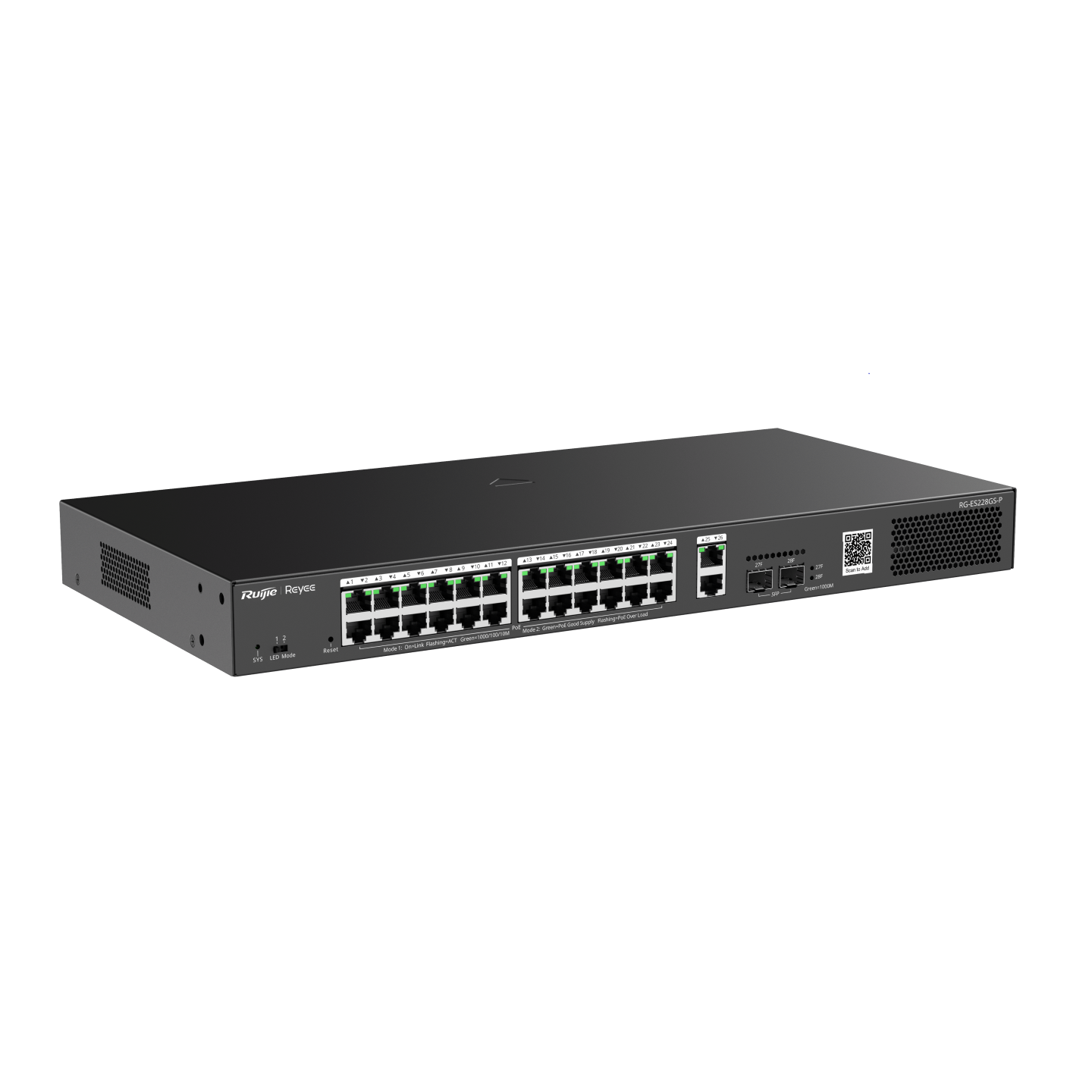

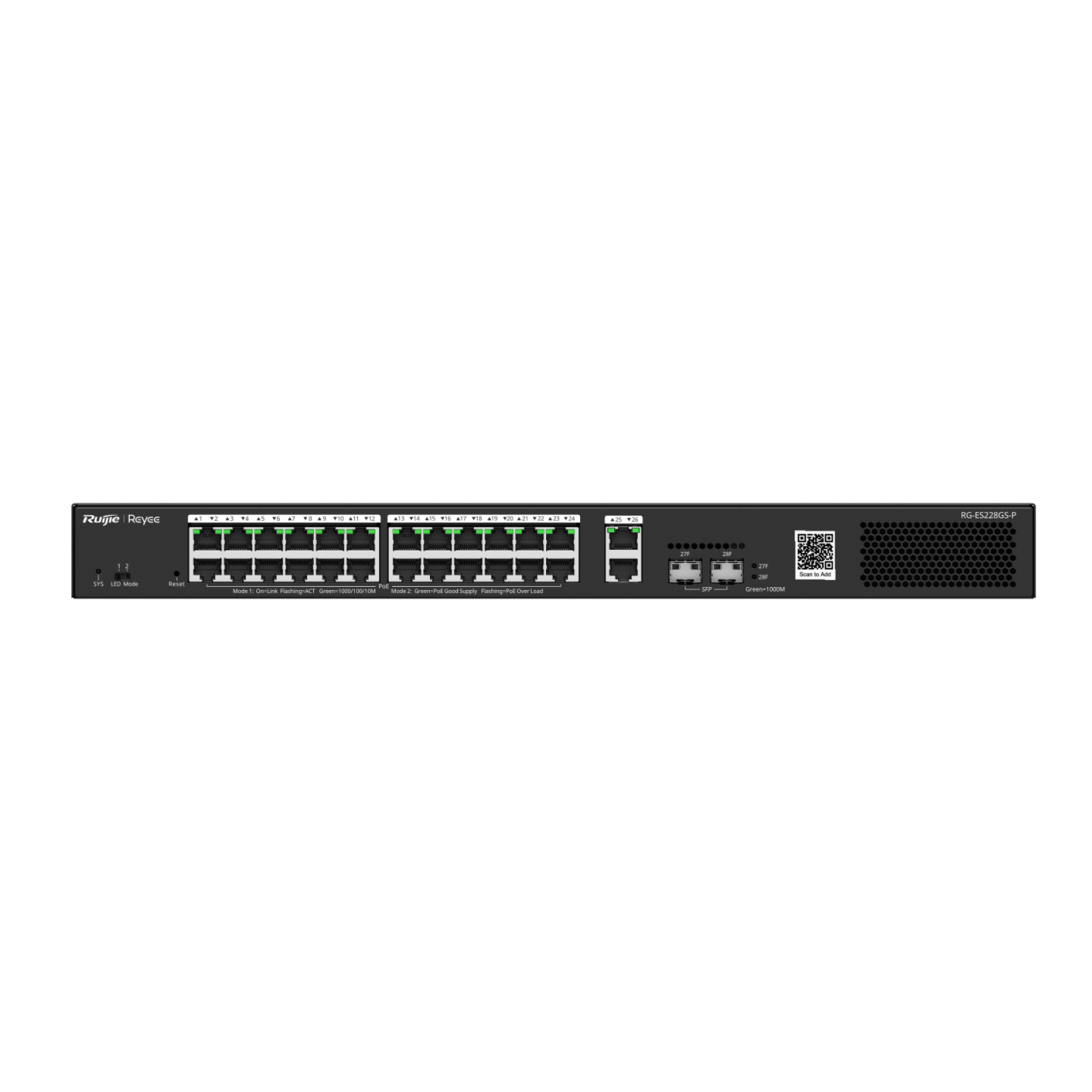

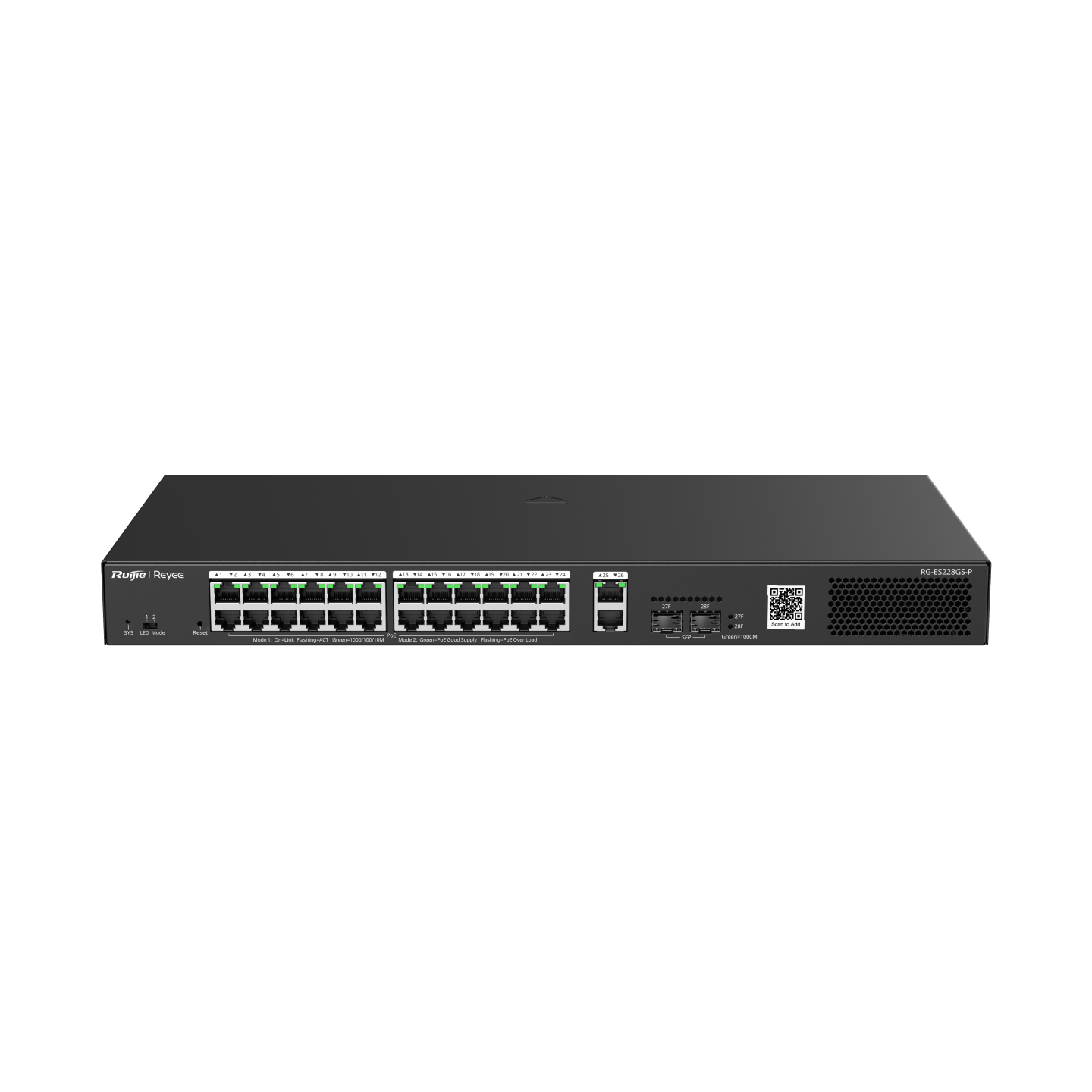

Ruijie Reyee RG-ES228GS-P 28-Port Gigabit Smart Cloud Managed PoE Switch

Name: Ruijie Reyee RG-ES228GS-P 28-Port Gigabit Smart Cloud Managed PoE Switch
SKU: RG-ES228GS-P
Price: 272.00 USD
Availability: InStock

Compare

28-Port Gigabit Smart POE Switch, 24 PoE/POE+ Gigabit RJ45 Ports with 2 Gigabit RJ45/2 SFP uplink ports,370W PoE power budget, Desktop Steel Case

$272.00

Description

Specification	Details
Model	RG-ES228GS-P
Product Category	Layer 2 Smart Cloud-Managed Switch
Warranty	1 year
Total Physical Ports	28 Ports (26 x RJ45 + 2 x Optical SFP)
Network Interfaces	24 x 10/100/1000BASE-T PoE+ RJ45 ports 2 x 10/100/1000BASE-T Non-PoE RJ45 uplink ports 2 x 1GE SFP optical uplink ports
PoE Capability	Total 24 x PoE Out ports (IEEE 802.3af/at PoE/PoE+ compliant)
PoE Power Budget	370 W
PoE Power Pin Allocation	1–2 (+), 3–6 (-)
Switching Capacity	56 Gbps
Forwarding Rate	41.6 Mpps
Operating Temperature	0°C to 40°C (32°F to 104°F)
Intelligent Maintenance	Built-in PoE Watchdog / Perpetual PoE (Automatically power-cycles frozen endpoint IP devices and provides uninterrupted power delivery to cameras during switch restarts)
Network Security	Hardware Port Isolation support

SKU: RG-ES228GS-P Categories: ES2 Switch, Ruijie Reyees Products, SMB

Barcode:
