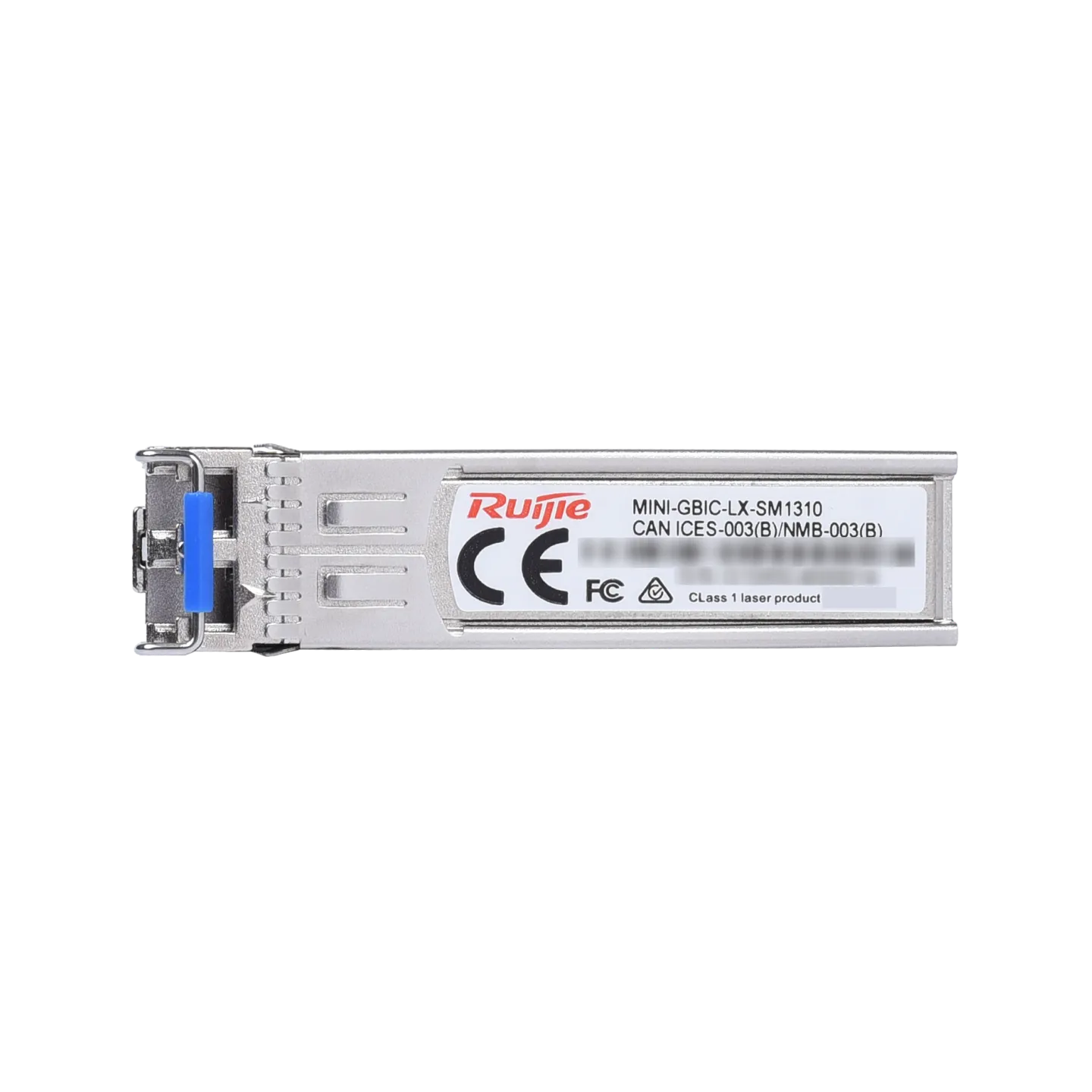

MINI-GBIC-LX-SM1310 1000BASE-SX SFP 1310-nm 10-km DDM Duplex LC SMF Optical Transceiver Module

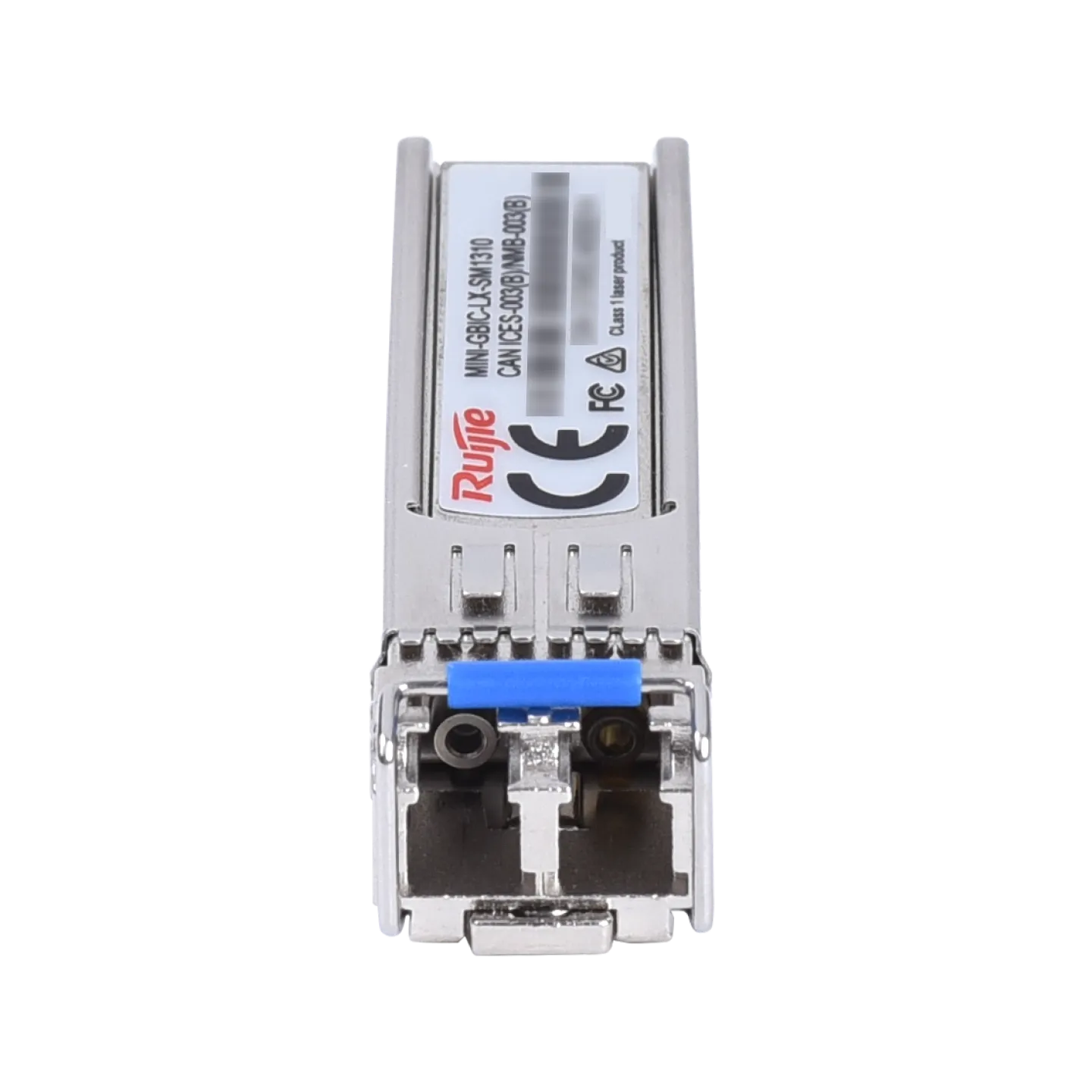

MINI-GBIC-LX-SM1310 1000BASE-SX SFP 1310-nm 10-km DDM Duplex LC SMF Optical Transceiver Module - Image 2
MINI-GBIC-LX-SM1310 1000BASE-SX SFP 1310-nm 10-km DDM Duplex LC SMF Optical Transceiver Module - Image 3
MINI-GBIC-LX-SM1310 1000BASE-SX SFP 1310-nm 10-km DDM Duplex LC SMF Optical Transceiver Module - Image 4
MINI-GBIC-LX-SM1310 1000BASE-SX SFP 1310-nm 10-km DDM Duplex LC SMF Optical Transceiver Module - Image 5
, ,

MINI-GBIC-LX-SM1310 1000BASE-SX SFP 1310-nm 10-km DDM Duplex LC SMF Optical Transceiver Module

Compare

1000BASE-LX, SFP Transceiver, SM (1310nm, 10km, LC)

$34.65

Standard MINI-GBIC SFP Series Specifications

Parameter MINI-GBIC-SX-MM850 MINI-GBIC-LX-SM1310 MINI-GBIC-LH40-SM1310 MINI-GBIC-ZX80-SM1550 MINI-GBIC-GT
Data Rate 1.25 Gbps 1.25 Gbps 1.25 Gbps 1.25 Gbps 1000base-X to 1000base-T
Form Factor SFP SFP SFP SFP SFP
Connector Type Duplex LC Duplex LC Duplex LC Duplex LC RJ45
Cable Type MMF (Multi-Mode) SMF (Single-Mode) SMF (Single-Mode) SMF (Single-Mode) Cat 5e/6/6a
Fiber End Face UPC UPC UPC UPC N/A
Transmitter Type VCSEL DFB DFB DFB N/A
Receiver Type PIN PIN PIN PIN N/A
Max Reach 550 m (1,804 ft) 10 km (32,808 ft) 40 km (131,233 ft) 80 km (262,467 ft) 100 m (328 ft)
BER $1.00 \times 10^{-12}$ $1.00 \times 10^{-12}$ $1.00 \times 10^{-12}$ $1.00 \times 10^{-12}$ N/A
DDM/DOM Support Yes Yes Yes Yes No
Power Consumption $\le 1.5\text{ W}$ $\le 1.5\text{ W}$ $\le 1.5\text{ W}$ $\le 1.5\text{ W}$ $\le 1.5\text{ W}$
TX Wavelength 850 nm 1310 nm 1310 nm 1550 nm N/A
Max TX Power (AVG) 0 dBm –3 dBm 0 dBm 5 dBm N/A
Min TX Power (AVG) –9.5 dBm –11 dBm –5 dBm 0 dBm N/A
Min Extinction Ratio $\ge 9\text{ dB}$ $\ge 9\text{ dB}$ $\ge 9\text{ dB}$ $\ge 9\text{ dB}$ N/A
RX Sensitivity (OMA) < –17 dBm < –19 dBm < –23 dBm < –27 dBm N/A
RX Overload (AVG) 0 dBm –3 dBm –3 dBm –3 dBm N/A
Operating Temp 0°C to 70°C 0°C to 70°C 0°C to 70°C 0°C to 70°C 0°C to 70°C
Operating Humidity 10% to 90% RH 10% to 90% RH 10% to 90% RH 10% to 90% RH 10% to 90% RH
Dimensions (WxDxH) 56.5 x 13.5 x 8.5 mm 56.5 x 13.5 x 8.5 mm 56.5 x 13.5 x 8.5 mm 56.5 x 13.5 x 8.5 mm 68 x 14 x 8.5 mm
Weight 35 g 35 g 35 g

Single-Fiber SFP Series (BIDI) Specifications

Parameter GE-SFP-LH40-SM1310-BIDI GE-SFP-LH40-SM1550-BIDI GE-SFP-LX20-SM1310-BIDI GE-SFP-LX20-SM1550-BIDI GE-SFP-LX03-SM1310-BIDI-I GE-SFP-LX03-SM1550-BIDI-I
Data Rate 1.25 Gbps 1.25 Gbps 1.25 Gbps 1.25 Gbps 1.25 Gbps 1.25 Gbps
Form Factor SFP SFP SFP SFP SFP SFP
Connector Type BIDI LC BIDI LC BIDI LC BIDI LC BIDI LC BIDI LC
Cable Type SMF SMF SMF SMF SMF SMF
Fiber End Face UPC UPC UPC UPC UPC UPC
Transmitter Type DFB DFB FP DFB FP DFB
Receiver Type PIN PIN PIN PIN PIN PIN
Max Reach 40 km (131,233 ft) 40 km (131,233 ft) 20 km (65,616 ft) 20 km (65,616 ft) 3 km (9,842 ft) 3 km (9,842 ft)
BER $1.00 \times 10^{-12}$ $1.00 \times 10^{-12}$ $1.00 \times 10^{-12}$ $1.00 \times 10^{-12}$ $1.00 \times 10^{-12}$ $1.00 \times 10^{-12}$
DDM/DOM Support Yes Yes Yes Yes Yes Yes
Power Consumption $\le 1.5\text{ W}$ $\le 1.5\text{ W}$ $\le 1.5\text{ W}$ $\le 1.5\text{ W}$ $\le 1.5\text{ W}$ $\le 1.5\text{ W}$
TX / RX Wavelength

TX: 1310 nm



RX: 1550 nm

TX: 1550 nm



RX: 1310 nm

TX: 1310 nm



RX: 1550 nm

TX: 1550 nm



RX: 1310 nm

TX: 1310 nm



RX: 1550 nm

TX: 1550 nm



RX: 1310 nm
Max TX Power (AVG) 0 dBm 0 dBm –3 dBm –3 dBm –3 dBm –3 dBm
Min TX Power (AVG) –5 dBm –5 dBm –9 dBm –9 dBm –9 dBm –9 dBm
Min Extinction Ratio $\ge 9\text{ dB}$ $\ge 9\text{ dB}$ $\ge 9\text{ dB}$ $\ge 9\text{ dB}$ $\ge 9\text{ dB}$ $\ge 9\text{ dB}$
RX Sensitivity (OMA) < –23 dBm < –23 dBm < –20 dBm < –20 dBm < –22 dBm < –22 dBm
RX Overload (AVG) –3 dBm –3 dBm –3 dBm –3 dBm –3 dBm –3 dBm
Operating Temp 0°C to 70°C 0°C to 70°C 0°C to 70°C 0°C to 70°C 0°C to 70°C 0°C to 70°C
Operating Humidity 5% to 95% RH 5% to 95% RH 5% to 95% RH 5% to 95% RH 5% to 95% RH 5% to 95% RH
Dimensions (WxDxH) 56.5 x 13.5 x 8.5 mm 56.5 x 13.5 x 8.5 mm 56.5 x 13.5 x 8.5 mm 56.5 x 13.5 x 8.5 mm 56.5 x 13.5 x 8.5 mm 56.5 x 13.5 x 8.5 mm
Weight 35 g 35 g 35 g
SKU: MINI-GBIC-LX-SM1310 Categories: , ,
