ES0/1 Switch, Ruijie Reyees Products, SMB

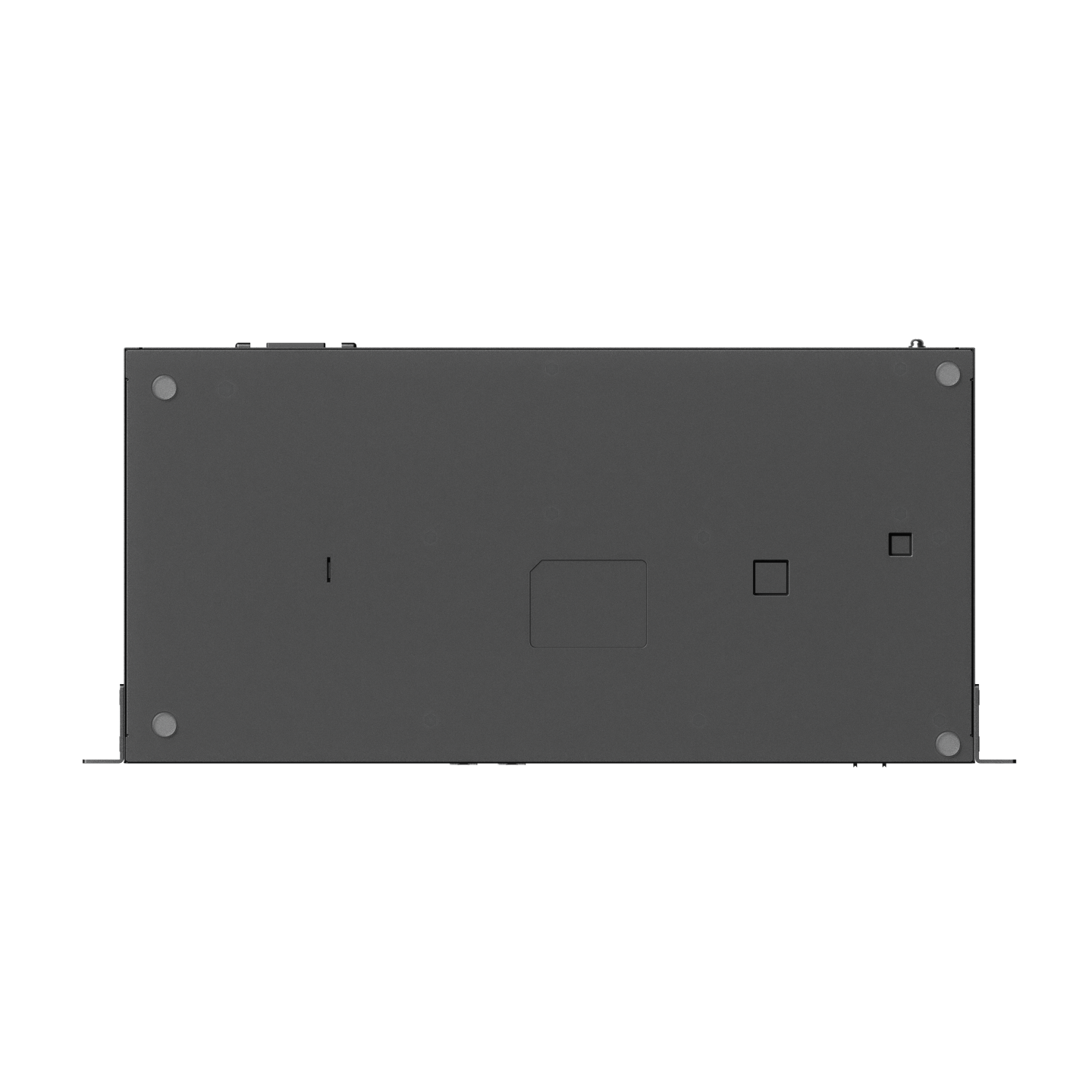

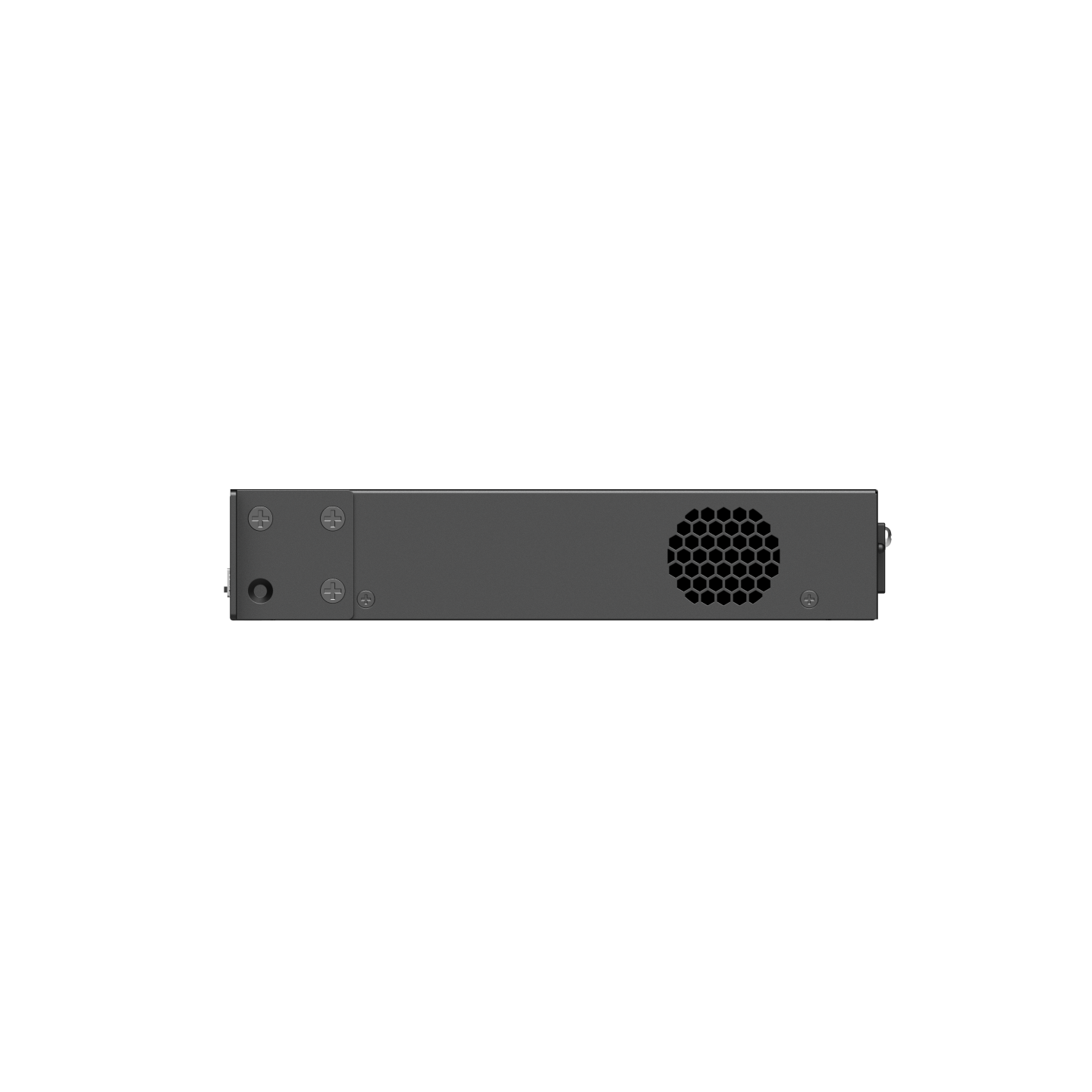

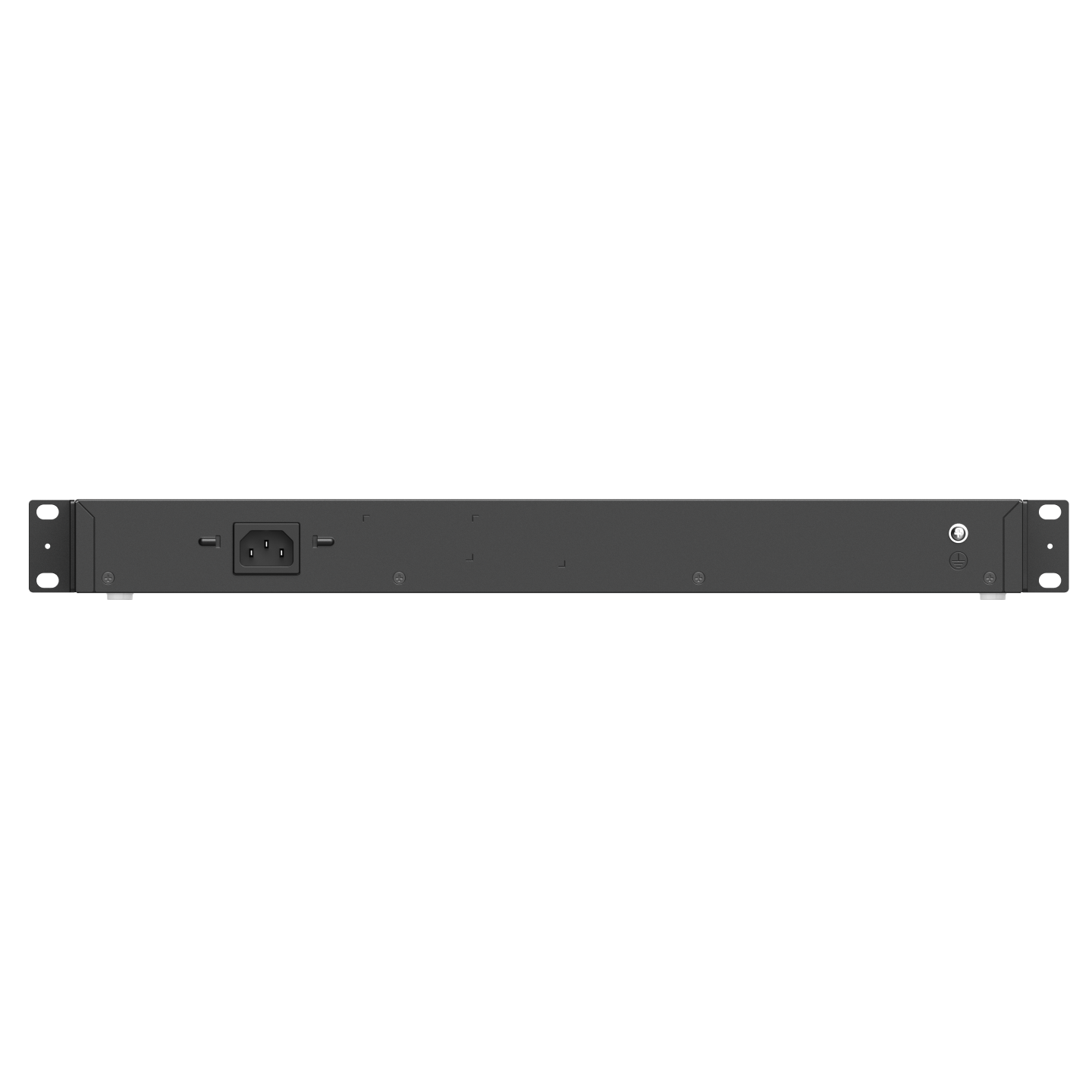

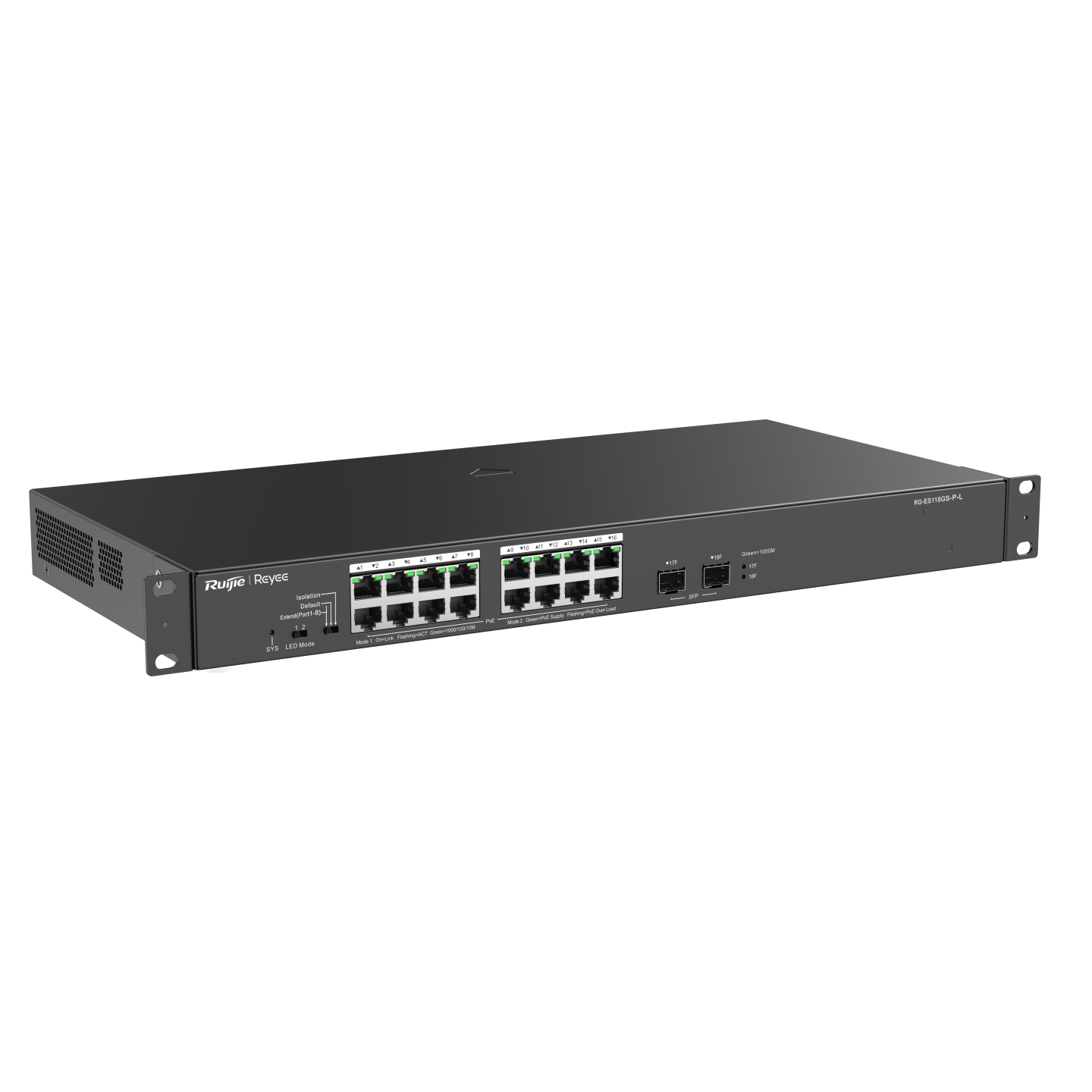

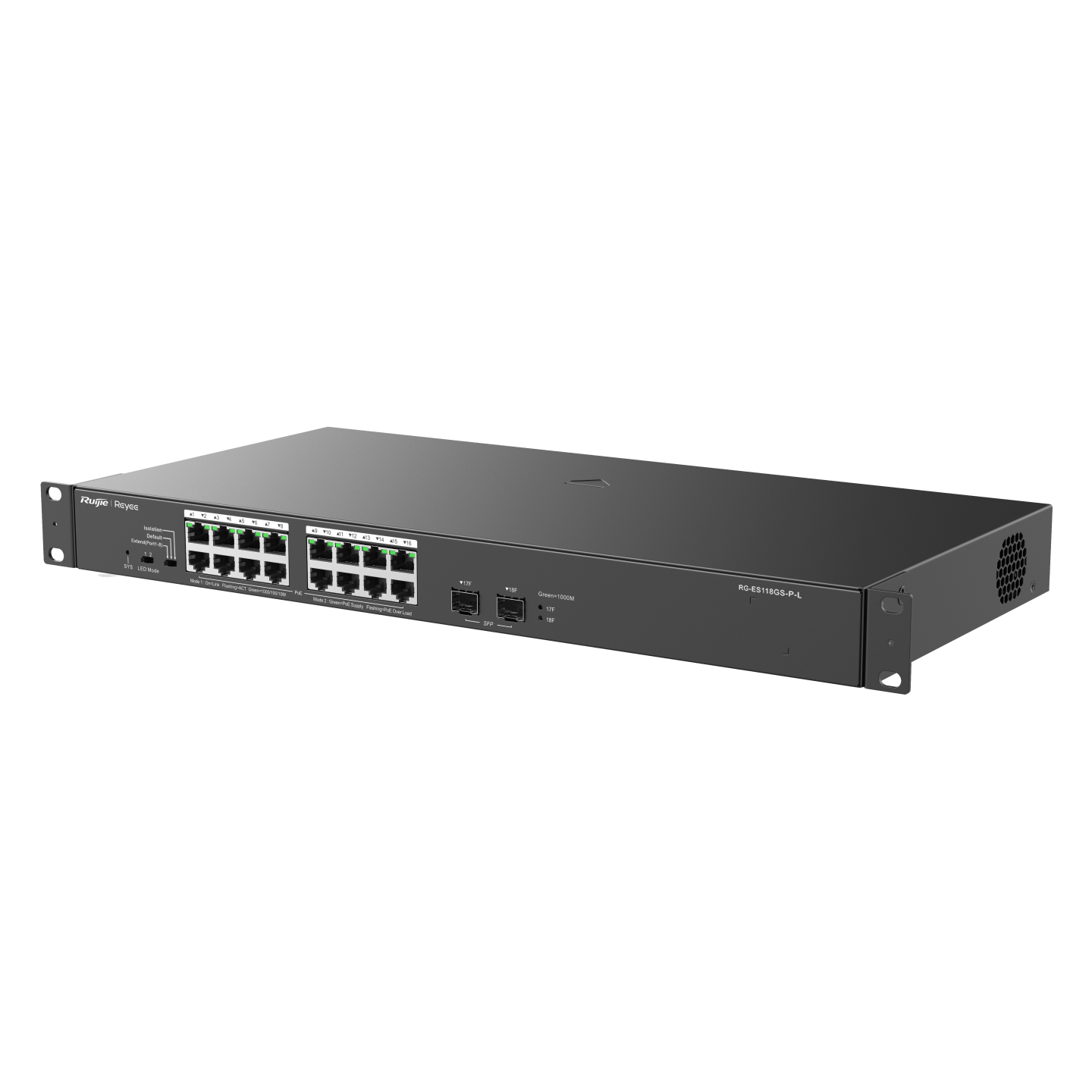

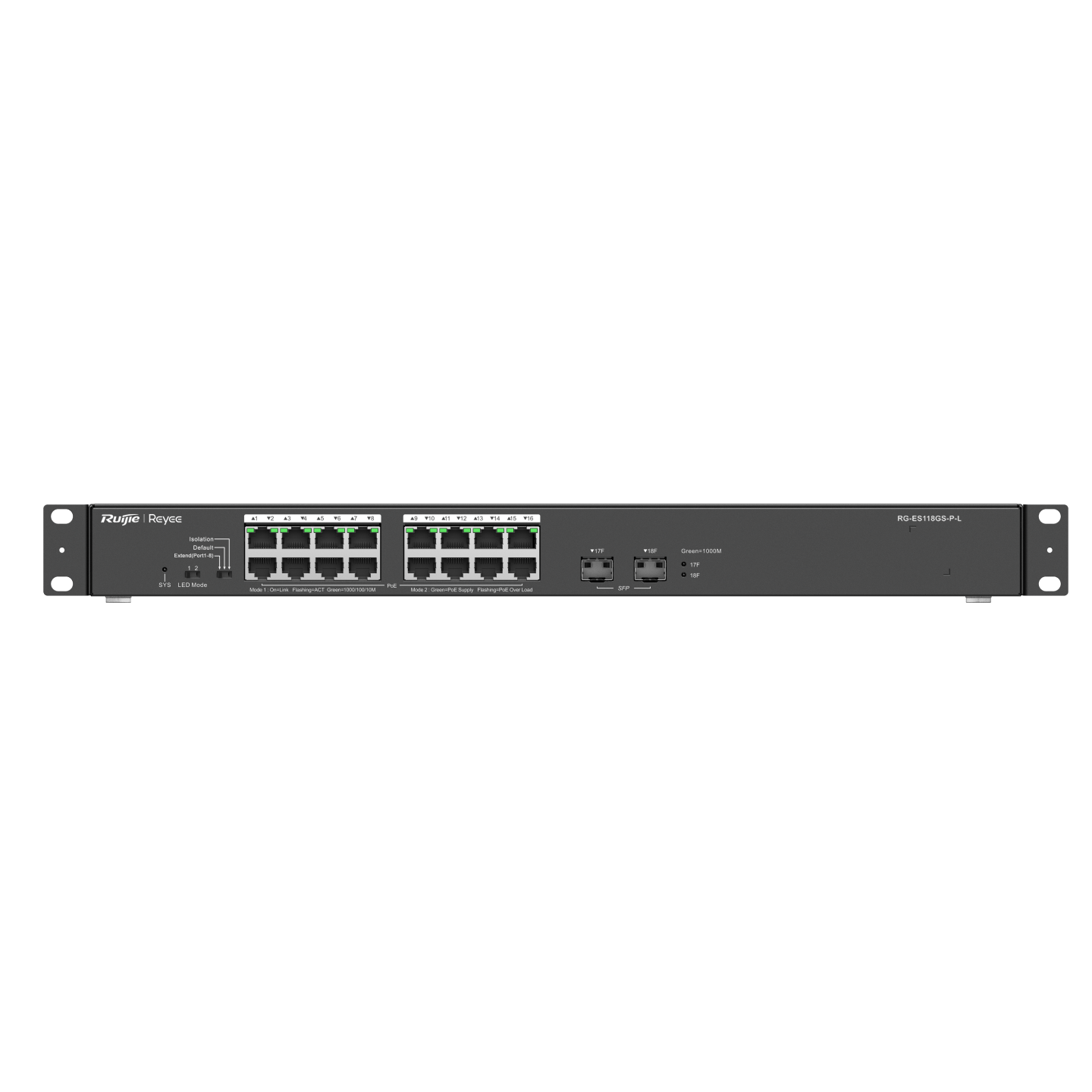

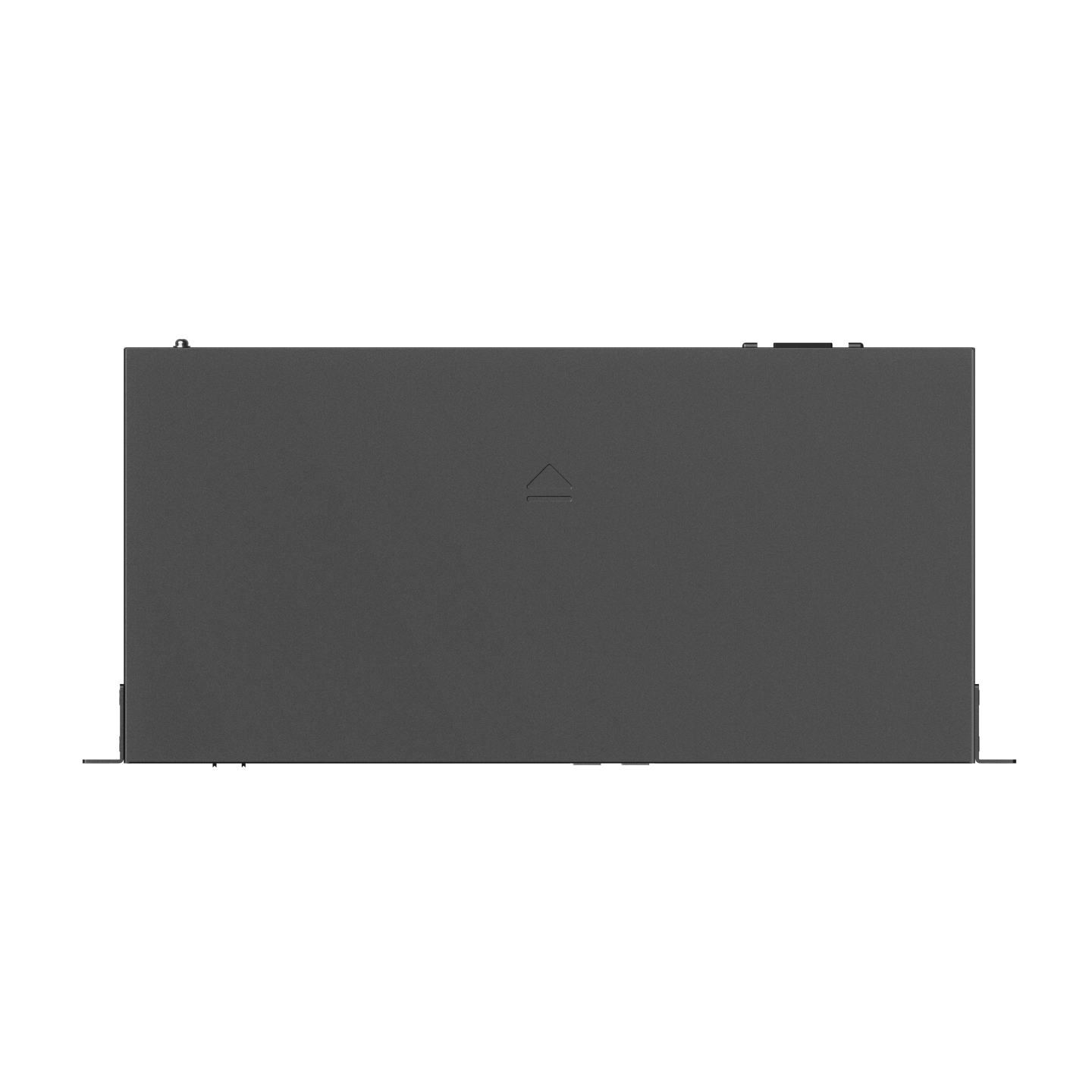

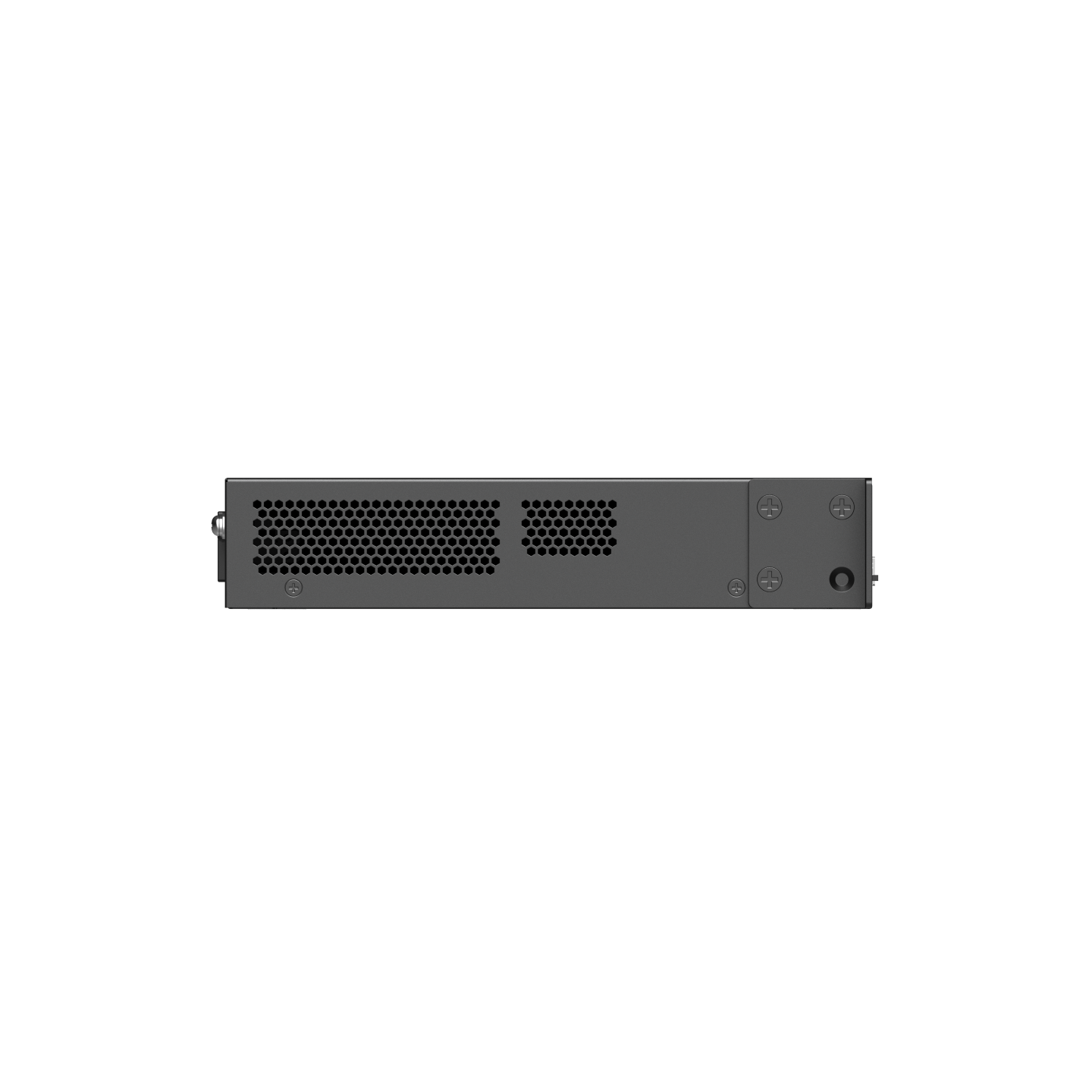

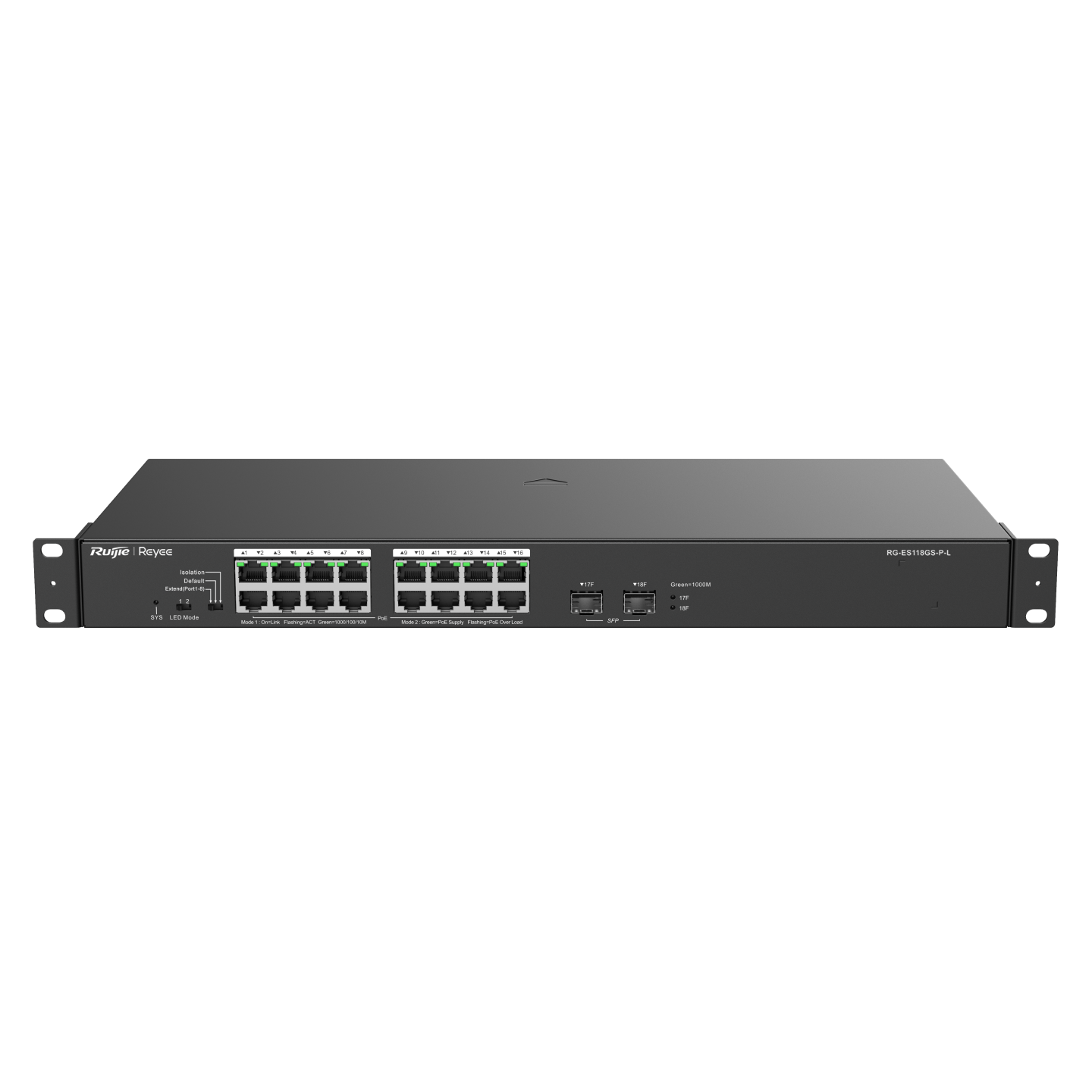

ruijie reyee RG-ES118GS-P-L, 18-Port 10/100/1000 Mbps Unmanaged PoE Switch
16-Port 1000Mbps + 2 Gigabit SFP Ports, 16 of the ports support PoE/PoE+ power supply. Max PoE power budget is 247W, Steel Case
$185.92
| Product Information | Details |
| 📋 Hardware Specifications | |
| Warranty | 1 year |
| 🔌 Port Specifications | |
| Total number of RJ45 ports | 16 |
| Total number of optical ports | 2 |
| Number of 1GE SFP ports | 2 |
| Number of 10/100/1000BASE-T ports | 18 |
| 🔋 Power Supply and Consumption | |
| Number of PoE Out ports | 16 |
| Number of PoE/PoE+ Out ports | 16 |
| PoE budget | 247 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| ⚡ System Specifications | |
| Forwarding rate | 26.8 Mpps |
| Switching capacity | 36 Gbps (bit/s) |
| 🌱 Environment and Reliability | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| ⚙️ Software Specifications | |
| PoE watchdog | Yes |
| Port isolation | Yes |
